Paper Feed, Transport, Output
J007/J010/J011 6-28 SM

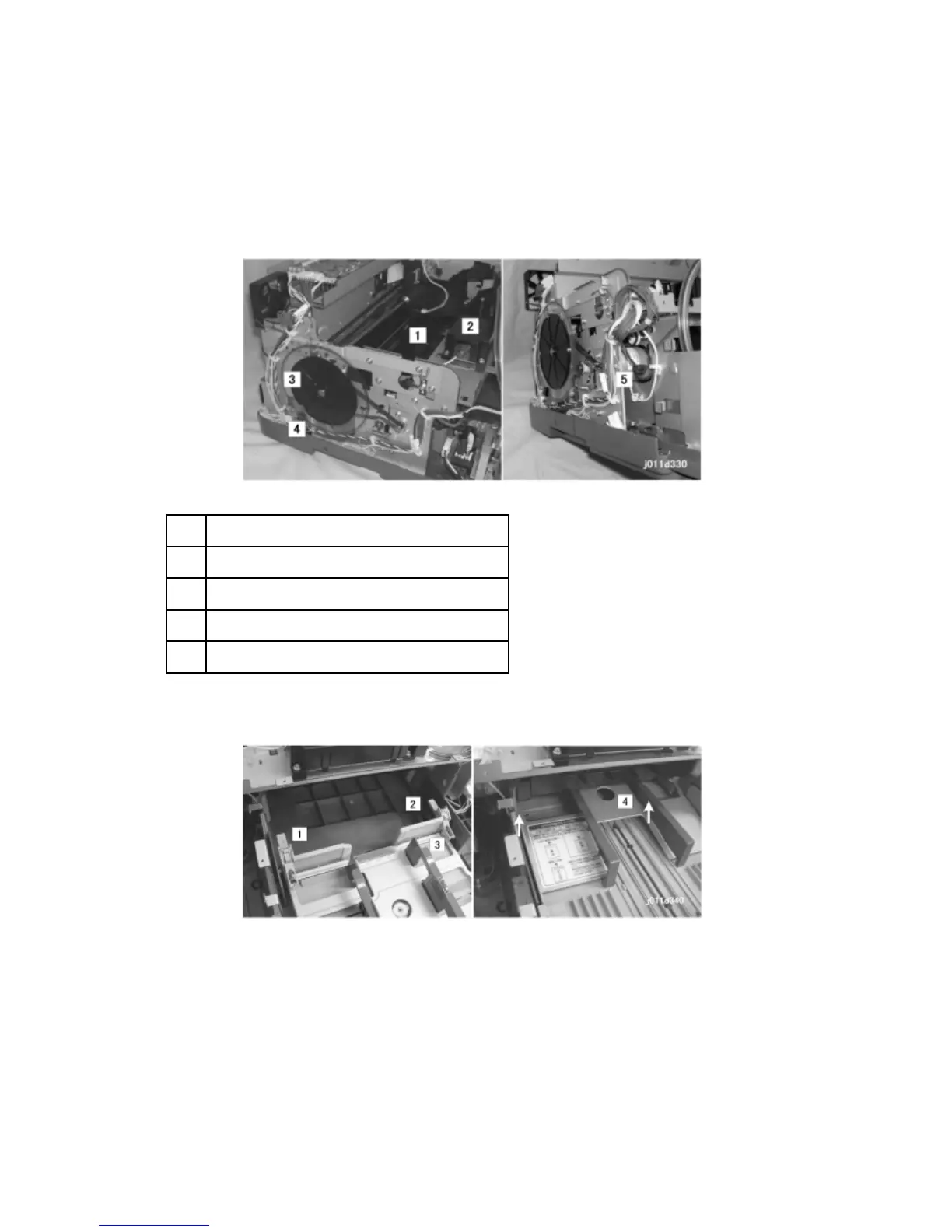

6.6 PAPER FEED, TRANSPORT, OUTPUT
6.6.1 OVERVIEW
1 Transport Belt Unit
2 HVPS (High Voltage Power Supply)
3 Vertical Encoder
4 Vertical Encoder Sensor
5 Vertical Motor
6.6.2 CASSETTE LOCK/RELEASE
The arms [1] and [2] on both sides of the cassette [3] (guided by rails slanting upward )
raise the bottom plate [4] when the paper cassette is pushed into the printer. This raises
the paper in the cassette to the correct height for paper feed.
