Installation Procedure

SM 1-17 J007/J010/J011

J007/J010/

J011

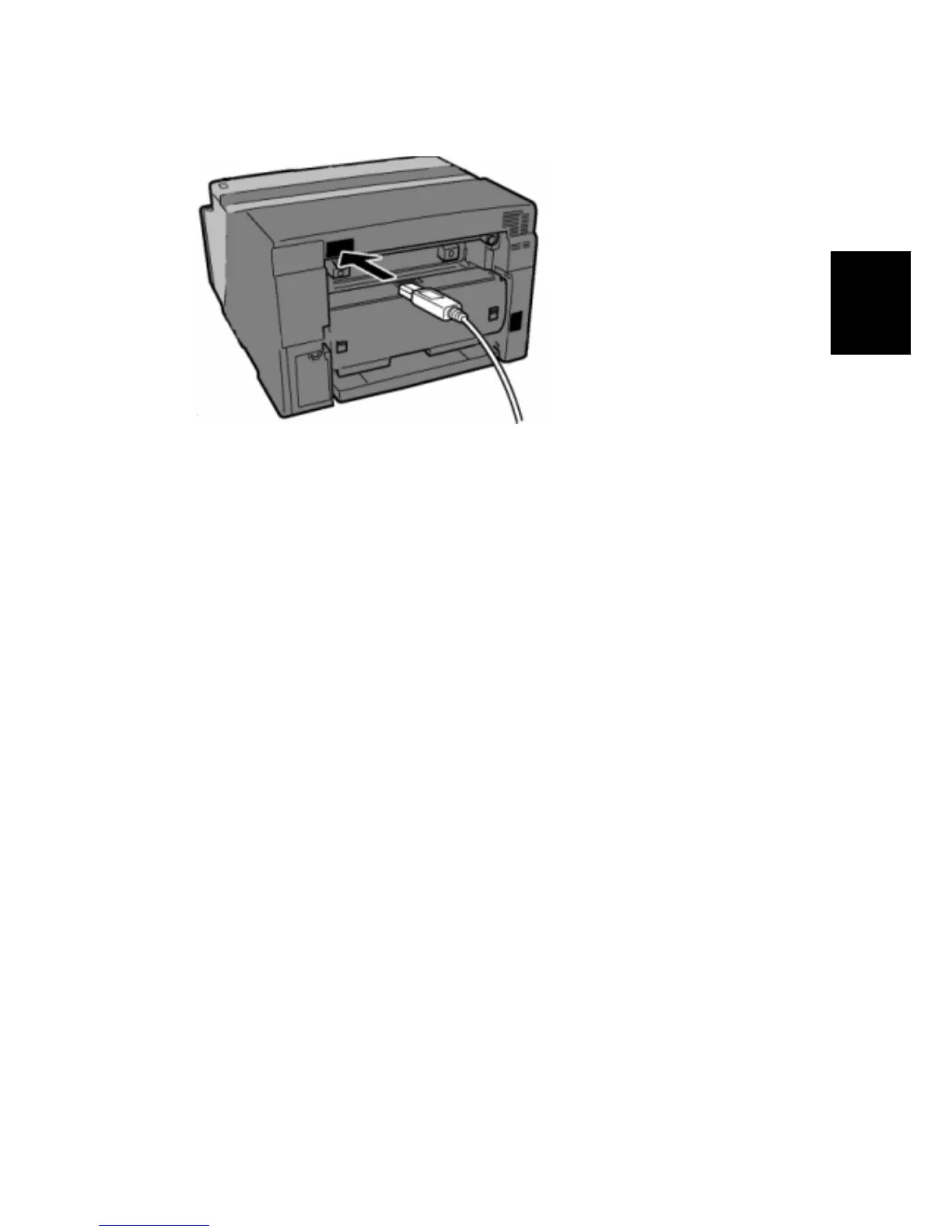

4. Connect the Type B (hexagonal) connector of the USB cable [A] to the

connection point on the back of the printer.

5. Connect the Type A (rectangular) connector of the USB cable into the PC.

1.3.8 CLEAN THE PRINT HEADS AND DO A TEST PRINT

To clean all the print heads

1. Push [Menu], select "Maintenance", and push [#Enter].

2. Select "Head-cleaning" and push [#Enter].

3. Push [Online] to return to standby mode.

To print a Nozzle Check Pattern

1. Push [Menu], select "Maintenance", and push [#Enter].

2. Select "Nozzle Check" and push[#Enter].

3. Push [Online] to return to standby mode.

4. Check the four ladder patterns of the Nozzle Check Pattern.
