Electrical Component Functions
SM 6-35 J007/J010/J011
J007/J010/
J011

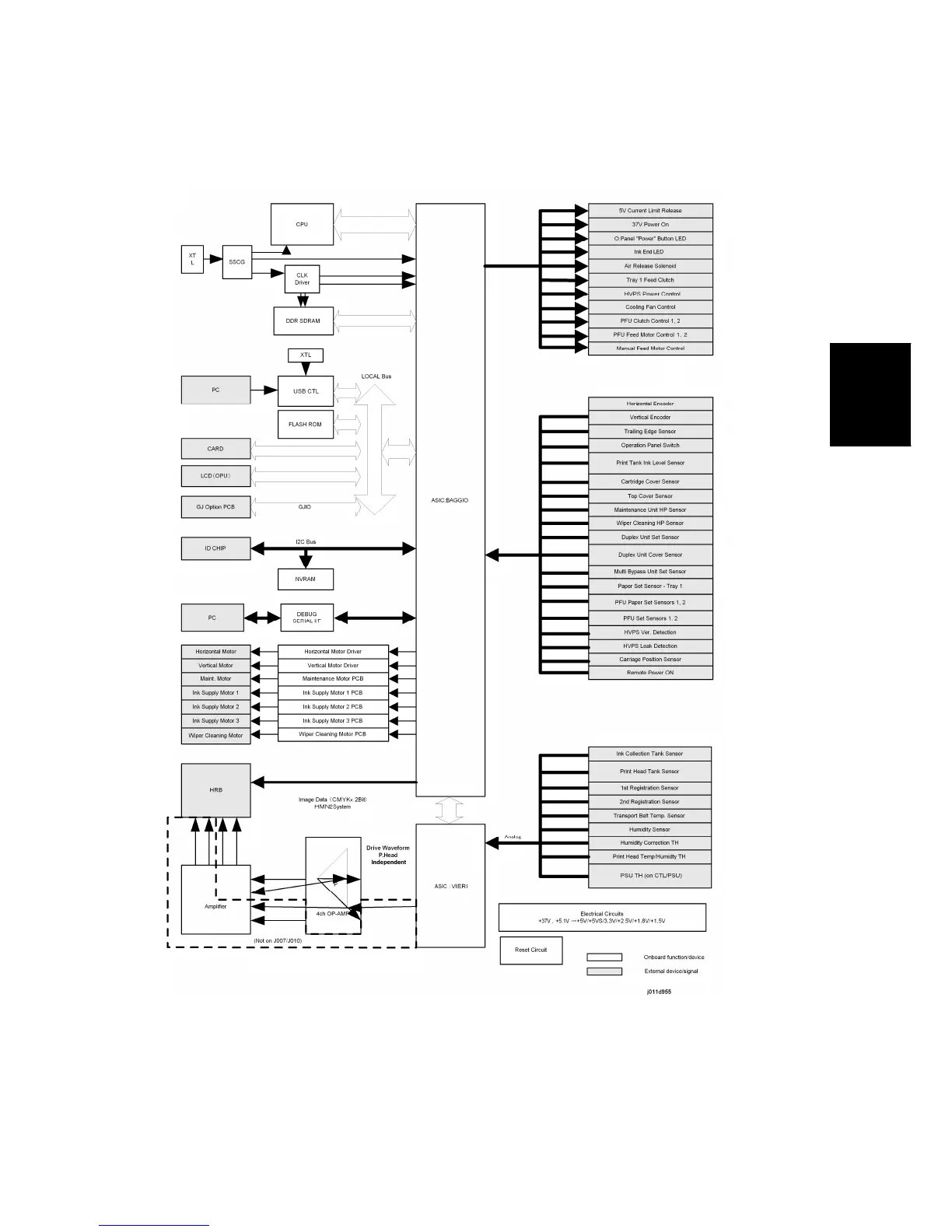

6.7.2 CONTROL BOARD
The control board exerts overall control of the machine, including
Image data processing
Interface management: USB and all the other boards
Controls all sensors, and motors for all I/O devices
