INK SUPPLY UNIT
SM 6-15 J001/J003
Detailed
Descriptions
6.4.3 PRINT CARTRIDGE SET SENSOR
Four micro switches detect the Print cartridges. These are connected in series

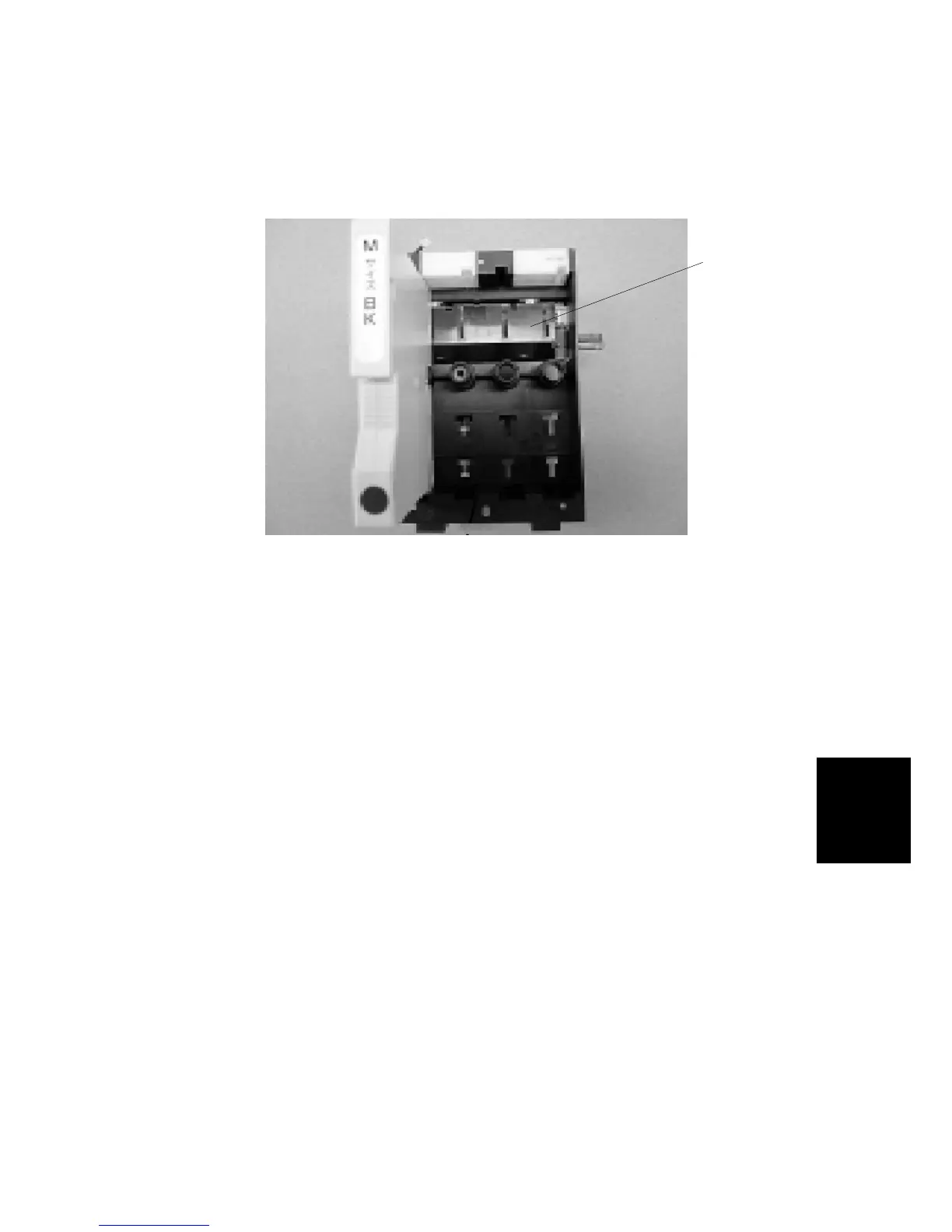

above the cartridge set detection plate [A].
Each tank has a micro switch. The machine cannot specifically detect if an
individual Print cartridge is not set correctly. The open switch signals these:
• A cartridge is not in the machine
• A cartridge is not installed correctly
To solve this problem, you must open the Print cartridge cover. At this time you can
check these:
• All cartridges are in the machine
• All cartridges are installed correctly
