Ricoh J011 User Manual

BASIC REMOVAL PROCEDURES
J001/J003 3-6 SM

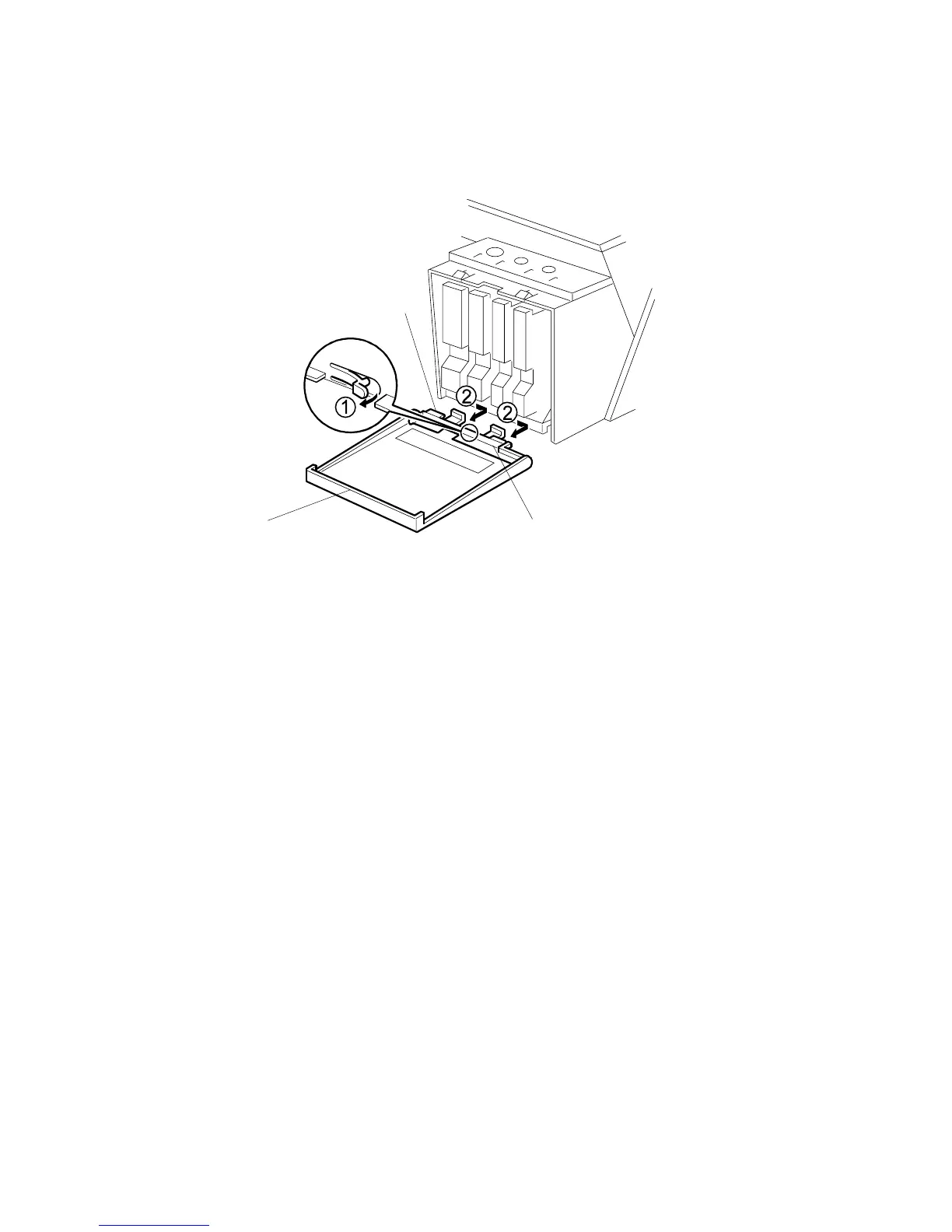

3.2.5 RIGHT FRONT DOOR
1. Lower the right front door [A].
2. Move the cover to the right | and detach it while gently pulling the tab {
toward you.
Reinstallation
• Insert the left tab [C] into its hole. Then move the door to the left.
• Press down tab {.
• Make sure that tab { is down and locked.
G707R906.WMF
[A]
[B]
[C]
CÓPIA NÃO CONTROLADA
CÓPIA NÃO CONTROLADA
