Removing the Covers
J007/J010/J011 3-14 SM

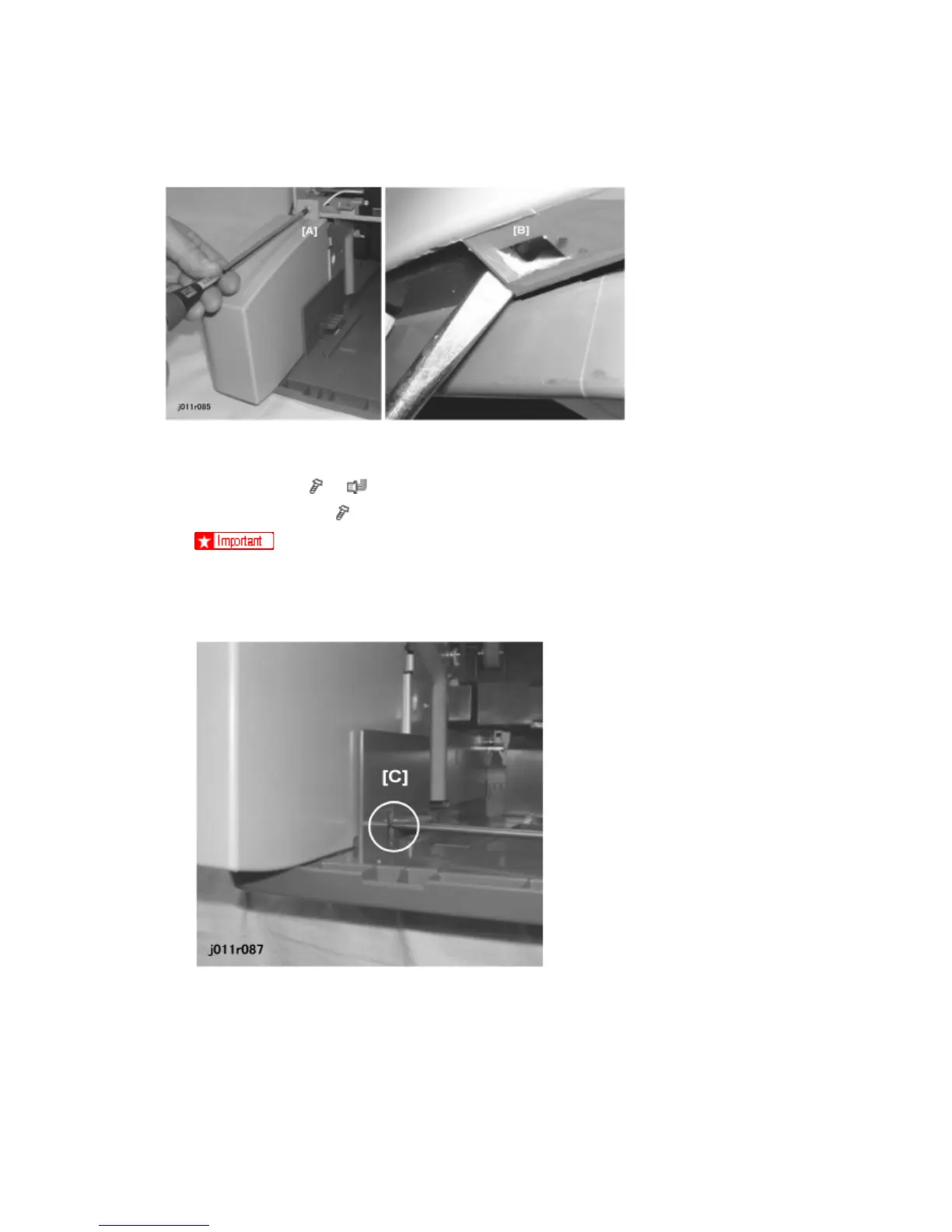

3.3.8 LEFT FRONT COVER
1. Remove:
Ink cartridge cover.
Front cover (
x2, x1)
2. Remove screw [A] (
x1)
One tab slot is on the front bottom edge of the left front cover.
To avoid breaking the slot, use the head of a small screw to disengage the
slot as you gently pull and rock the cover forward.
3. Insert the head of a small screwdriver into the hole [C] and push down the pawl
to disconnect it.
4. Rotate the left front cover down and toward you to remove it.
