Transport Belt Charge Adjustments

SM 4-41 J007/J010/J011

J007/010/

J011

Example 2: Mj4 and Humidity Is Less Than 10%

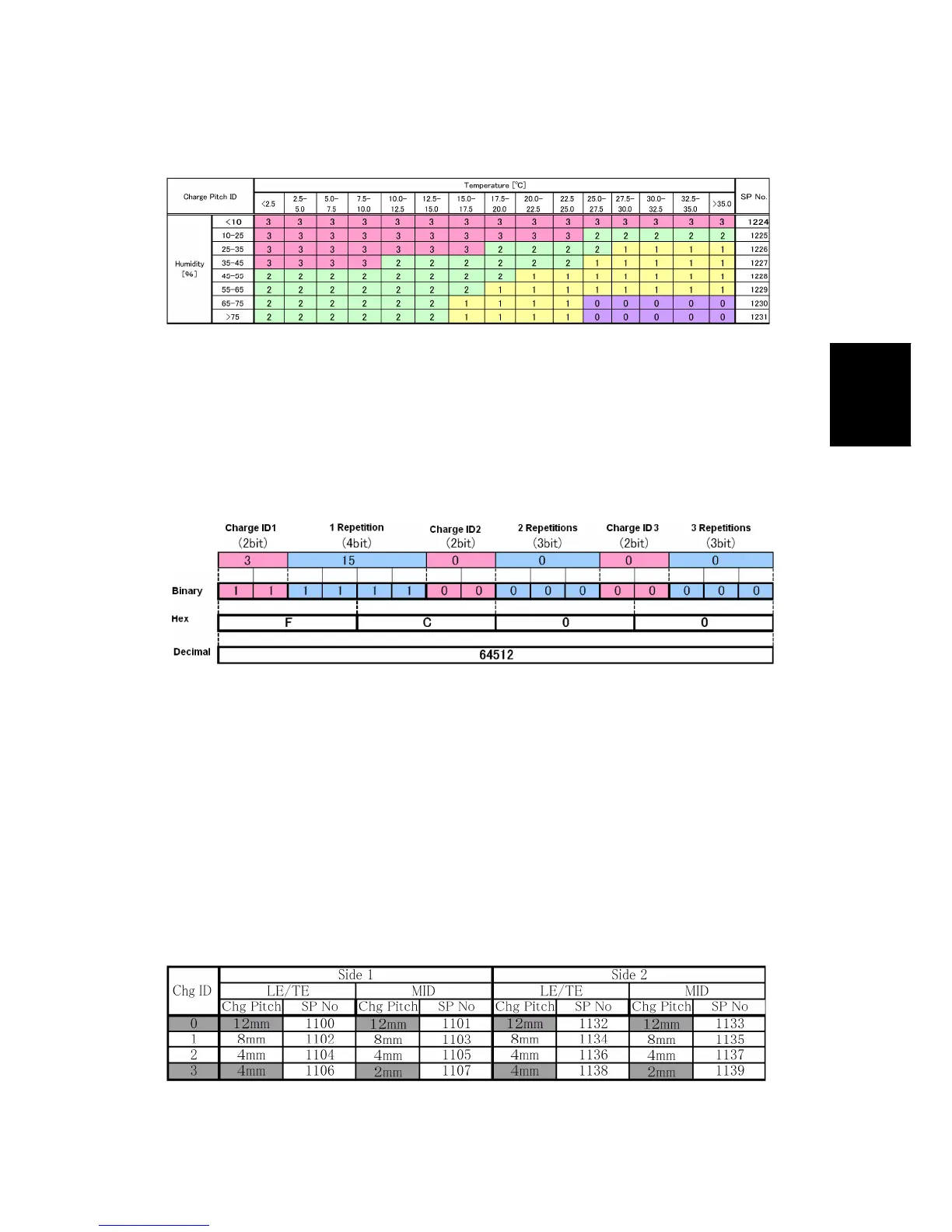

Table 3-10b Mj4 Temperature/Humidity Table (Bold Text Shows Row for <10%)

**T923

Reading this line from left to right we count 15 repetitions for "3" and the table below how

shows how the firmware calculates the actual value of the setting. The count for Charge

ID1 exceeds 15 counts for the remaining IDs are set to "0".

The firmware takes the number of times the each ID is repeated and converts this reading

first to binary, hexadecimal, and then finally to decimal to determine the actual value of the

setting that will be used.

**T924

In the table above we can see that the hexadecimal value "FC00" converts to decimal

"64512" so this means that SP1224 is set to "64512".

4.6.4 CHARGE PITCH TABLE

The variables that determine which value is retrieved from the Charge Pitch Table are 1)

the ID determined with the Temperature/Humidity Table, 2) the the paper type, 3) whether

printing will be done on Side 1 or Side 2.

The tables below are the Charge Pitch Tables stored in NVRAM before the printer is

shipped from the factory.

J011

Print Drive Wave Form: Mj1

CÓPIA NÃO CONTROLADA
