When a charge leak is detected:
The voltage supply from the power pack [1] gets interrupted immediately
The printer stops the current print job in progress.
The carriage goes back to its home position.
The print heads gets capped. The printer cannot operate.
To restore the printer to normal operation:
Remove the cause of the leak.
Turn the printer off and on.
6.6.9 COOLING FAN

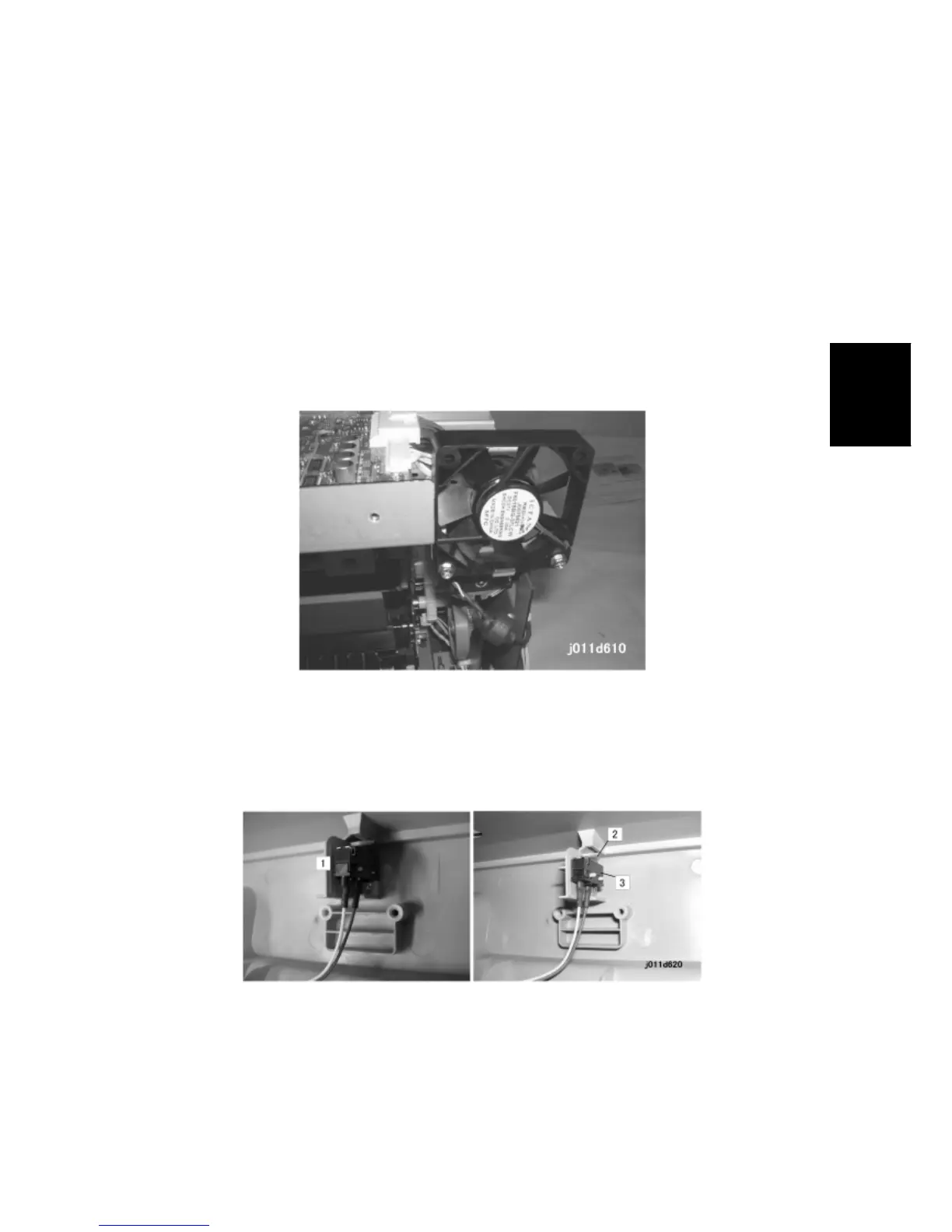

The fan mounted behind the ventilation slots on the left rear corner of the printer draws hot
air out of the printer and blows it out of the machine through the ventilation slots. This
prevents a temperature rise inside the printer.
6.6.10 TOP COVER SWITCH
The cover open sensor [1] is mounted inside the front cover.
A plastic tab under the top cover depresses a feeler [2] which activates the top cover
sensor [3]. This tells the printer that the top cover is closed.
The printer will not operate until the top cover is closed and this sensor has been activated.
