Important Parts
J007/J010/J011 6-2 SM
A4 or LTR size paper.
7. Output tray
Holds paper that has exited the printer after a print job. Pull out the output tray
extension when you print on paper longer than A4 or LTR.

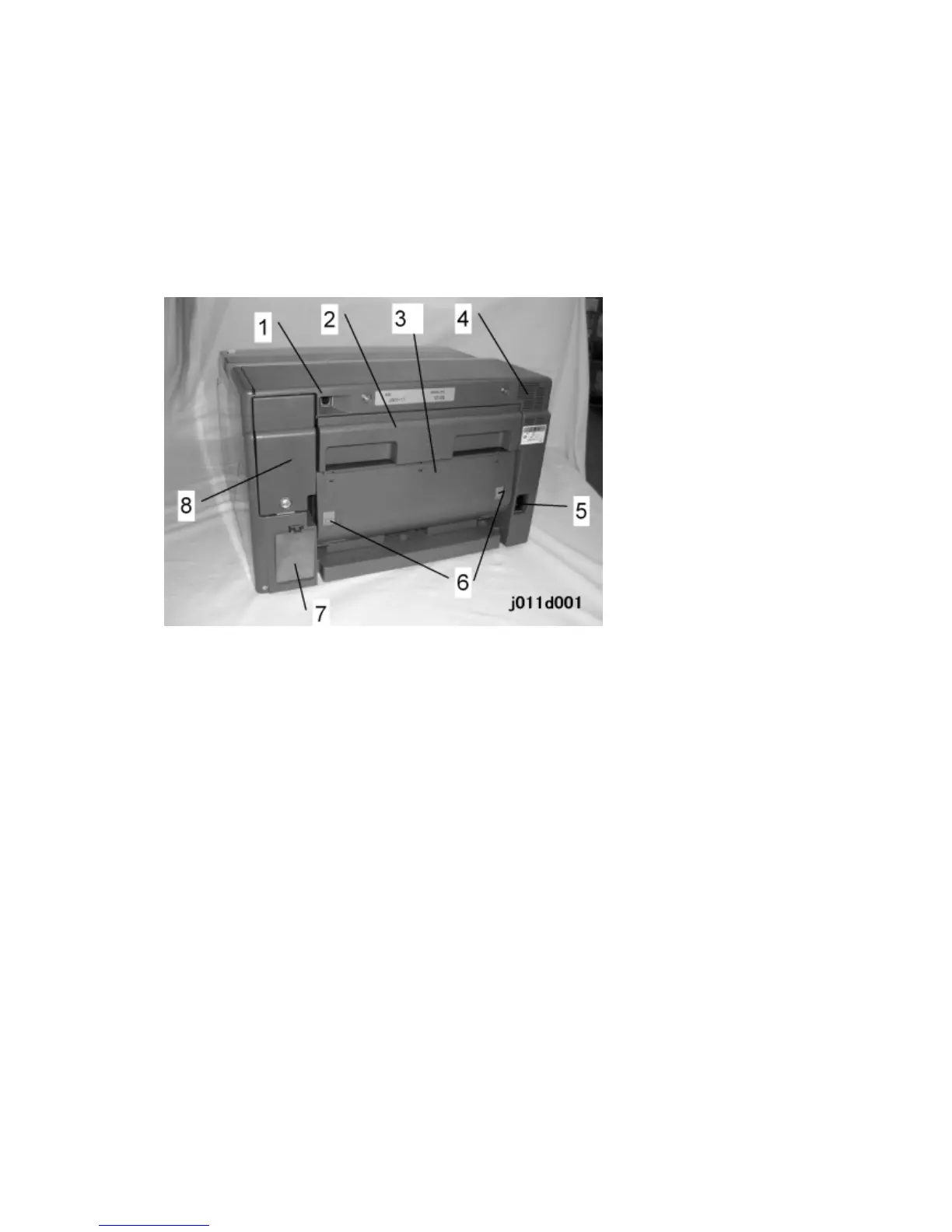

6.1.2 REAR VIEW
1. USB connection point
Connect the USB cable to the printer at this area. Connect the other end to the PC.
2. Guide plate
Pull out to remove jammed paper.
3. Duplex Unit
Takes paper just printed on the front side. Then it reverses the paper. Then it feeds it
into the printer again. Then the paper gets printed on the backside.
4. Ventilation port
A cooling fan behind this port blows hot air out of the printer to cool it. Never let this
vent get blocked. Too much heat inside the printer could damage its electrical
components
5. Power connector
Use only the power cord provided with the printer. Make sure you ground (earth) the
head of the plug at the power source.
The detachable power cord is provided with the EU model only.
The power cord of the NA model is permanently attached.
6. Duplex unit locks
Raise both of this tabs to release the duplex unit so it can be removed. Be sure to
