DETAILS
J006 22 SM
6.4 CASSETTE LOCK/RELEASE
J001/J003 Manual Reference
6.7.2 Cassette Lock/Release
Comment
The paper cassette lock/release mechanisms of the paper
cassettes have been simplified.

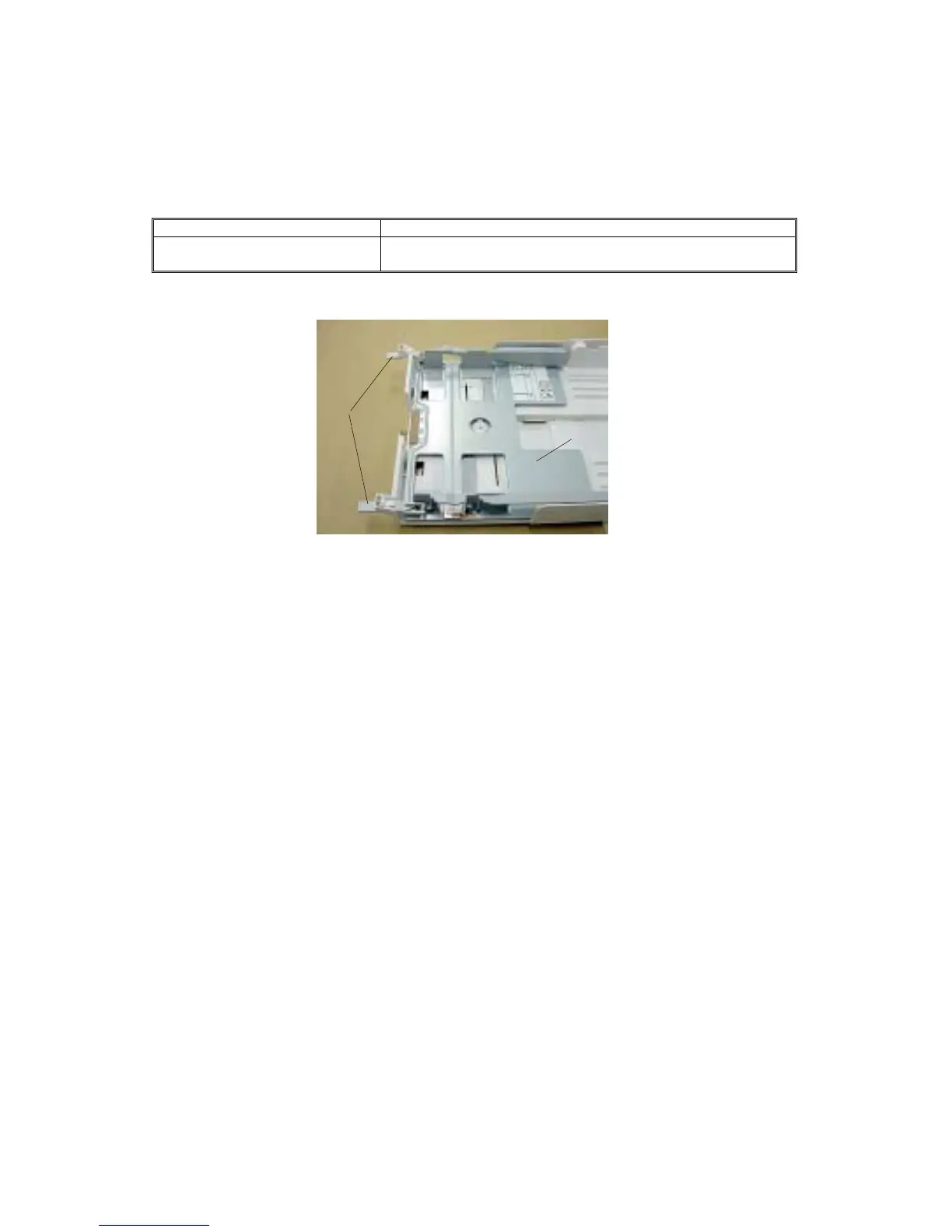

Cassette arms [A] on both sides of the cassette are guided into rails when the
paper cassette [B] is pushed into the printer. The rails raise the arms to the correct
height for paper feed.
The release lever and release arm of the previous models have been eliminated.
[A]
[B]
To Next Page
