7.4.3 PAPER TRAY (OPTION)

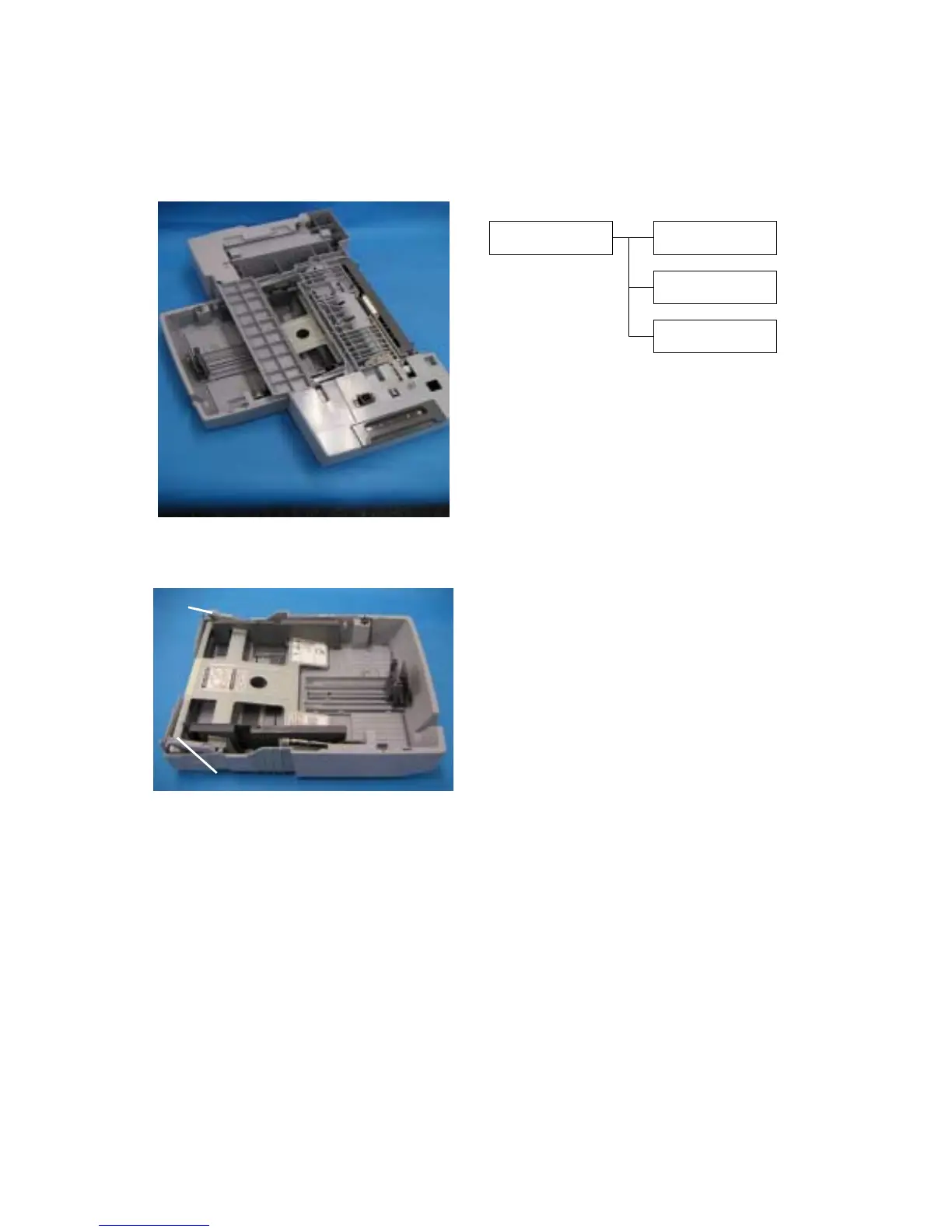

Paper Tray Components
When the 500-sheet Paper Tray is
pushed in the printer, the cassette arms
[A] on both sides of the cassette are
guided into rails. This raises the arms
bottom plate to bring the paper stack to
the correct height for paper feed.
Tray Unit Paper Cassette
Drive Unit
Control Board
PAPERTRAY.W MF
[A]
[A]
