WASTE INK UNIT
SM 3-13 J001/J003
Replacement
Adjustment

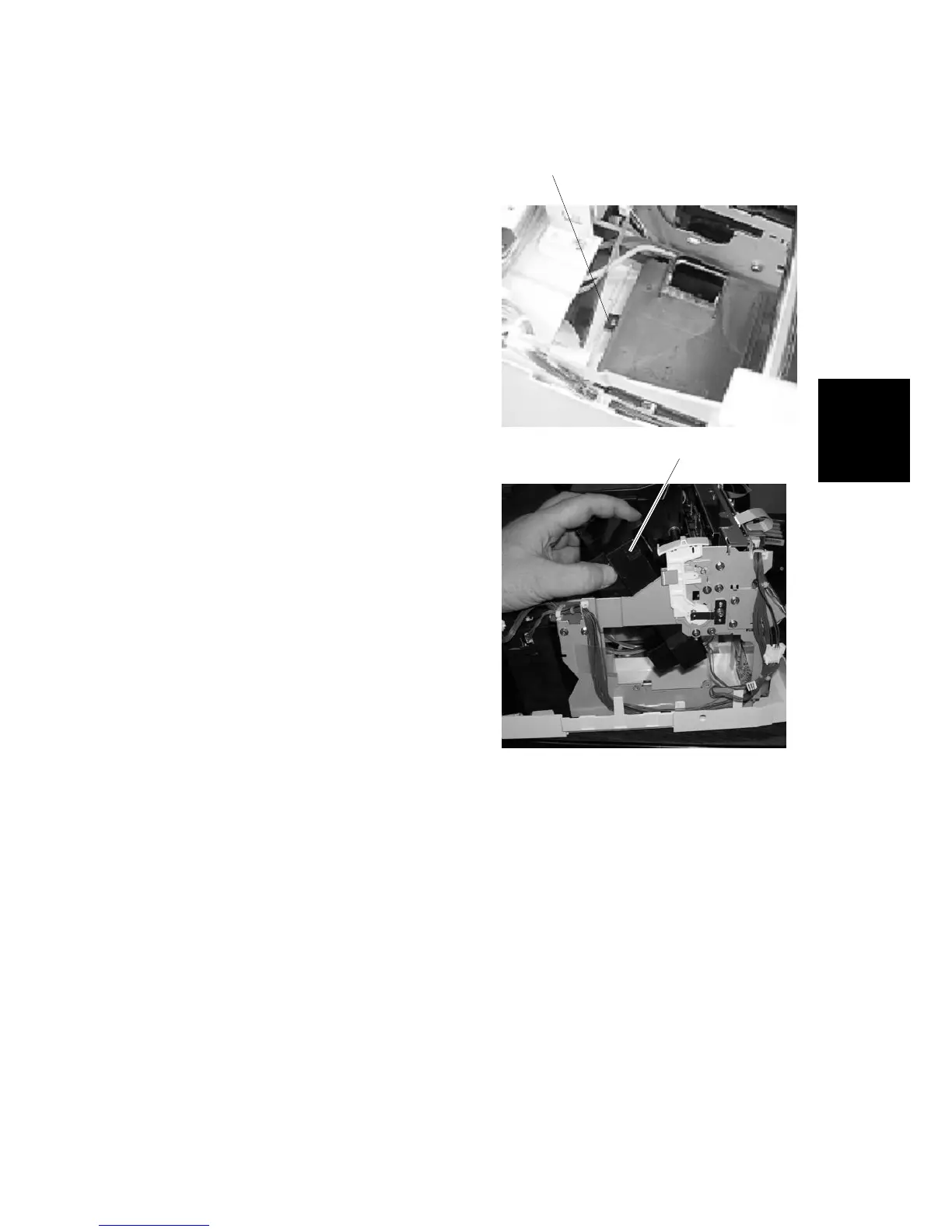

3.5 WASTE INK UNIT
1. Remove the maintenance unit (3.4)
2. Disconnect the front tab ( x 1)
3. At the time you pull the waste ink unit
[A] forward, raise it to about a 45
angle. Then remove it from the printer.
NOTE: Do not remove the waste ink
unit through the side of the printer
frame.
[A]
[
To Next Page
