TRANSPORT BELT
SM 2-9 J001/J003
Preventive
Maintenance
2.5 TRANSPORT BELT
1. Do this if the duplex unit is installed:
• Raise the levers on both ends of the unit. Then remove it from the back of
the printer.
2. Remove the rear cover ( x 2).

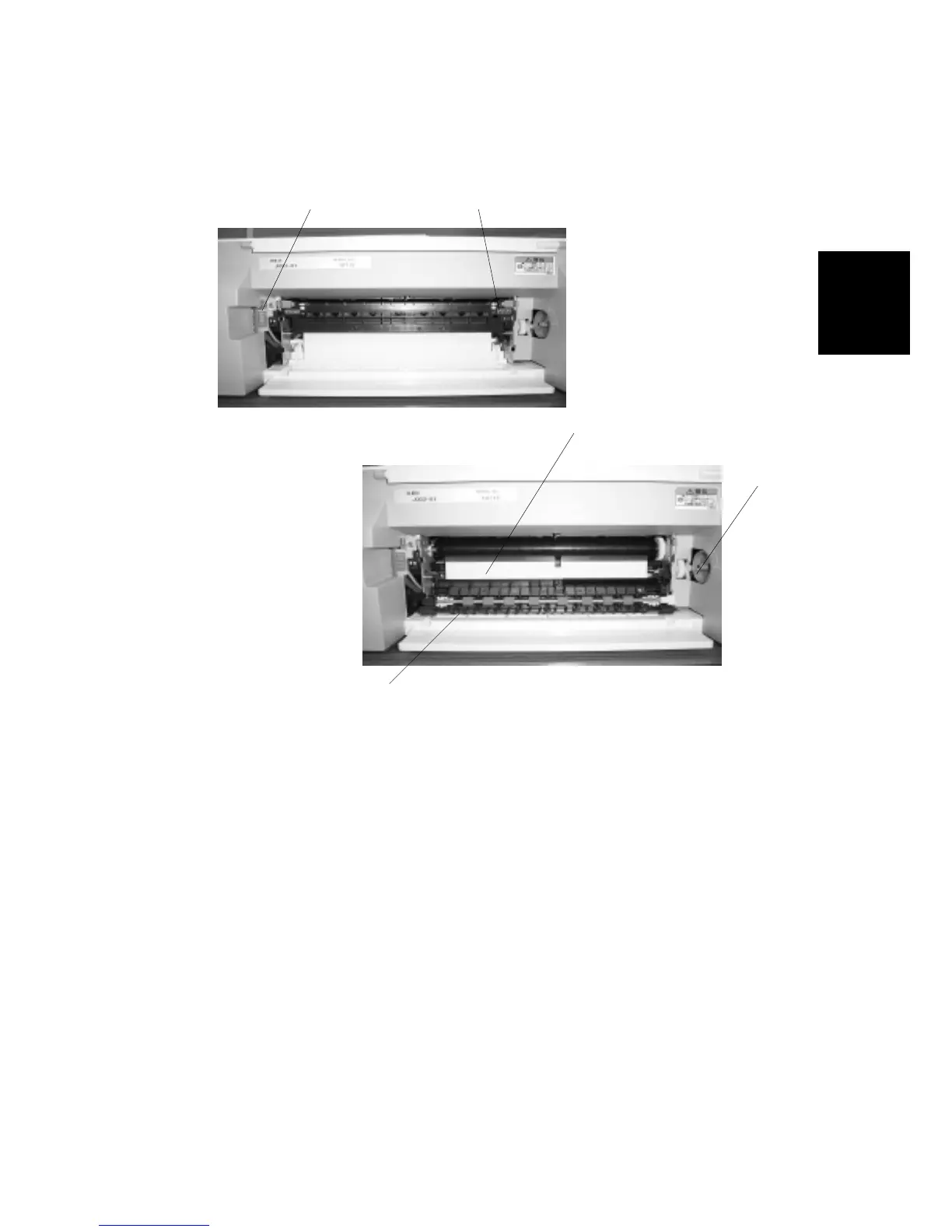

3. Release the left lock [A] and right lock [B] of the reverse guide plate.
4. Open and lower the reverse guide plate [C].
5. Use a damp cloth to wipe clean the surface of the transport belt [D]. Then clean
the belt with a dry cloth.
6. Use the feed guide [E] to rotate the transport belt as you clean. This procedure
lets you clean the entire surface of the belt.
7. Make sure the surface of the belt is completely dry.
Important: Water on the surface of the transport belt could interfere with the
operation of the printer.
