3.6.2 HIGH VOLTAGE POWER SUPPLY BOARD
Remove these:
• Duplex unit (3.2.1)
• Top cover (3.2.4)
• Front cover, left cover, right cover (3.2.7)

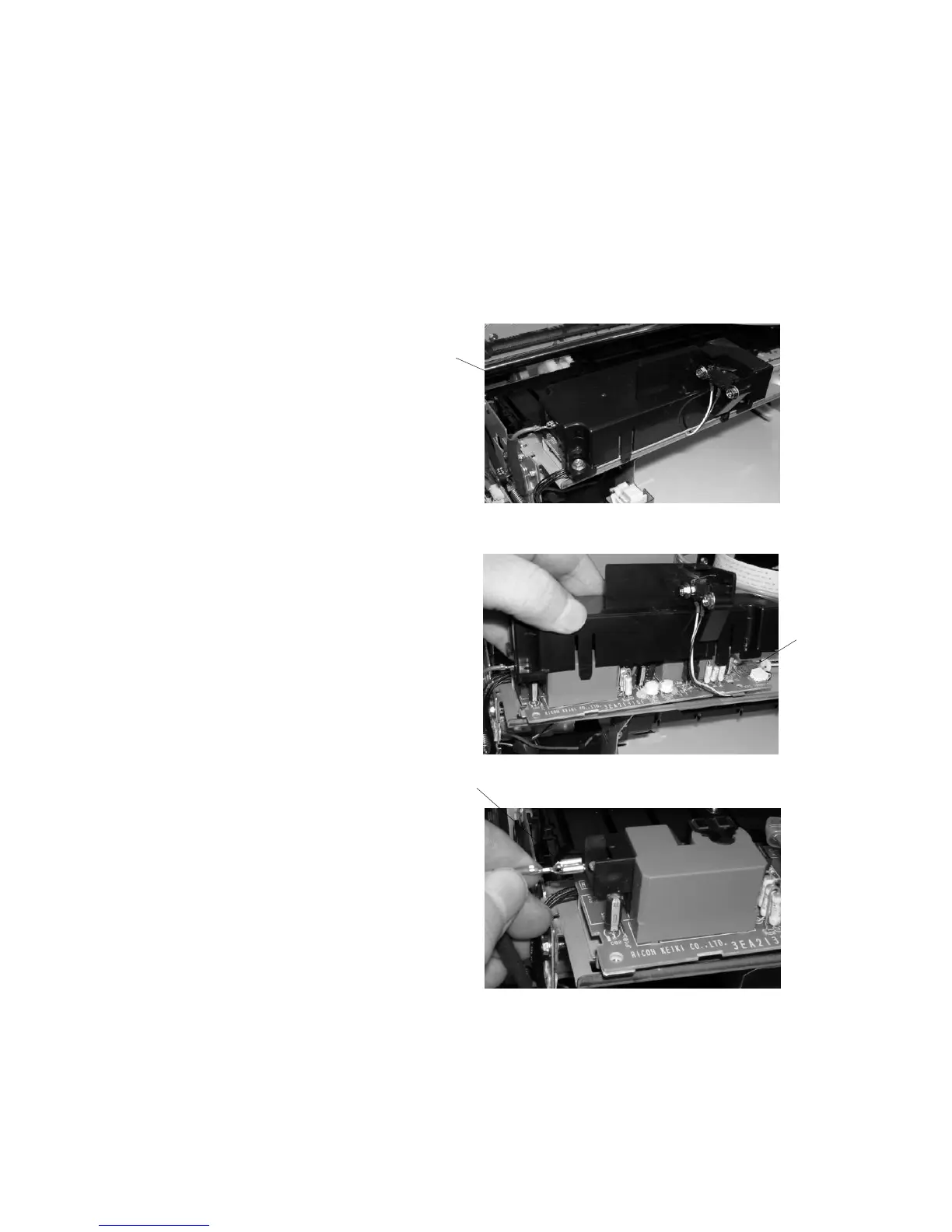

[A]: Cover ( x 4, tabs x 4)
[B]: Right connectors ( x 3)
[C]: Left bayonet connector ( x 1)
NOTE: Press up gently as you pull
if the bayonet is difficult to
disconnect.
[A]
[B]
[C]
