BASIC REMOVAL PROCEDURES
SM 3-3 J001/J003
Replacement
Adjustment

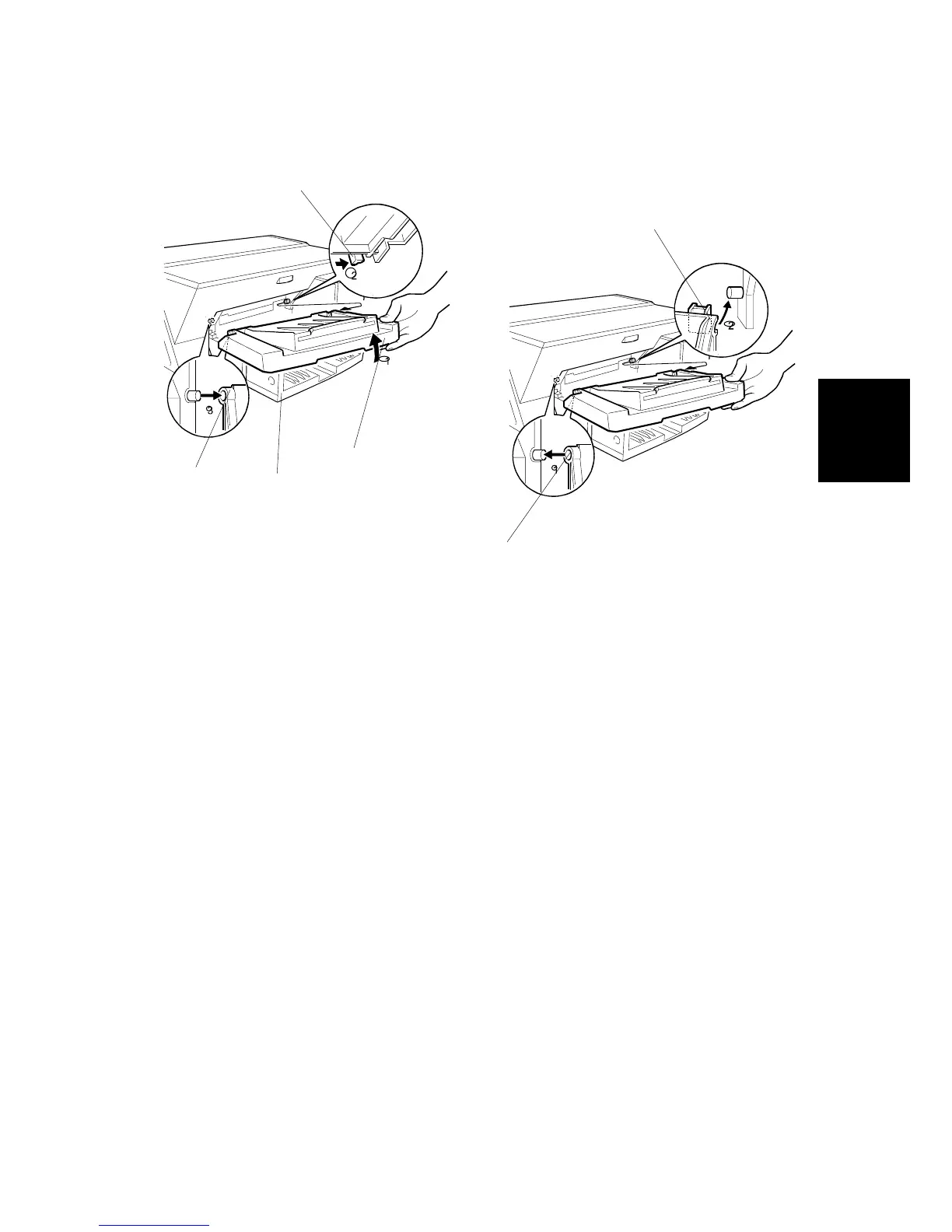

3.2.2 DETACHING AND REATTACHING OUTPUT TRAY
To detach the output tray:
1. Raise the output tray [A].
2. Pull out the paper cassette [B] until it stops.
3. At the right corner of the output tray, pull the release lever [C] to the left to
release it. Then pull the right corner slightly toward you to disconnect it.
4. With the right corner free, detach the left corner [D].
To reattach the output tray:
• Set the left corner [D] of the output tray first. Then set the right corner [E].
G707R902.WMF
G707R903.WMF
[A]
[C]
[C]
[E]
[D]
[B]
To Next Page
