Ink Supply System
SM 6-15 J007/J010/J011
J007/J010/
J011
signals when:
A cartridge is not in the machine
A cartridge is not installed correctly
To solve this problem, the operator must open the ink cartridge cover and confirm
whether:
A cartridge is not in the machine
A cartridge is not installed properly

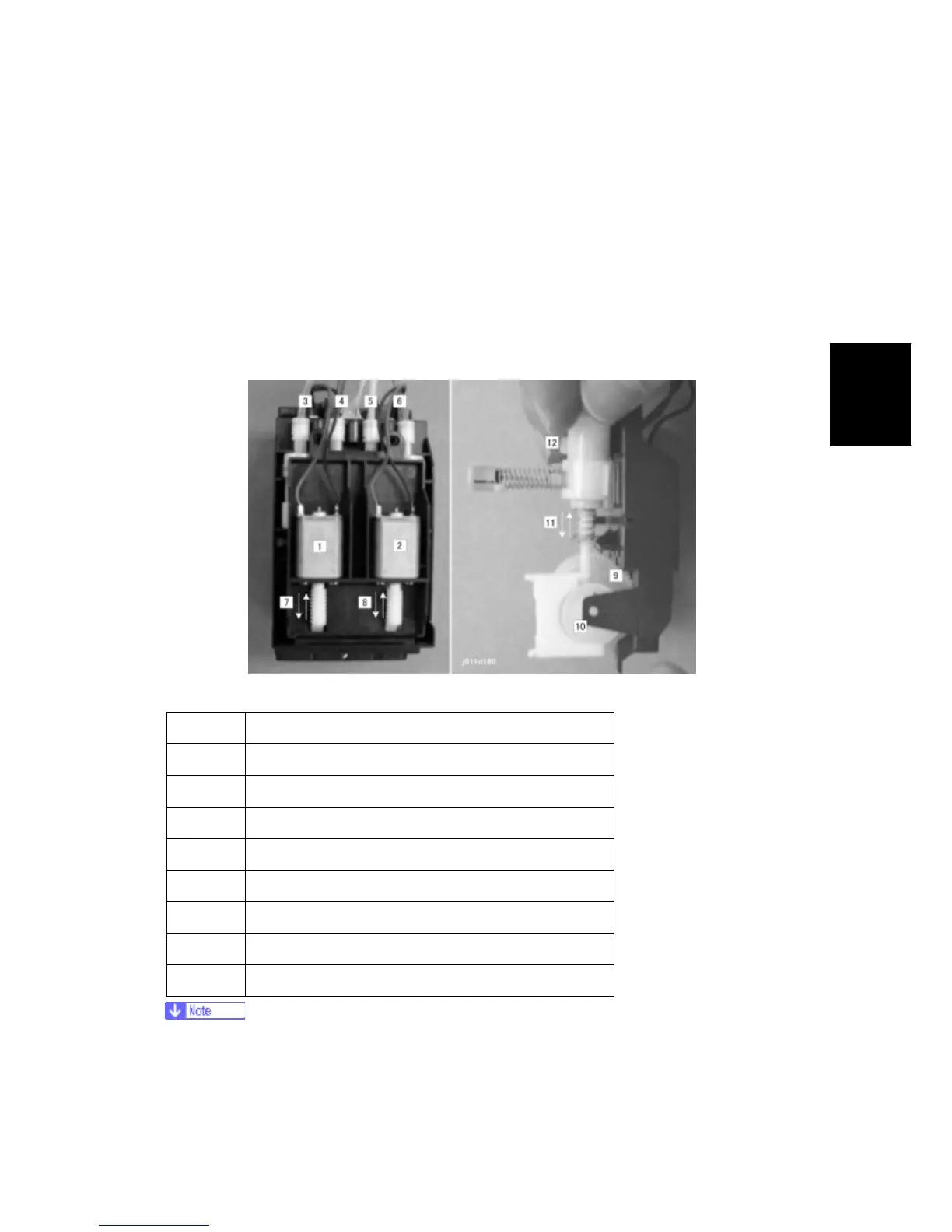

6.4.4 INK PUMPS
1 Ink Pump Motor 1
2 Ink Pump Motor 2
3 to 6 Ink Supply Tubes for Y, M, C, K ink.
7 Worm Gear (1st supply motor)
8 Worm Gear (2nd supply motor)
9 Gear
10 Cam
11 Plunger
12 Pump
The J011 has three ink pump motors. For more details about the differences in
the configurations of the J007/J010 and J011, please refer to the next section.
The ink supply pump is divided into two compartments:
