Component Removal
SM 3-31 J007/J010/J011
J007/J010/
J011

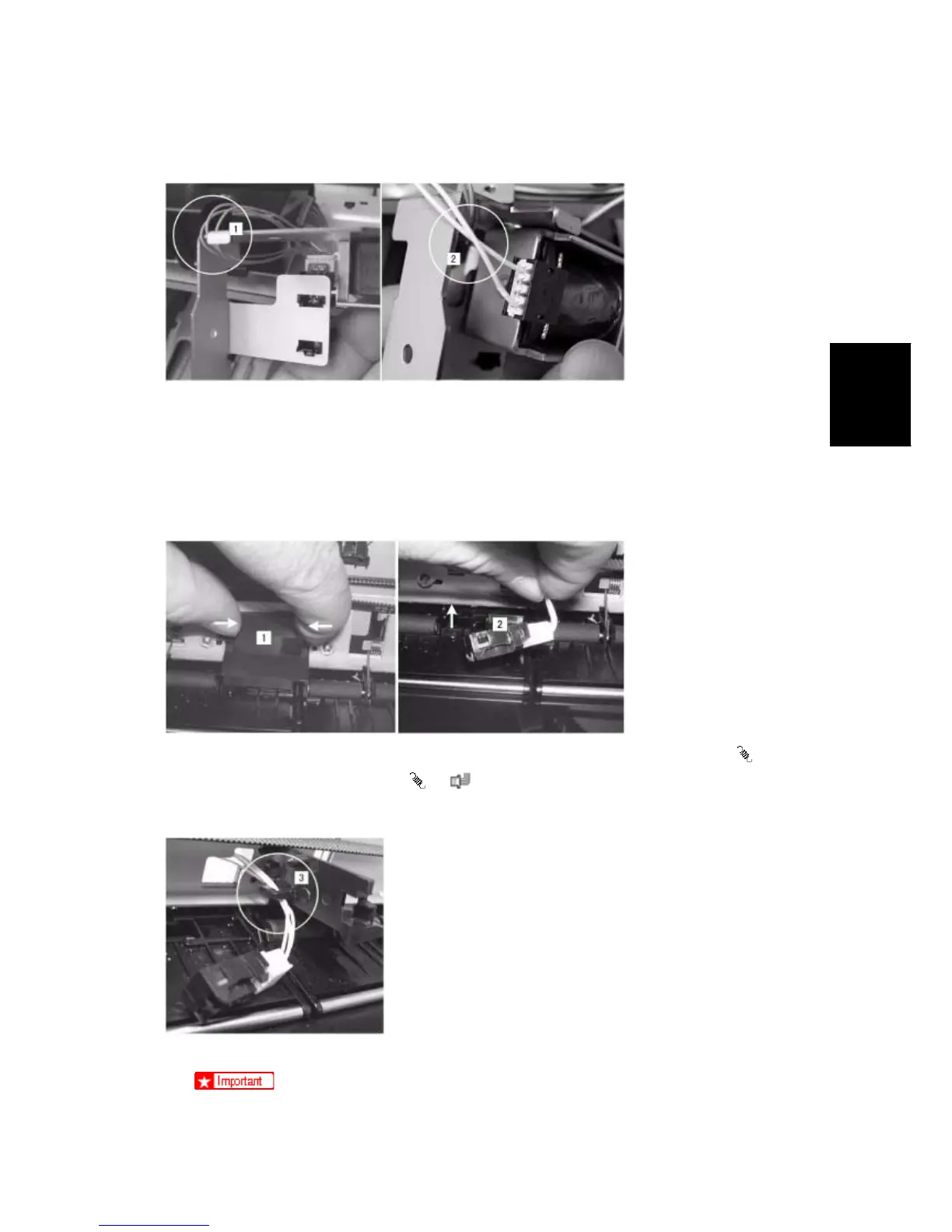

Reassembly
1. Make sure that the harnesses are positioned correctly before you reconnect the
solenoid.
[1] Ink level sensor harness
[2] Air release solenoid harness
3.4.15 2ND REGISTRATION SENSOR
1. Pinch the sides of the cover [1] to release its pawls and remove the cover (
x2
2. Remove the photosensor [2] (
x2, x1)
Reassembly
1. Set the harness in the bracket of the cover before reattaching the sensor.
To Next Page
