Cleaning Procedures
SM 3-35 J007/J010/J011
J007/J010/
J011

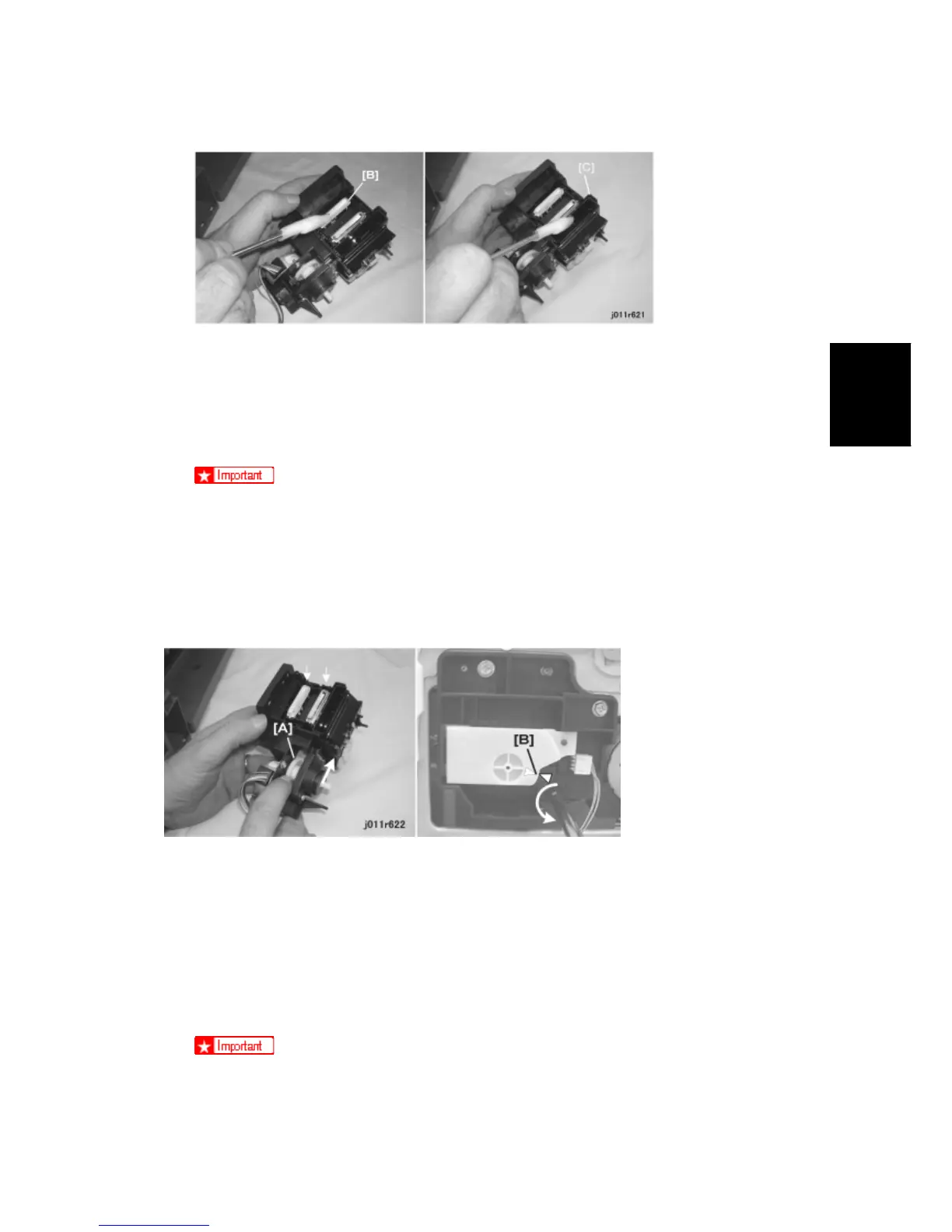

3. Wrap the tip of screwdriver or similar tool with a damp cloth.
4. Use the wrapped tip of the screwdriver to clean inside and around the caps [B]
to remove hardened ink.
5. Turn the gear until the cleaning blade opens, then clean the right air vent and
wiper blade [C] blade.
Always wrap the tip of the tool with a damp cloth to prevent scratching the
suction cup.
A scratched suction cup could cause poor print quality.
3.5.5 PRINT HEAD CLEANING
After Maintenance Unit Cleaning
Do this procedure before you reinstall the maintenance unit:
1. Turn the drive maintenance motor drive gear [A] in the direction of the arrow to
lower the suction cap and wiper blade.
2. Make sure they are at the lowest position.
3. Make sure the triangle marks [B] on the sides of the maintenance unit match.
If the triangle marks are not aligned, use a screwdriver to turn the screw counter-
clockwise until they are aligned.
The tips of the triangles must be aligned before you reinstall the maintenance
unit.
