190
Router Control Menu Operations
Chapter 8 Color Backgrounds, Copy and Swap, and Other Settings
Router Control Menu
Operations
Using the Router >Router Control >Router Control menu,
you can carry out router switching operations.
Checking the List of Inputs for Each
Destination
You can check the list of signals currently input for each
destination.
In the menu control block, press the top menu selection
button [RTR], then select VF1 ‘Router Control’ and HF1
‘Router Control.’

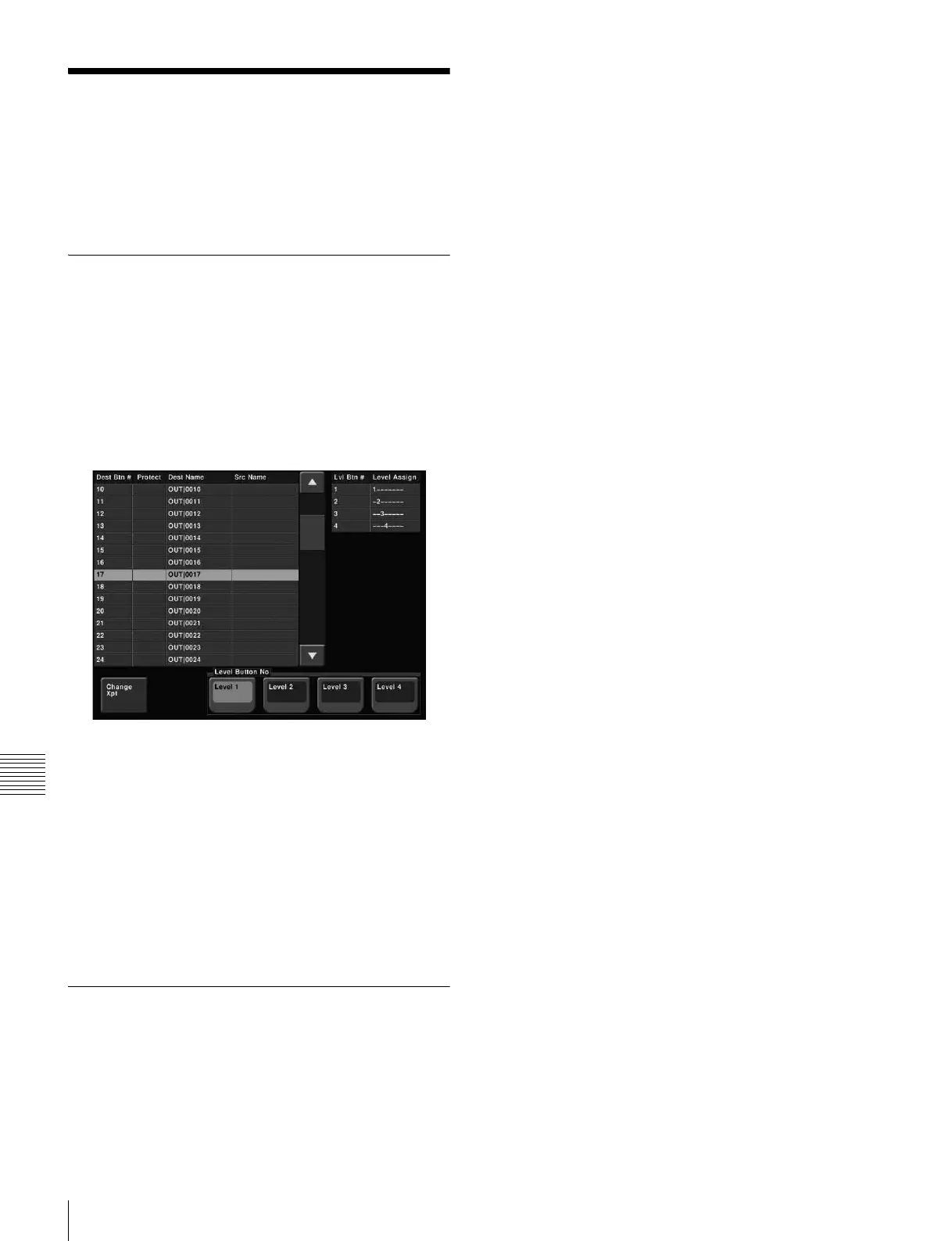

The following menu appears, and the left side of the status
area shows a list for destination assignments.
If in the Assign >RTR Mode Setting menu, [Inhibit] is set
to On for a destination, the corresponding line appears in
gray. Also, if [PROT] (protect) is set to ON for a source,
using a BKSR3xxx or R1xxx series Router remote control,
a padlock icon appears.
The right side of the status area shows the level assignment
status to the Level 1 to Level 4 buttons.
Selecting the level
In the <Level Button No> group at the lower right in the
above illustration, press the selected level for switching.
Switching the Source for Each
Destination
You can switch the source for each destination with a
menu operation.
For the assignment of destinations and sources to buttons,
use the Setup >Panel >Aux Assign >RTR Mode Setting
menu.
For details, see “Using the Auxiliary Bus Control Block
for Router Control” in Chapter 19 (Volume 2).
1
Press [Change Xpt].
The Router >Router Control >Router Control
>Change Xpt menu appears.
Destination Select buttons appear in groups of 16.
Source Select buttons appear by group (maximum 24
buttons).
2
Press one of the Destination Select buttons, to select
the destination for which you want to switch the
source.
To change the group
Press one of the [1-16], [17-32], [33-48], and [49-64]
buttons.
3
Press one of the Source Select buttons, to select the
source you want to switch.
To change the group
Press one of the [1-24], [25-48], ... [97-120], and [121-
128] buttons.
To Next Page
