29
Names and Functions of Parts of the Control Panel
Chapter 2 Menus and Control Panel
a Cross-point buttons
These buttons select the signals used for video creation on
this M/E bank or PGM/PST bank. Each row of buttons
corresponds to one or more signal buses within the
switcher.
Cross-point button numbers
Cross-point button and reentry buttons are respectively
numbered (see page 66).
Assigning signals to button
You can assign a signal to each button using the Setup
menu.
For details on the operation, see “Cross-Point Settings
(Xpt Assign Menu)” in Chapter 19 (Volume 2).
Visual indications on cross-point buttons
For details on the operation, see “Colors of lit cross-point
buttons” (page 67).
b Source name displays
These show the names of the signals which can be selected
on the cross-point buttons, in two or four characters, or in
auto mode.
While the [SHIFT] button or the [SHIFT] button assigned
to the column of cross-point buttons is enabled, the source
name of the signal assigned to the column of cross-point
buttons in shift mode appears. You can select green,
orange, or yellow for the background color of the source
name display, for each source separately. You can set the
source name display mode and background color in a
Setup menu.
c Key row delegation buttons
Use these buttons to assign buses to the key row, copy
keys, or assign DME to keys.
d XPT (cross-point) HOLD button
Turning this button on enables you to recall a keyframe or
snapshot while keeping the current cross-point selection
unchanged.
This function is valid for the background A and B rows.
By means of setup settings, you can also enable this for the
following function blocks.
• Background A and B rows
• Key buses
• Utility 1 and 2 buses
• External DME bus
• DME utility 1 and 2 buses
e SHIFT button
When this button is enabled, either the source name
displays show the shifted signal names, or the shifted
signals for all buses in this M/E (PGM/PST) bank are
enabled.
You can select either mode in a Setup menu.
Each press of the button toggles between the enabled and
disabled states.
Using a Setup menu operation, you can also make this
button function as the [SHIFT] button for the whole cross-
point control block inclusive of the key row and
background A and B rows.
Transition Control Block
In the transition control block, you can modify the output
of the M/E bank or PGM/PST bank, and perform
transitions. Both common transition and independent key
transition operations are possible.

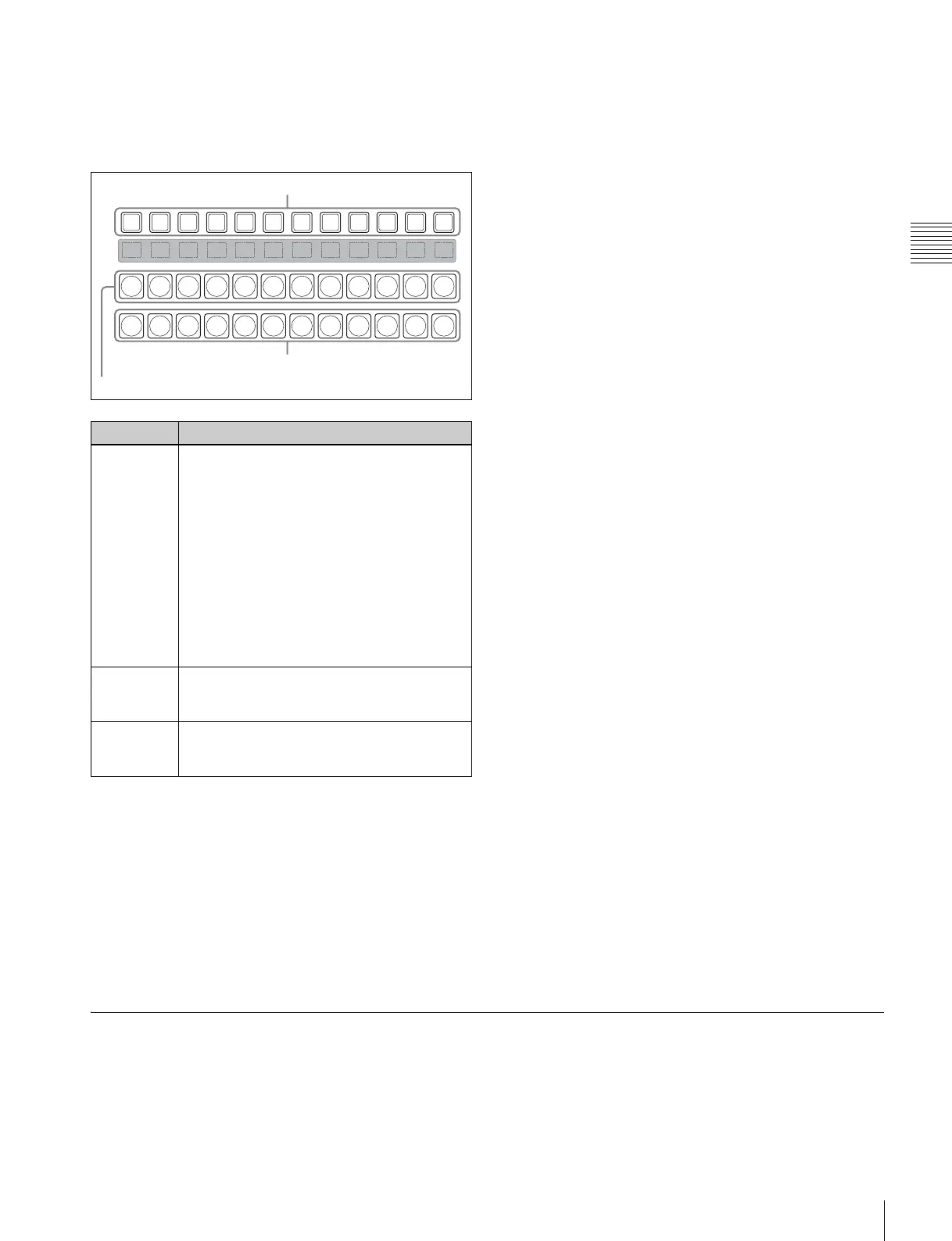

Name Description
Key row • The buttons in this row select the bus
signals specified with the key row
delegation buttons ([DSK1] to [DSK8],
[DME1] to [DME4], [UTIL1], or [UTIL2]) or
delegation buttons in the auxiliary bus
control block.
• The later pressed delegation button takes
precedence and the selection is reflected in
the key row.
For details of DSK5 to DSK8 assignment, see
“Assigning Buttons for Selection of Keys 5 to
8 in the Setup Menu” (page 345) in Appendix.
Background
A row
To select the signal as the current
background video on this M/E bank or PGM/
PST bank.
Background
B row
To select the signal as the background after
the next transition on this M/E bank or PGM/
PST bank.
Key row
Background B row
Background A row
To Next Page
