Snapshot Operations From the Numeric Keypad Control Block
Chapter 14 Snapshots
Snapshot Operations
From the Numeric
Keypad Control Block
Saving and Recalling Snapshots
Snapshot operations with the numeric keypad control
block use the following buttons.

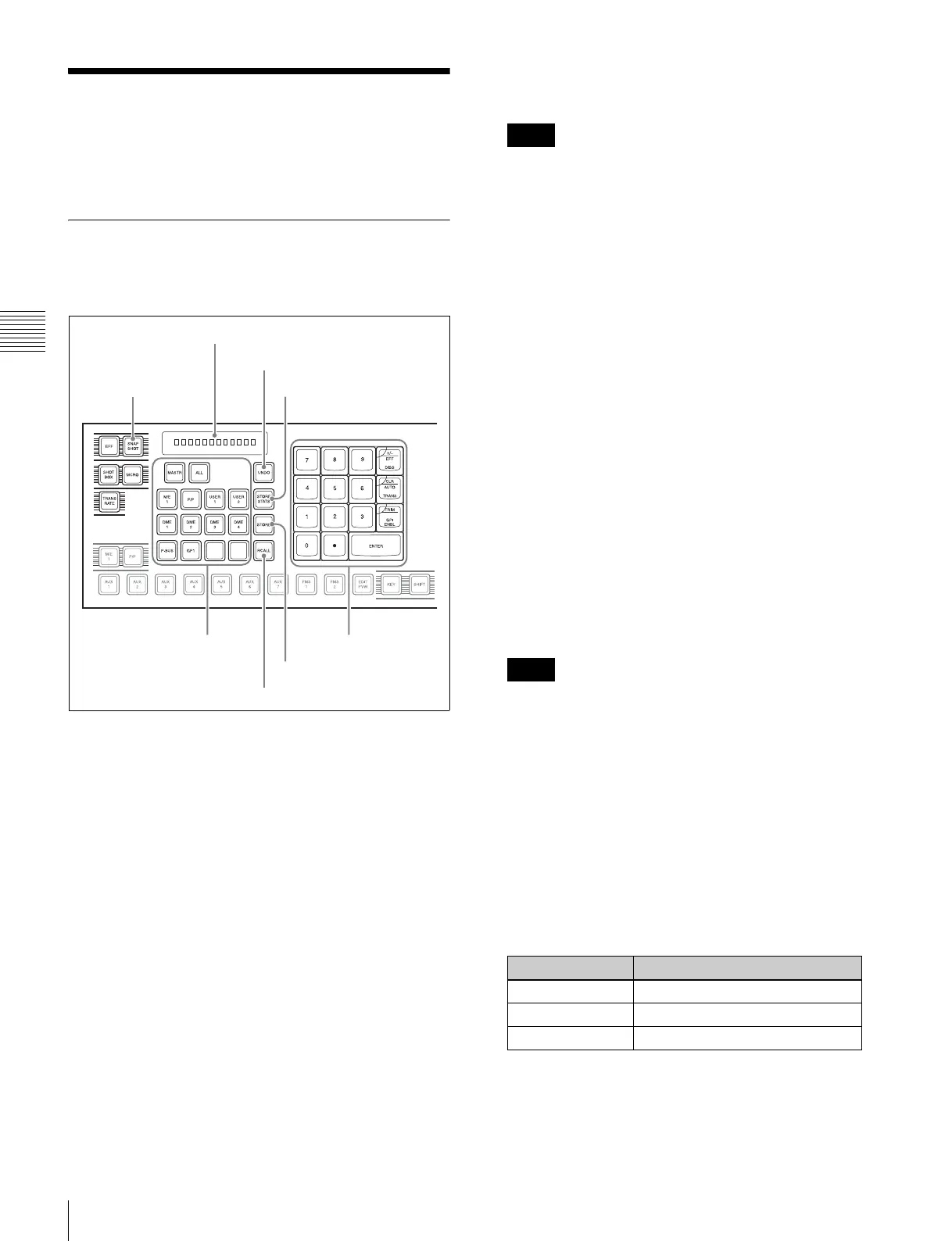

Numeric keypad control block
Saving a snapshot from the numeric
keypad control block
1
Make the settings for the state you want to save as a
snapshot.
2
In the numeric keypad control block, press the
[SNAPSHOT] button, turning it on.
This allocates the numeric keypad control block to
snapshot operations, and the [RCALL] button lights.
3
Press the region selection button corresponding to the
region for which you want to save, turning it on. You
can select more than one region.
[M/E 1], [P/P]: These select the corresponding M/E-1
and PGM/PST regions.
[USER 1] to [USER 8]: These select the User regions.
[DME 1] to [DME 8]: These select the DME
channels.
[RTR]: This selects the Router region.
[ALL]: This selects all regions.
The regions that can be selected simultaneously are
those assigned to the region selection buttons in the
numeric keypad control block .
The first button pressed lights green as the reference
region, and any subsequently pressed buttons light
amber.
Pressing one of the amber-lit buttons, while holding
down [SNAPSHOT], turns the button green to indicate
its corresponding region as the new reference region.
For details of the precedence order for becoming the
reference region, see “Reference region” (page 379).
The display shows the name of the reference region
and the number of the register previously recalled for
that region.
4
Press the [STORE] button, turning it on.
5
Enter the desired register number from the numeric
keypad.
To find an empty register, instead of entering a
number, press the [.] (period) button. To search for an
empty register common to all currently selectable
regions, press the period button again.
If you choose a register which already contains a
snapshot, and save a snapshot, then the existing
register contents are overwritten.
The register number appears in the display. If the
number is followed by a letter ‘e’ or ‘E,’ this indicates
the following.
e: The selected register is empty for the regions
selected in step 3.
E: The selected register is empty for all currently
selectable regions.
6
To apply attributes (see page 412), press the following
buttons, turning them on.
a) The GPI port that can be set is 1 (fixed).
SNAPSHOT button
Display
Numeric keypad
STORE button
RCALL button
STORE STATS button
UNDO button
Region selection buttons
Notes
Notes
Attribute to apply Button
Effect dissolve [+/–/EFF DISS] button
Auto transition [CLR/AUTO TRANS] button
GPI output
a)
[TRIM/GPI ENBL] button
