77
Executing a Transition
Chapter 3 Signal Selection and Transitions

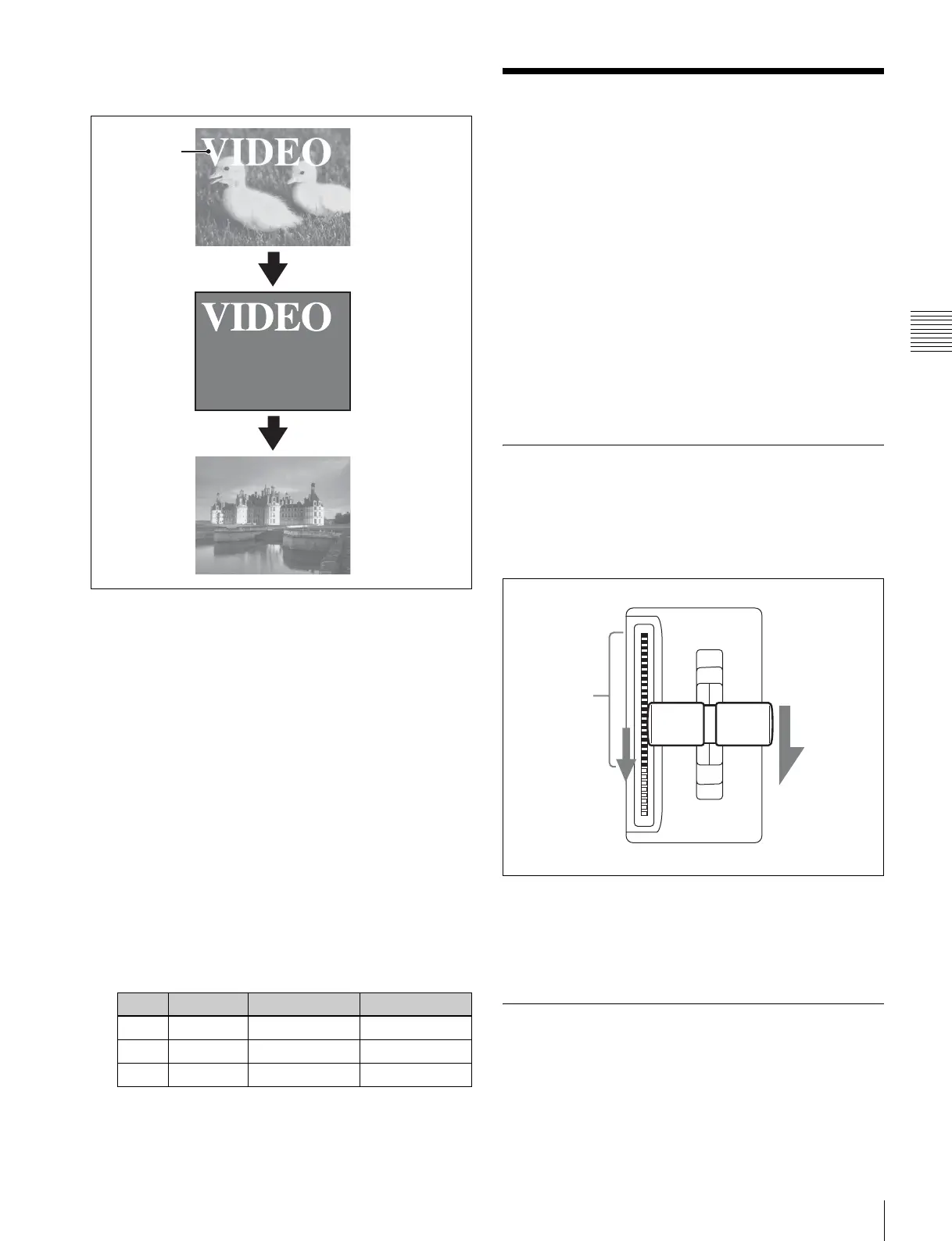

When, with a key inserted, a key is selected in the
next transition
Preset color mix (when set to preserve key state)
Setting the color matte
1
In the M/E or PGM/PST menu, select first VF7 ‘Misc,’
then HF1 ‘Transition.’
The Transition menu appears.
2
Select [Preset Color Mix] in the <Transition Type>
group.
3
In the <Preset Color Mix Fill> group, select one of the
following.
Flat Color: monochrome color matte
Utility 2 Bus: signal selected on the utility 2 bus
4
When “Flat Color” is selected, turn the knobs to adjust
the color matte.
Executing a Transition
There are two modes of executing a transition: an auto
transition by button operation or a manual transition using
the fader lever.
It is also possible to combine both methods, taking control
with the fader lever of an auto transition which has partly
completed, or complete a transition started with the fader
lever as an auto transition.
By combining common transitions with independent key
transitions, different transition types can be applied to the
background and keys, for example allowing a key wipe
combined with a background dissolve.
When the audio mixer is linked in setup, you can carry out
an auto transition, and also switch the sound with the audio
mixer (see page 70).
Transition Indicator Function
In each of the M/E banks and PGM/PST bank, to the left
of the fader lever is a transition indicator composed of
multiple LEDs. This indicator shows the state of the
transition, whether auto or manual, by which LEDs are lit.
Transition indicator
For example, in the previous illustration, it can be seen that
the transition is more than half completed.
When the transition is completed, all of the LEDs go off.
Setting the Transition Rate
There are two ways of setting the transition rate: using the
numeric keypad control block to enter a numeric value, or
using the Misc menu to access the Transition menu for the
M/E or PGM/PST bank.
Knob Parameter Adjustment Setting values
2 Luminance Luminance 0.00 to 100.00
3 Saturation Saturation 0.00 to 100.00
4 Hue Hue 359.99 to 0.00
Key
Key state preserved
Key gradually removed
Lit
