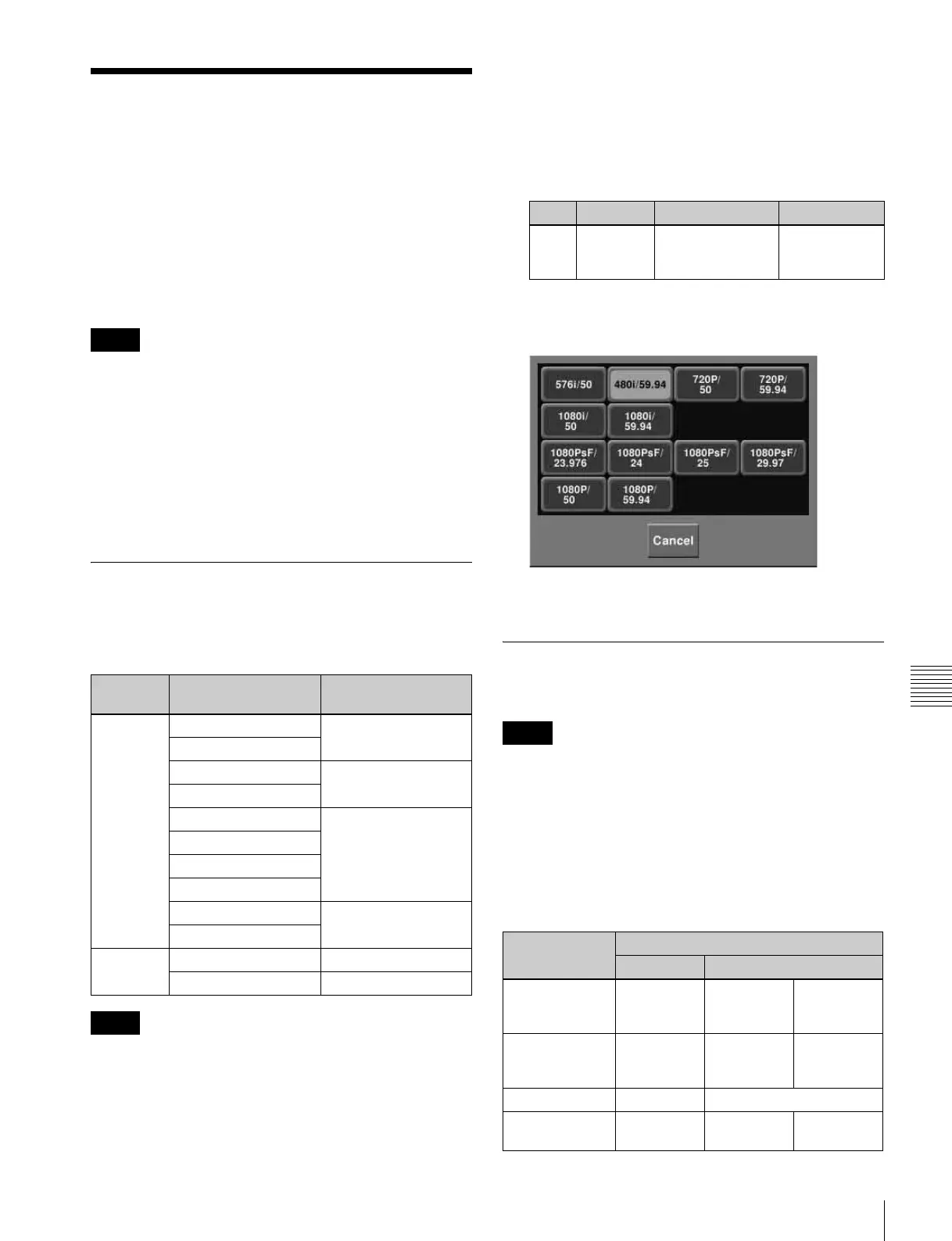

Setting the Signal Format (Format Menu)
Chapter 18 System Setup (System)
Setting the Signal Format
(Format Menu)
To set the format, that is, the frame frequency and number
of scan lines handled by each device, use the System
>Format menu.
To display the Format menu
In the Engineering Setup menu, select VF1 ‘System’ and
HF3 ‘Format.’
After changing any of the following settings, be sure to
press [Execute] (or [FC Format Execute] for changing the
format converter signal format) to save the new values. If
you want to cancel the settings and return to the original
state, press [Clear] without pressing [Execute] or [FC
Format Execute]. When you press [Execute], some data is
lost (such as frame memory images). If you press [FC
Format Execute], memory is not initialized, and this data
is not lost.
Setting the Signal Format
Specify the signal format to be handled by the devices.
The combinations of signal formats that can be selected are
as follows.
When the MVS-8000X is used with the 1080P signal
format or the MVS-7000X is used with multiple signal
formats, you need to install software options (see page
477).
1 In the System >Format menu, select the device for
operations.
• Press directly on the list in the status area.
• Press the arrow keys to scroll the reverse video
cursor.
• Turn the knob.
2 Press [Signal Format].
A pop-up window appears.
3 Press the button for the desired signal format.
Switching the Input Reference
Signal for HD System
The input reference signal for the MKS-7470X/7471X is
used in common with the switchers.
This changes the input reference signal.
• Tri Sync: tri-level sync for an HD system
• BB (Black Burst): black burst or sync
The following table shows the relation between signal
format and the frequency of a signal that can be used as the
input reference signal.
Notes
System Field frequency Effective number of
scan lines
HD system 50 1080i
59.94
50 1080P
59.94
23.976 1080PsF
24
25
29.97
50 720P
59.94
SD system 59.94 480i
50 576i
Notes
Knob Parameter Adjustment Setting values
1 Device Selection of
device for
operations
1 and upwards
Notes
Signal format Input reference signal
Tri Sync Black burst
1080PsF/29.97
1080P/59.94,
1080i/59.94
59.94 Black Burst
59.94
Sync 59.94
1080PsF/25
1080P/50,
1080i/50
50 Black Burst
50
Sync 50
1080PsF/24 48 –
1080PsF/
23.976
47.952 Black Burst
59.94
a)
Sync
59.94
a)
