Sony MVS-7000X User Manual

267
Applying Special Effects (Nonlinear Effect Settings)
Chapter 11 DME Operations
To apply the Twist effect
With the Twist menu displayed, set the following
parameters.
a) Set when Lock is on.
b) Set when Lock is off.
c) Setting for SD 4:3, SD 16:9
d) Setting for HD 4:3, HD 16:9
To stop the waves
Press [Lock], turning it on.
With each press, the waves alternately stop and start
moving again.
To select the waveform
Press [Form] and set the following parameters.
a) 1 (SINE): Sine wave
2 (PARABOLA): Parabola wave
3 (TRIANGLE): Triangular wave
4 (RECTANGLE): Rectangular wave
5 (CIRCLE): Circular wave
6 (CUBIC): Cubic wave
Ripple Settings
There are four modes: Radial, Angular, Both, and Shape.
The direction of modulation differs depending on the
mode. You can set the size and frequency of the ripples,
their direction and speed, their center point, and other
parameters. In Shape mode, you can select ripple shapes
other than circles (stars, etc.).
To apply the Ripple effect
With the Ripple menu displayed, use the following
procedure.
1 In the <Mode> group, select the ripple modulation
mode.
Radial: Points on radii of the same length from the
center of the ripples behave in the same way.
Angular: Points at the same angle from the center of
the ripples behave in the same way.
Both: Both Radial and Angular ripples are applied.
Shape: The ripples can have shapes such as stars or
hearts in addition to circles.

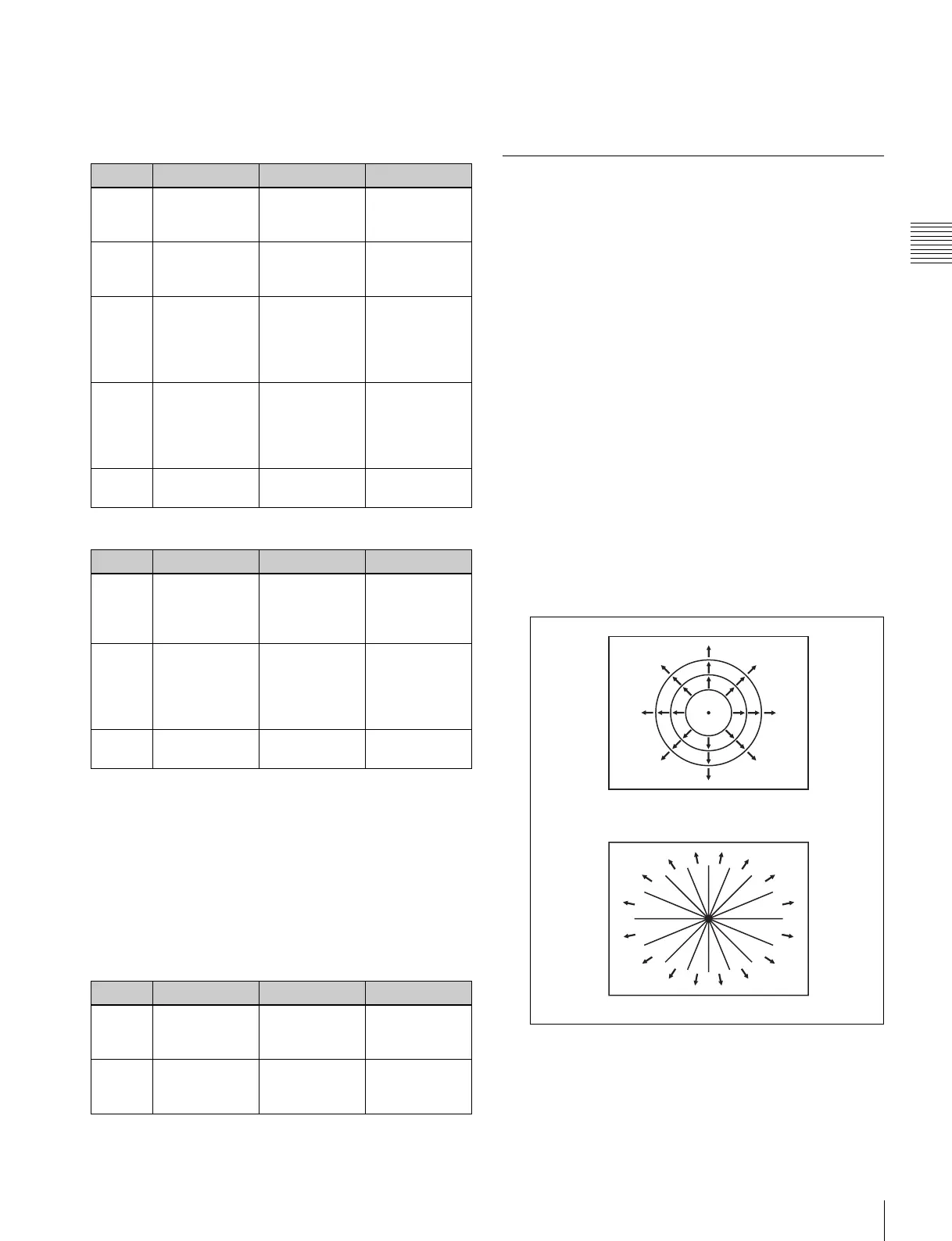

Modulation modes and directions
2 Set the following parameters, depending on the
selected modulation mode.
Parameter group [1/2]
Knob Parameter Adjustment Setting values
1 Amp V Amplitude of
twist in vertical
direction
0.00 to 100.00
2 Freq V Frequency of
twist in vertical
direction
0.00 to 100.00
3 Offset V
a)
Amount of
movement in
twist phase in
the vertical
direction
–16.00 to
+16.00
c)
–64.00 to
+64.00
d)
4 Speed V
b)
Speed and
direction of
twist movement
in vertical
direction
–100.00 to
+100.00
5 Slant Slant of twist –8.000 to
+8.000
Parameter group [2/2]
Knob Parameter Adjustment Setting values
1 Amp H Amplitude of
twist in
horizontal
direction
0.00 to 100.00
3 Offset H
a)
Amount of
movement in
twist phase in
the horizontal
direction
–100.00 to
+100.00
5 Slant Slant of twist –8.000 to
+8.000
Knob Parameter Adjustment Setting values
1 Form H Waveform in
horizontal
direction
1 to 6
a)
2 Form V Waveform in
vertical
direction
1 to 6
a)
Modulation along radii (Radial mode)
Modulation along periphery (Angular mode)
