Basic Menu Operations
Chapter 2 Menus and Control Panel
Menus accessed from a top menu selection button

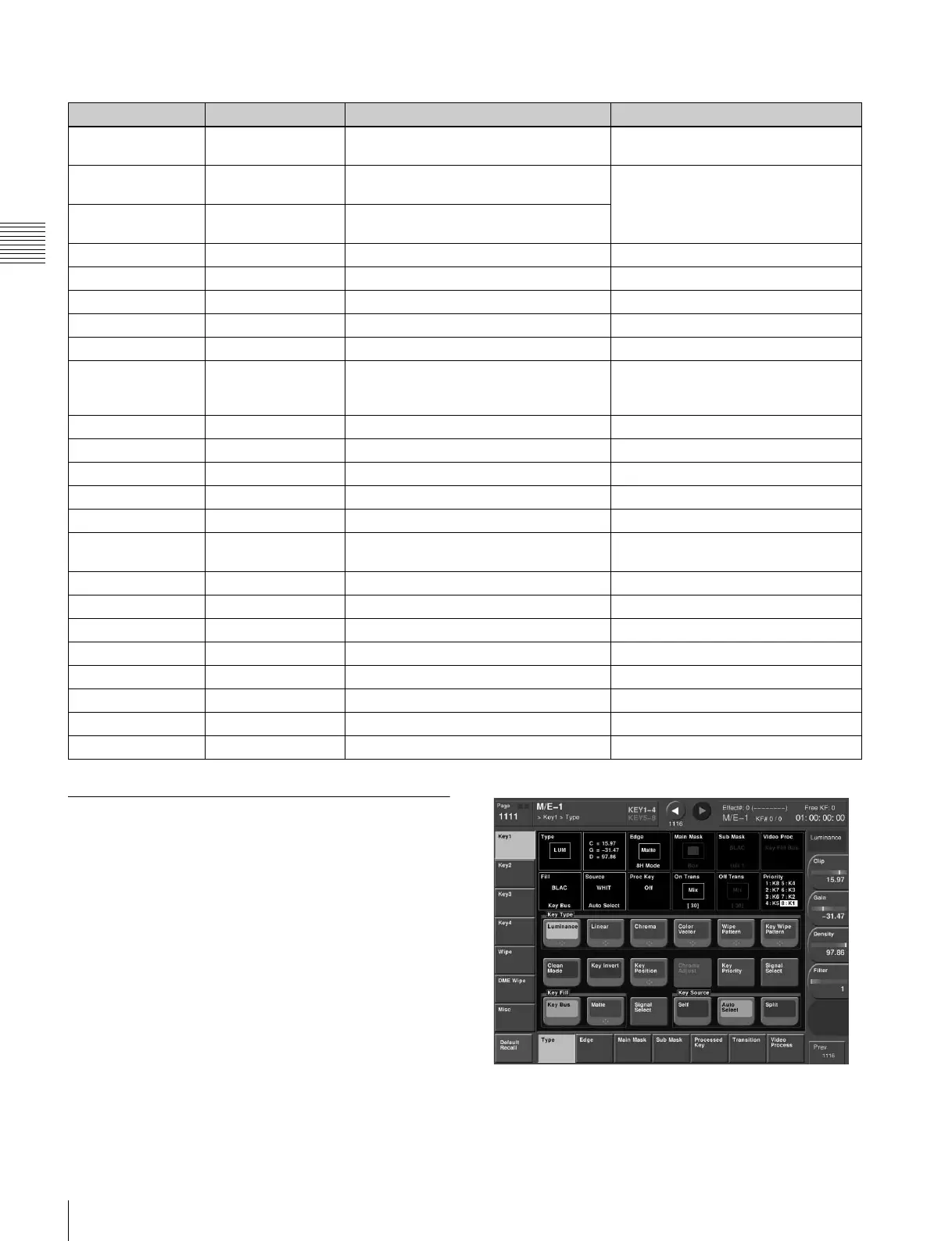

Example of Displaying a Menu
To display, for example, the M/E-1 >Key1 >Type menu,
use either of the following operations.
• Press the top menu selection button [M/E 1], then press
the VF1 ‘Key1’ button and the HF1 ‘Type’ button in that
order.
• Press the menu page number button in the upper left
corner of the menu screen to display the top menu
window, then enter the page number of the M/E-1
>Key1 >Type menu, which is 1111, and press the
[Enter] button.
For details of the menu page numbers, see “Menu Tree”
(page 323).
The M/E-1 >Key1 >Type menu appears in the menu
display as follows.
Buttons Menus Function See
HOME Home Recalling menus using the top menu list
or shortcut menu
Top menu list: page 51 Shortcut menu:
page 60
M/E 1 M/E-1 Transition, keys, and wipe settings for the
M/E-1 bank
page 74 (transitions), page 90 (keys),
page 124 (wipes)
P/P PGM/PST Transition, downstream key, and wipe
settings for the PGM/PST bank
FRAME MEM Frame Memory Frame memory settings page 158
COLOR BKGD Color Bkgd Color background settings page 182
AUX Aux AUX bus settings page 189
CCR CCR Color corrector settings page 193
COPY SWAP Copy/Swap Copy and swap settings page 184
MISC Misc Settings for side flag, safe title, transition
settings, and connection to external
devices
page 187
STATS Status Status display page 189
DME DME DME special effect settings page 239
GLB EFF Global Effect Global effect settings page 300
RTR Router Router settings page 190
DEV Device Settings for external device operation Chapter 12 (Volume 2)
MCRO Macro Macro register and macro timeline
settings
Chapter 16 (Volume 2)
KEY FRAME Key Frame Keyframe settings Chapter 13 (Volume 2)
EFF Effect Keyframe effect register settings Chapter 13 (Volume 2)
SNAP SHOT Snapshot Snapshot register settings Chapter 14 (Volume 2)
SHOTBOX Shotbox Shotbox register settings Chapter 15 (Volume 2)
FILE File File settings Chapter 17 (Volume 2)
USER SETUP User setup User setup settings Chapter 24 (Volume 2)
ENG SETUP Engineering Setup Setup functions Chapter 18 to Chapter 23 (Volume 2)
DIAG Diagnosis Status information display Chapter 25 (Volume 2)
