425
Shotbox Execution
Chapter 15 Utility/Shotbox
7
Depending on the selection in step 6, set the
parameters as follows.
When a snapshot is selected
When an effect is selected
a) For the DME region, you can also set register numbers 101 to 199,
201 to 299, and 301 to 399.
For P-Bus and Device1 to Device12, you can also set register
numbers 1 to 250.
8
To run the allocated effect as soon as it is recalled,
press [Auto Run], turning it on.
9
Repeat steps 5 to 8 as required.
10
In the <Store> group, press [Store] to save the setting.
To return to the state before saving the setting
In the <Store> group, press [Undo].
To execute the settings to check them
Press [Recall] to execute the shotbox.
Shotbox Execution
You can recall (and run) shotbox registers from the
following control blocks.
This section describes the various methods of operation.
• Numeric keypad control block (see page 425)
• Utility/shotbox control block
Shotbox Execution From the
Numeric Keypad Control Block

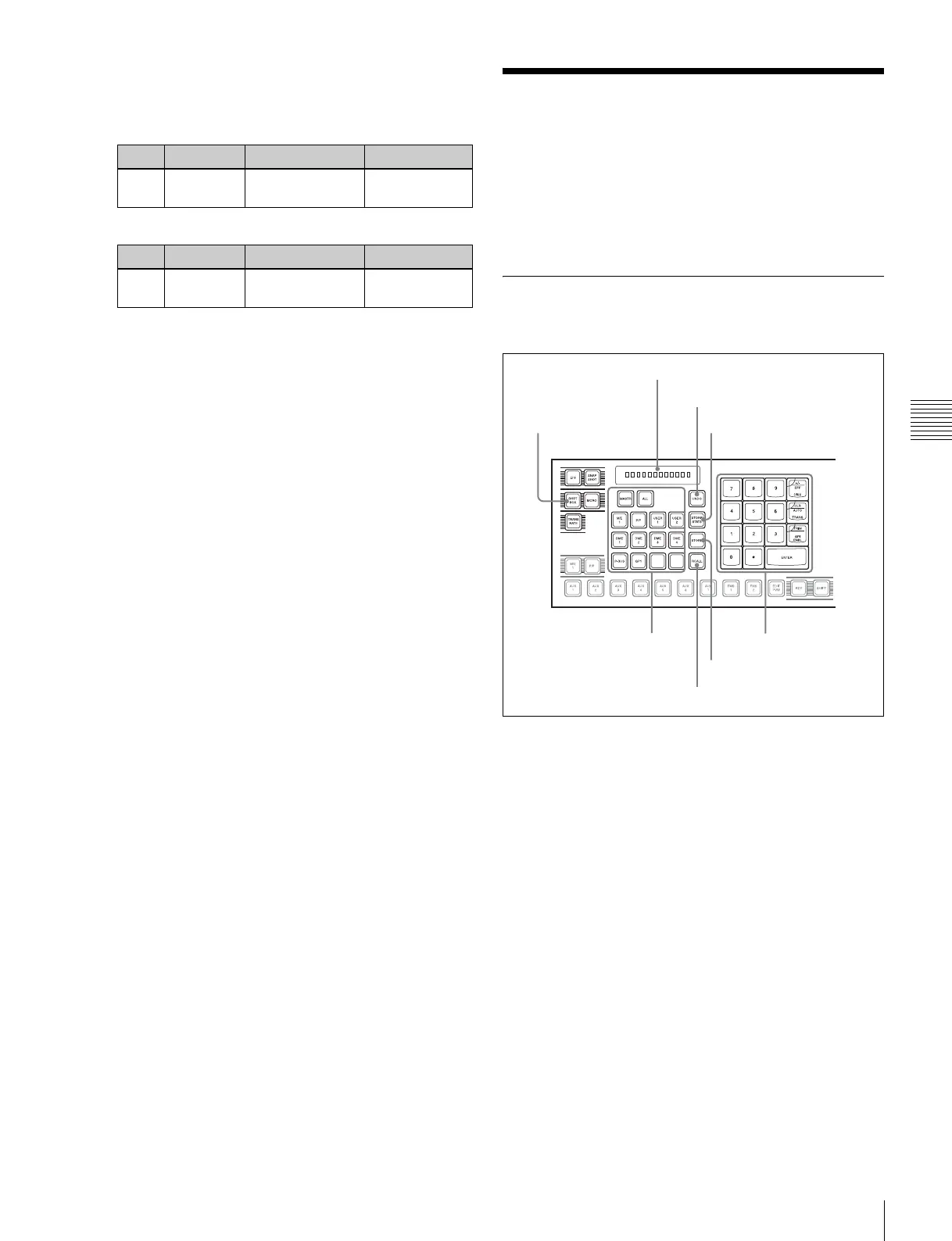

Numeric keypad control block
1
In the numeric keypad control block, press the
[SHOTBOX] button, turning it on.
• This allocates the numeric keypad control block to
shotbox operations.
• The [RCALL] button lights amber.
• The display shows the last recalled register number.
2
With the numeric keypad buttons, enter the desired
register number.
• The display now shows the entered register number.
• If the specified register is empty, an “E”
automatically appears after the register number.
3
Press the [ENTER] button.
• This runs the specified shotbox register.
• The number of the recalled register appears in the
display.
Knob Parameter Adjustment Setting values
3 Snapshot Snapshot register
number
1 to 99
Knob Parameter Adjustment Setting values
3 Effect Keyframe effect
number
1 to 99
a)
Region selection
buttons
STORE button
STORE STATS button
RCALL button
SHOTBOX button
Display
UNDO button
Numeric keypad
To Next Page
