284
Applying Special Effects (Lighting and Recursive Effects)
Chapter 11 DME Operations
a) The way in which the afterimage disappears is affected by both
Decay and Trail Dust parameter adjustments.
Setting a combine process
Select whether to add the Trail effect before or after the
combine.
• The combine process function is not supported on the
MVE-8000A.
• When you change the selection in the <Combine
Process> group, the afterimages which had been added
up to then disappear.
• When you do not combine images, the Trail effect only
is applied, regardless of the selection in the <Combine
Process> group.
Select one of the following in the <Combine Process>
group.
Combine –> Trail: Add the Trail effect after the combine.
As the trail parameters, the data for the channel with
the lowest number among the channels being
combined is enabled.
Trail –> Combine: Add the Trail effect before the
combine. Trails parameters can be set independently
for each channel.
Motion Decay Settings
When you turn on motion decay, if the Trail, Keyframe
Strobe or Wind effect is on, it automatically goes off.
Blurring image motion
1
In the DME menu, select VF5 ‘Light/Trail’ and HF3
‘Motion Decay.’
The Motion Decay menu appears.
2
Press [Motion Decay], turning it on.
3
Set the following parameter.
a) At the setting 0.00, there is no afterimage. At a setting of 100.00, the
afterimage does not decay.
4
In the <Decay Mix Mode> group, select the way in
which the video signal is blurred.
Soft: mix the live image and the afterimage.
Hard: show the lighter of the live image and
afterimage.
5
To erase the afterimage, press [Decay Eraser], turning
it on.
Erasing the afterimages that remain in
memory whenever a keyframe is passed
Press [Decay Eraser], turning it on.
When the effect passes a keyframe, the afterimage is
erased before writing a new afterimage.
Selecting the freeze timing
In the <Decay Freeze Timing> group, select the timing for
motion decay freezing.
Frame: freeze in frame units.
Field: freeze in field units.
The freeze timing setting is not required when the
following signal formats are being used.
1080P/50, 1080P/59.94, 1080PsF/23.976,
1080PsF/24, 1080PsF/25, 1080PsF/29.97, 720P/
50, 720P/59.94
Applying stardust to the afterimage
portion
The afterimage portion becomes stardust, and gradually
disappears.
1
Press the [DUST] button, turning it on.
2
Set the following parameters.
4Dust
Aspect
Aspect ratio
of stardust
–100.00 to +100.00
Notes
Notes
Knob Parameter Adjustment Setting values

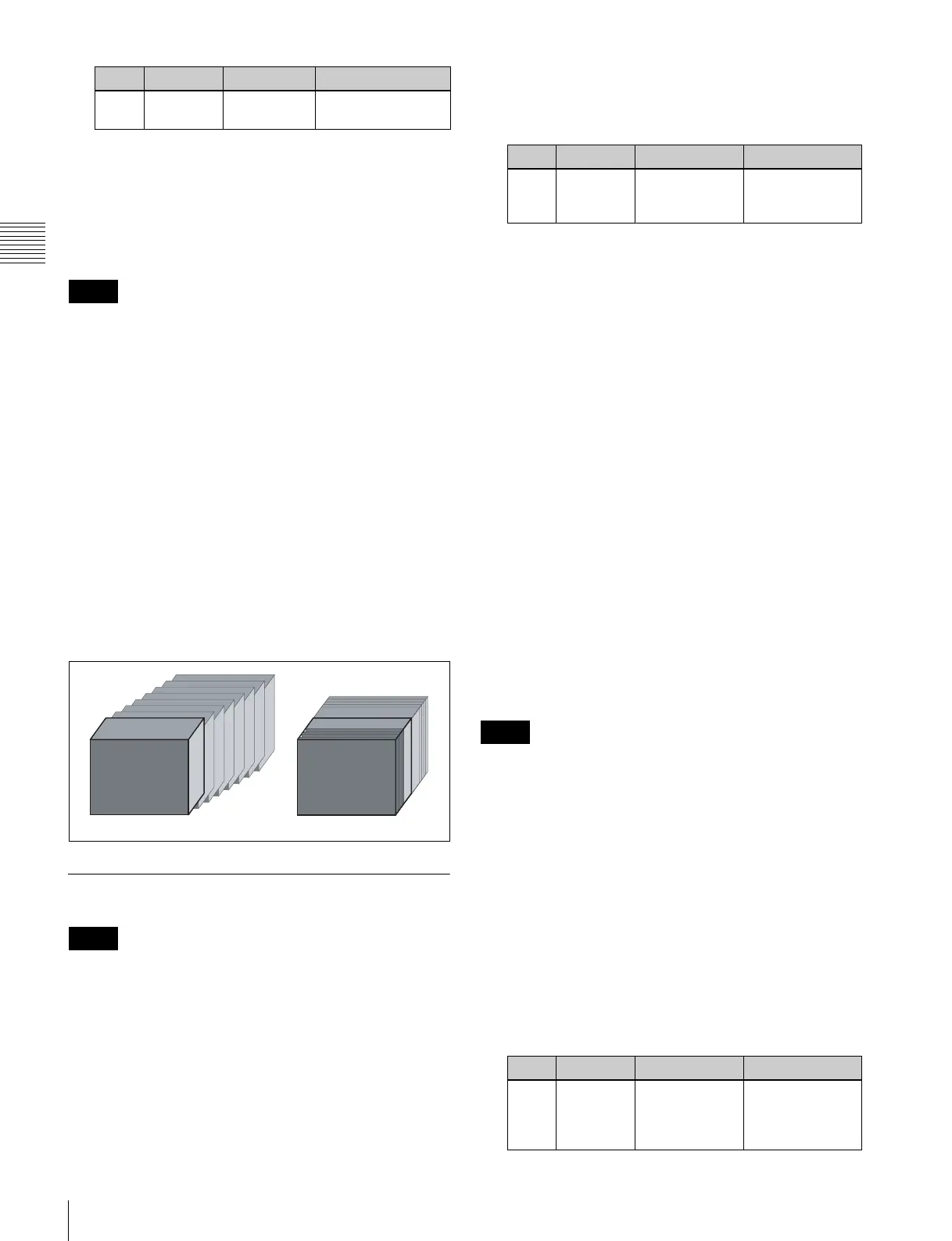

Combine –> Trail Trail –> Combine
Knob Parameter Adjustment Setting values
1Video
Decay
Degree of
blurring of the
video signal
0.00 to 100.00
a)
Notes
Knob Parameter Adjustment Setting values
1Decay
Dust
Amount of the
afterimage
disappearing as
stardust
a)
0.00 to 100.00
