Executing Effects
Chapter 13 Keyframe Effects
Executing Effects
By means of the [RUN] button in the keyframe control
block, you can play an effect as a continuously varying
image. This is referred to as effect execution (see page
385).
It is also possible to execute an effect from the device
control block.
For details, see “Menus and Control Panel” in Chapter 2
(Volume 1).
Executing Effects in the Keyframe
Control Block

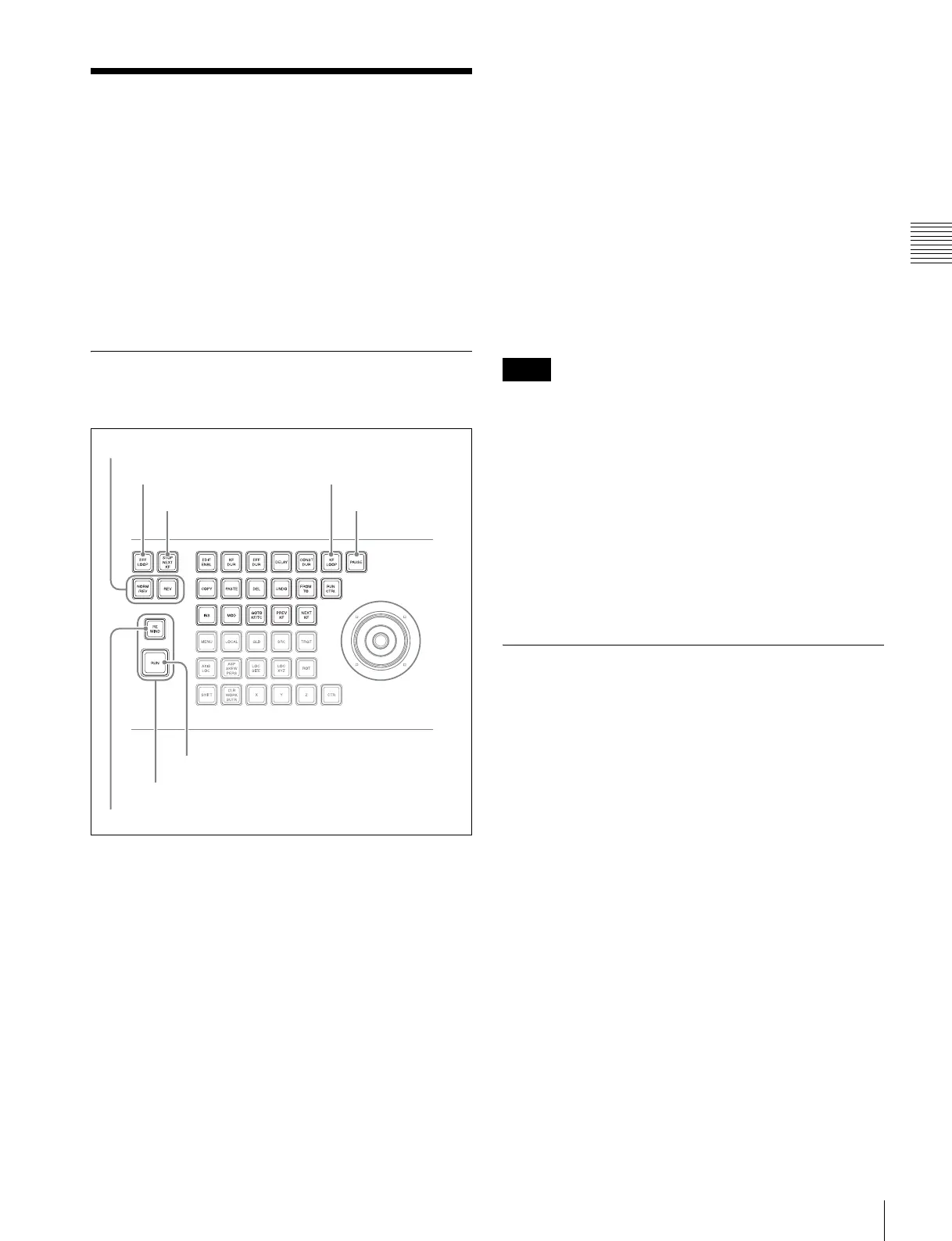

Keyframe control block
Executing an effect automatically
1
Select the region in which you want to execute the
effect, using the region selection buttons in the
numeric keypad control block .
2
With the numeric keypad, enter the number of the
register in which the effect you want to execute is
saved, and press the [ENTER] button to confirm.
This recalls the effect saved in the register.
3
In the keyframe control block, press the [RUN] button.
The [RUN] button lights amber and the effect is
executed automatically.
Executing an effect manually
In step 3 above, operate the fader lever.
To use the transition control block fader lever as
a keyframe fader
Press the [KF] button in the transition control block,
turning it on, to execute a keyframe effect with the fader
lever in the same control block.
You can also assign the [KF] button to a transition type
selection button in the transition control block (see page
492).
• It is not possible for the [KF] button to be on for multiple
banks (M/E or PGM/PST) at the same time. If you press
the [KF] button in more than one bank, only the last
button pressed remains on.
• If a macro is assigned to the transition control block
fader lever, then while in use as a keyframe fader the
macro is not executed.
Moving to the first keyframe of the effect
To move to the first keyframe of the effect, press the
[REWIND] button.
Setting the Run Mode
You can set the run mode in which an effect is executed
when you press the [RUN] button.
Specifying the effect execution direction
To specify the effect execution direction, press the [REV]
button, turning it on (for reverse direction) or off (for
normal direction).
To execute the effect so as to alternate the normal and
reverse directions, press the [NORM/REV] button, turning
it on.
When the [REV] button is off: The effect is executed in
the direction from the first keyframe to the last
keyframe.
When the [REV] button is on: The effect is executed in
the direction from the last keyframe to the first
keyframe.
When the [NORM/REV] button is on: Each time the
effect is executed, the direction reverses.
Executing an effect up to the next
keyframe
1
Press the [STOP NEXT KF] button, turning it on.
REWIND button
Effect execution buttons
RUN button
Effect execution direction selection buttons
EFF LOOP button
STOP NEXT KF button
KF LOOP button
PAUSE button
