264
Applying Special Effects (Nonlinear Effect Settings)
Chapter 11 DME Operations
Applying Special Effects
(Nonlinear Effect
Settings)
You can add a variety of effects, including effects that
change the shape of the image as a whole.
1
In the DME menu, select VF4 ‘Non Linear/Corner
Pin’ and HF1 ‘Non Linear.’
A menu for selecting the various effects appears.
2
Display the menu for the effect that you want to apply
by pressing its button.
3
Make the settings for the selected effect.
• It is not possible to apply two or more nonlinear
effects at the same time. Turning any nonlinear
effect on automatically turns all other nonlinear
effects off.
• The Flex Shadow function cannot be enabled when
any of the nonlinear effects Page Turn, Roll,
Cylinder, and Sphere is enabled.
• However, the Flex Shadow function is not supported
on the MVE-8000A.
To turn an effect off
In the setting menu, press the button for the effect name,
turning it off, or in the Type menu press [OFF] in the lower
right part of the window.
Wave Settings
There are two modes: H&V and Size. You can set the size
and frequency of the waves, the wave form, the amount of
wave movement, and the range. In H&V mode, you can
also set the wave angle.
To apply the Wave effect
With the Wave menu displayed, use the following
procedure.
1
In the <Mode> group, select the wave modulation
mode.
H&V: Modulate vertically and horizontally without
changing the size of the image. This mode allows
waves to be created in both the vertical and
horizontal directions at the same time.
Size: Create waves by reducing and expanding the
image. This mode allows waves to be created in
one direction only.
2
Set the following parameters, according to the selected
mode.
When H&V is selected
Notes
Parameter group [1/2]
Knob Parameter Adjustment Setting values
1 Amp H Amplitude of
waves in
horizontal
direction
0.00 to 100.00
2 Freq H Frequency of
waves in
horizontal
direction
0.00 to 100.00
3Offset H
a)
Horizontal
direction in
which to
offset wave
phase and
amount of
movement
–16.00 to +16.00
c)
–64.00 to +64.00
d)
4 Speed H
b)
Horizontal
direction and
speed of
waves
–100.00 to +100.00
5 Slant Slant of
waves
–8.000 to +8.000
Parameter group [2/2]
Knob Parameter Adjustment Setting values
1 Amp V Amplitude of
waves in
vertical
direction
0.00 to 100.00
2 Freq V Frequency of
waves in
vertical
direction
0.00 to 100.00

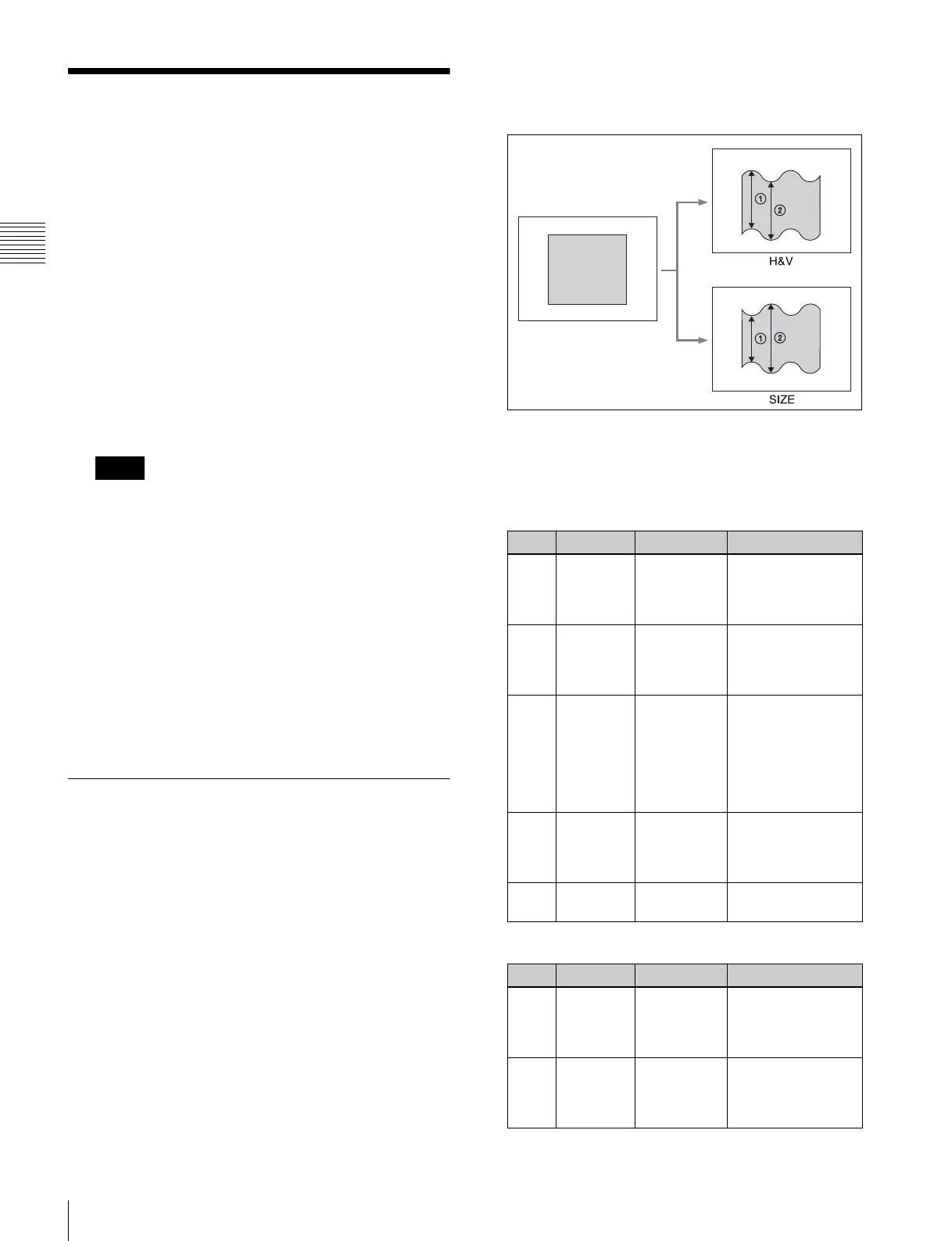

Before modulation
Size not modulated.
1 and 2 are same size.
Create waves by
reducing 1 and
expanding 2 the image.
