Global Effect Operations
Chapter 11 DME Operations
For case “Ch1+Ch2+Ch3”
For case “Ch1+Ch2+Ch3+Ch4”
Knobs 1 and 2 set the same parameters as “For case
‘Ch1+Ch2+Ch3’,” respectively. Knob 3 is
additionally effective, which sets the parameter Soft3
(in the same setting value range as with knobs 1 and 2).
Crossing images from channels 1 and 2,
and channels 3 and 4 in three dimensions
The three-dimensional crossing function is not supported
on the MVE-8000A.
1
In the Combiner Priority menu, press [Combiner1
Depth], turning it on.
2
Set the following parameter.
3
Press [Combiner2 Depth], turning it on.
4
Set the following parameter.
Brick Settings

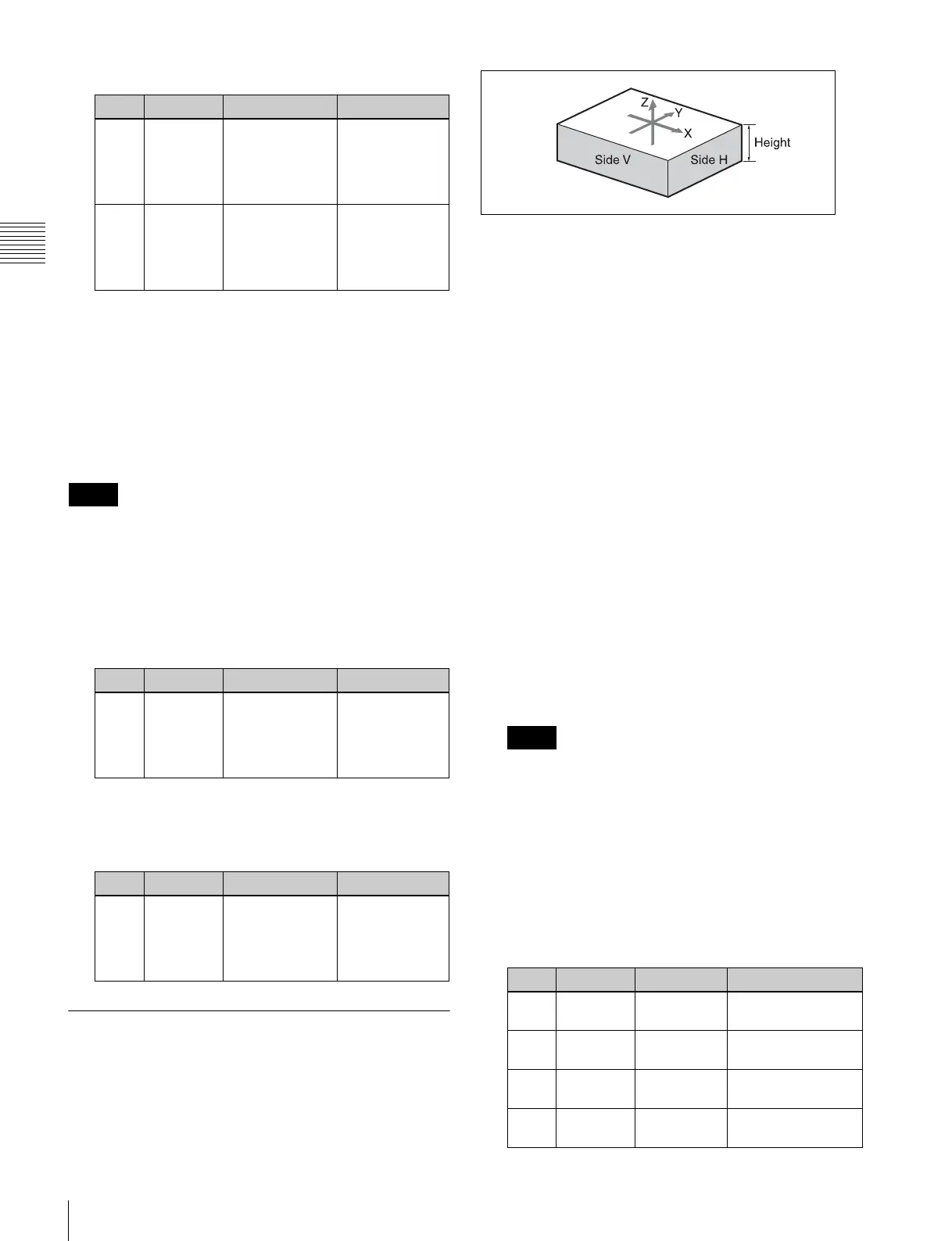

Brick allows you to create a rectangular parallelepiped by
using images of three consecutive channels.
The Brick effect can combine Ch1, Ch2, and Ch3, or
combine Ch2, Ch3, and Ch4. The three images are
displayed as shown in the following figure.
Combinations of Ch1, Ch2, and Ch3
Upper side: Ch1 image
Side V: Ch2 image
Side H: Ch3 image
Combinations of Ch2, Ch3, and Ch4
Upper side: Ch2 image
Side V: Ch3 image
Side H: Ch4 image
You can adjust the height of the brick, the overlap between
the three images and the way to insert the side images.
Applying the Brick effect
1
In the Global Effect >Ch1 - Ch4 menu, select HF2
‘Brick.’
The Brick menu appears.
2
Press [Brick], turning it on.
The Brick effect is enabled, and a rectangular
parallelepiped (brick) showing the images of three
channels appears. You can use the knobs to adjust
parameters for the height of the brick and the overlap
between the three images.
• When the Brick effect is enabled, the z-axis position
of the front image in the source coordinate frame is
shifted by the amount of half the height. Therefore,
the image is somewhat magnified.
• The flex shadow function cannot be enabled when
Brick is enabled.
However, the flex shadow function is not supported on
the MVE-8000A.
3
Set the parameters.
Knob Parameter Adjustment Setting values
1 Soft1 Softness of
edges of
channel 1 and
channel 2
crossed section
0.00 to 100.00
2 Soft2 Softness of
edges of
channel 2 and
channel 3
crossed section
0.00 to 100.00
Notes
Knob Parameter Adjustment Setting values
1 Soft1 Softness of
edges of
channel 1 and
channel 2
crossed section
0.00 to 100.00
Knob Parameter Adjustment Setting values
1 Soft2 Softness of
edges of
channel 3 and
channel 4
crossed section
0.00 to 100.00
Notes
Knob Parameter Adjustment Setting values
1 Height Height of
brick
0.00 to 8.00
a)
0.00 to 32.00
b)
2Front
Overlap
Front overlap –100.00 to +100.00
3Side H
Overlap
Side H
overlap
–100.00 to +100.00
4Side V
Overlap
Side V
overlap
–100.00 to +100.00
