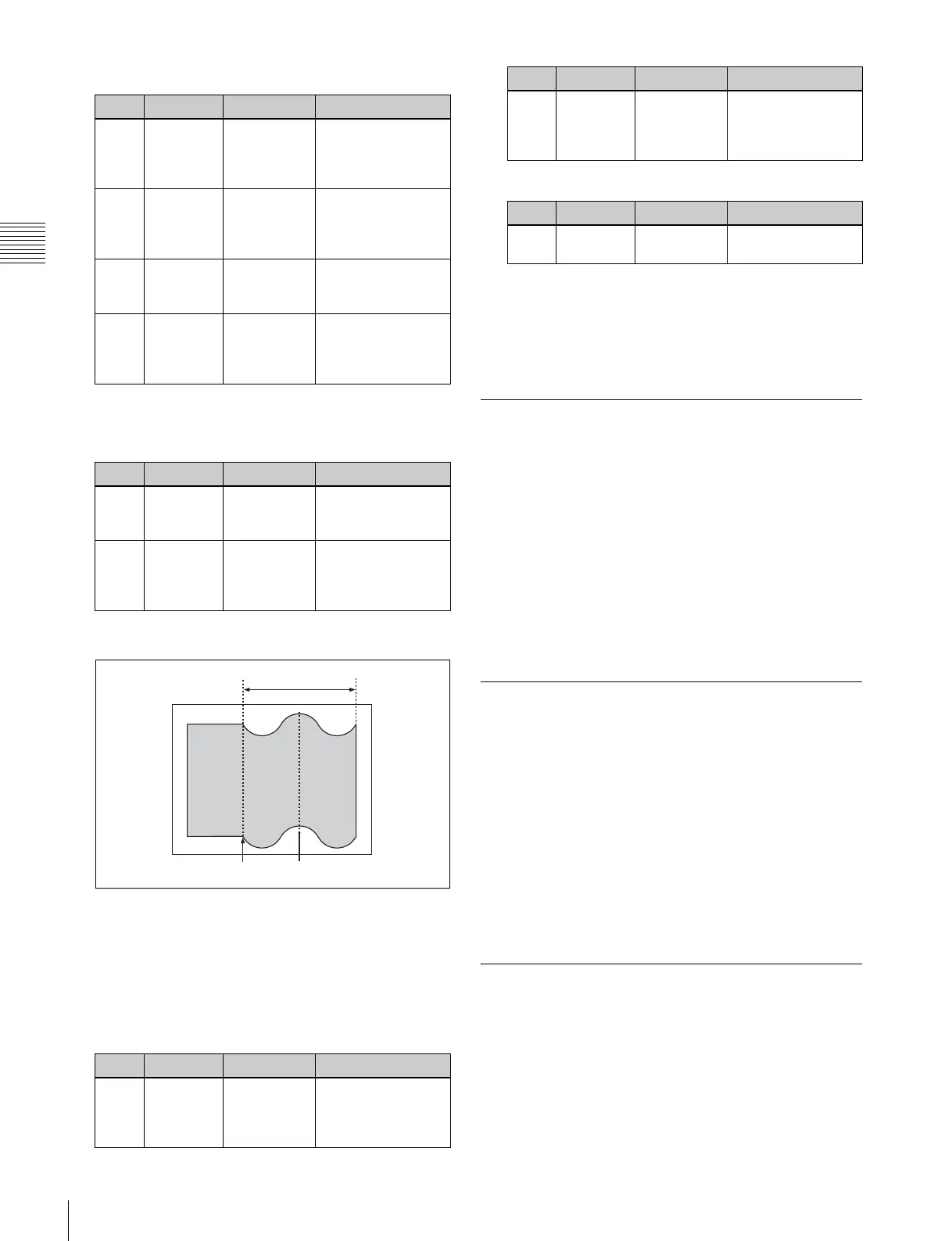

Applying Special Effects (Nonlinear Effect Settings)
Chapter 11 DME Operations
When H&V mode is selected
a) Setting for SD 4:3, SD 16:9
b) Setting for HD 4:3, HD 16:9
When Size mode is selected
a) Setting for SD 4:3, SD 16:9
b) Setting for HD 4:3, HD 16:9
To smooth the range envelope when the wave
range is limited
1 Press [Range Envelope], turning it on.
2 Set the following parameters.
When H&V mode is selected
When Size mode is selected
To reverse the wave range
To reverse the horizontal wave range set with [Range]:
Press [Range Rev H], turning it on.
To reverse the vertical wave range set with [Range]:
Press [Range Rev V], turning it on.
Mosaic Glass Settings
There are two modes: H&V and Size. You can set the size
and frequency of waves in the image, the wave form, the
amount of wave movement, and the range. In H&V mode,
you can also set the wave angle.
To apply the Mosaic Glass effect
Display the Mosaic Glass menu.
The items displayed in the Mosaic Glass menu and the
functions of the knobs are the same as for the Wave menu
(see page 264).
Flag Settings
There are two modes: H&V and Size. You can set the size
and frequency of waves in the image, the wave form, the
amount of wave movement, and the range. In H&V mode,
you can also set the wave angle.
To apply the Flag effect
Display the Flag menu.
The items displayed in the Flag menu and the functions of
the knobs are the same as for the Wave menu (see page
264).
Twist Settings
You can twist the image in the horizontal or vertical
direction.
You can set the size and frequency of waves in the image,
the wave form, the amount of wave movement, and other
parameters.
Knob Parameter Adjustment Setting values
1 Size H Amount of
horizontal
wave
modulation
0.00 to 100.00
2 Offset H Center point
of horizontal
modulation
range
–8.000 to +8.000
a)
–32.000 to
+32.000
b)
3 Size V Amount of
vertical wave
modulation
0.00 to 100.00
4 Offset V Center point
of vertical
modulation
range
–8.000 to +8.000
a)
–32.000 to
+32.000
b)
Knob Parameter Adjustment Setting values
1 Size H Amount of
wave
modulation
0.00 to 100.00
2 Offset H Center point
of
modulation
range
–8.000 to +8.000
a)
–32.000 to
+32.000
b)
Knob Parameter Adjustment Setting values
1 Envelope
H
Smoothness
of envelope
in horizontal
direction
0.00 to 100.00
Envelope
Size
Offset
2 Envelope
V
Smoothness
of envelope
in vertical
direction
0.00 to 100.00
Knob Parameter Adjustment Setting values
1 Envelope
H
Smoothness
of envelope
0.00 to 100.00
Knob Parameter Adjustment Setting values
