Signal Input Settings (Input Menu)
Chapter 20 Switcher Setup (Switcher)
Selecting the Primary Input to be
Used in the Format Converter
1
In the Switcher >Input menu, press [FC Input Select].
The FC Input Select menu appears.
The status area shows the format converter list (left)
and the primary input number list (right).
2
Using any of the following methods, select the number
of the FC (format converter) that you want to set from
the table on the left.
• Press directly on the list in the status area.
• Turn the knob.
3
Using any of the following methods, select the primary
number.
• Press directly on the list in the status area.
• Press the arrow keys to scroll the reverse video
cursor.
• Turn the knob.
4
To input the name of the input signal which has been
converted in the format converter, press [FC Name].
A keyboard window appears. You can enter a name of
not more than 16 characters.
5
Press [Set].
Selecting the Input to Which the
Frame Delay Function Applies
1
In the Switcher >Input menu, select the input signal for
which you want to make the setting.
You can select the input signals for which the frame
delay function is enabled in advance.
2
Adjust the following parameter.
Selecting the Format Converter
Conversion
Selecting the Format Converter Inputs to be Set
For four groups of FC1 to FC4, FC5 to FC8, FC9 to FC12,
and FC13 to FC16, the same setting is applied in units of
groups.
The two groups of FC9 to 12 and FC13 to FC16 can be
used only on the MVS-8000X.
1
Display the Switcher >Input >FC Adjust menu.

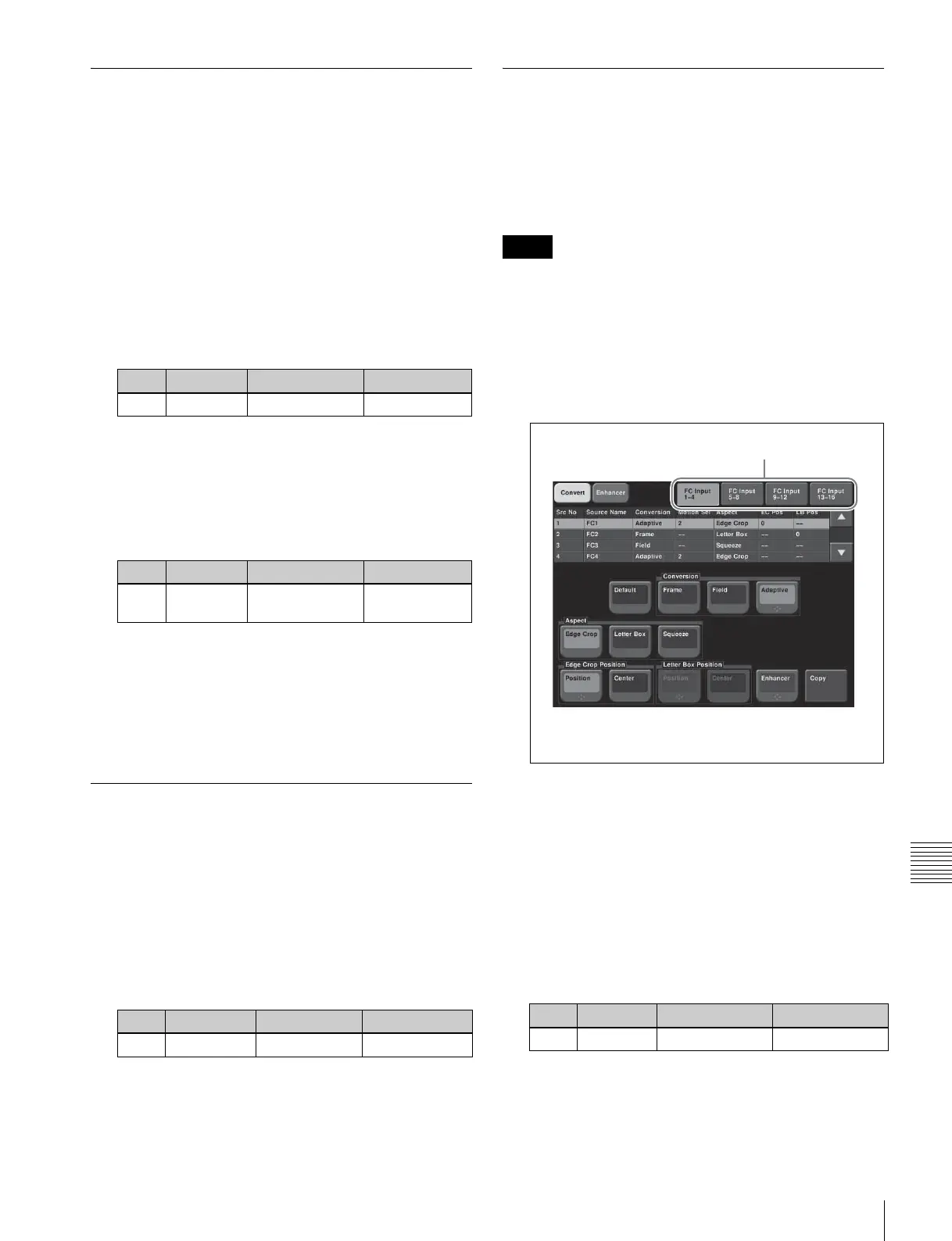

The following figure illustrates the case when FC
Input 1-4 are set to up-conversion, and FC Input 5-8
are set to cross-conversion.
2
Press [FC Input 1-4], [FC Input 5-8], [FC Input 9-12],
or [FC Input 13-16] as required.
The list corresponding to the pressed button appears.
3
Using any of the following methods, select what the
setting applies to.
• Press directly on the list in the status area.
• Press the arrow keys to scroll the reverse video
cursor.
• Turn the knob.
a) The setting values vary with the button pressed in step 2.
Knob Parameter Adjustment Setting values
1 FC Format converter 1 to 8
Knob Parameter Adjustment Setting values
2 Primary Input signal to be
converted
1 to 80
Knob Parameter Adjustment Setting values
2 Frame Delay Delay amount 1 to 8
Notes
Knob Parameter Adjustment Setting values
1 Source No Input selection 1 and upwards
a)
Display switching button
a)
a) This button does not appear when the frame delay
function is enabled.
