Honda PCX150 2014 User Manual

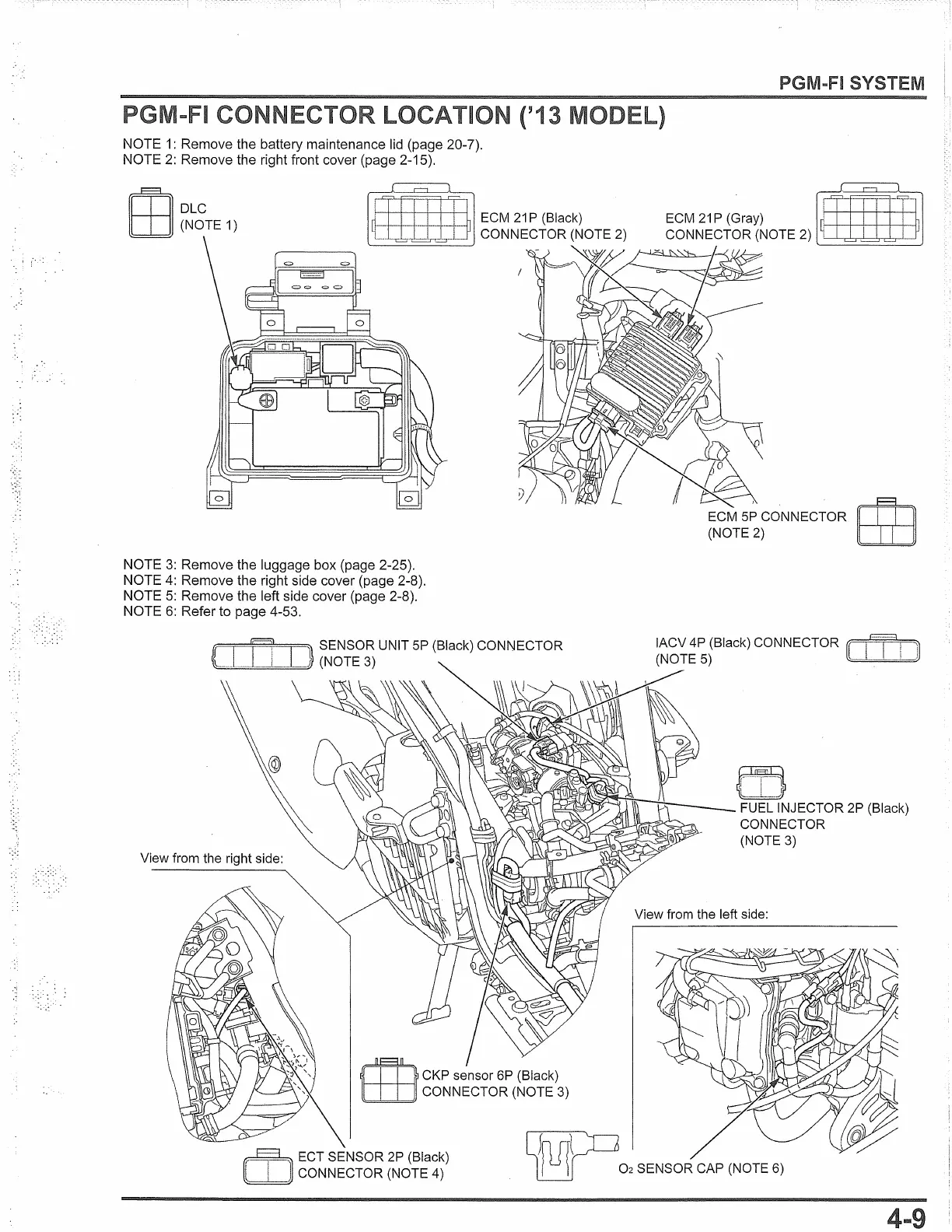

NOTE 1: Remove the battery maintenance lid (page 20-7).
NOTE 2: Remove the right front cover (page 2-15).
m DLC
l[J]J (NOTE 1)
Jl[QT1 ECM 21P (Black)
L -=-=cJ-= __ i_J CONNECTOR (NOTE 2)
NOTE 3: Remove the luggage box (page 2-25).
NOTE 4: Remove the right side cover (page 2-8).
NOTE 5: Remove the left side cover (page 2-8).
NOTE 6: Refer to page 4-53.
{l [ ~ j ~ SENSOR UNIT 5P (Black) CONNECTOR
___ _ _i __ _J (NOTE 3)
View from the right side:
~ CKP sensor 6P (Black)
tr:t] CONNECTOR (NOTE 3)
ECM 5P CONNECTOR
(NOTE 2)
IACV 4P (Black) CONNECTOR
rr==;~~=
(NOTE 5)
~
UJ
FUEL INJECTOR 2P (Black)
CONNECTOR
(NOTE 3)
View from the left side:
F¥9 ECT SENSOR 2P (Black)
lLLJJ CONNECTOR (NOTE 4)
~ 02 SENSOR CAP (NOTE 6)

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
