CYLINDER HEADNAlVES
The valves cannot
be ground. If the
valve face is
burned, badly worn
or if it contacts the
seat unevenly,
replace the valve.
10-18

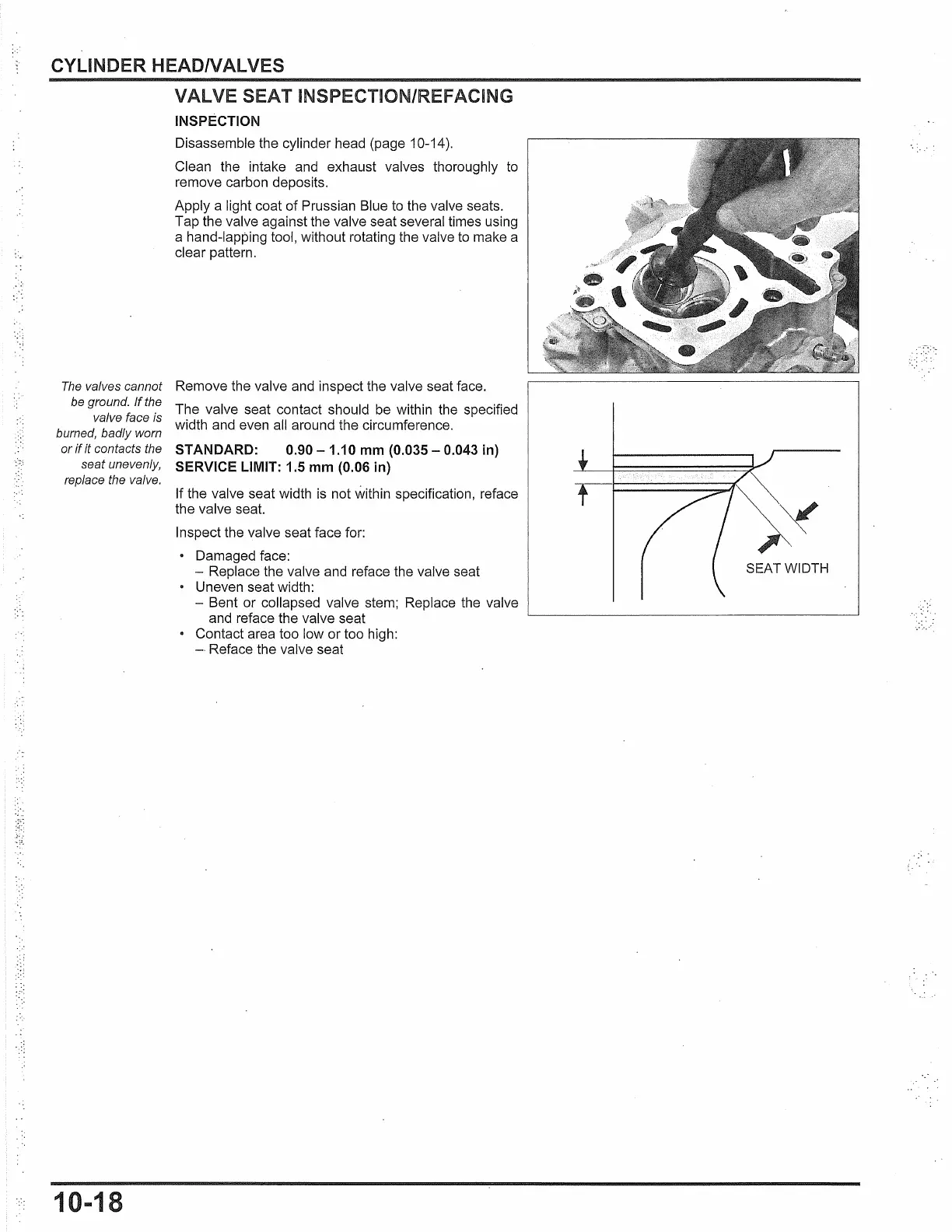

VALVE SEAT INSPECTION/REFACING
INSPECTION
Disassemble the cylinder head (page 10-14
).
Clean the intake and exhaust valves thoroughly to
remove carbon deposits.
Apply a light coat
of Prussian Blue to the valve seats.
Tap the valve against the valve seat several times using
a hand-lapping tool, without rotating the valve to make a
clear pattern.
Remove the valve and inspect the valve seat face.
The valve seat contact should be within the specified
width and even all around the circumference.
STANDARD:
0.90-1.10 mm (0.035- 0.043 in)
SERVICE LIMIT: 1.5 mm (0.06 in)
If the valve seat width
is not within specification, reface
the valve seat.
Inspect the valve seat face for:
• Damaged face:
- Replace the valve and reface the valve seat
• Uneven seat width:
- Bent or collapsed valve stem; Replace the valve
and reface the valve seat
Contact area too low or too high:
- Reface the valve seat
SEAT WIDTH
·.·· ... ··

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
