Honda PCX150 2014 User Manual

('13 MODEL)

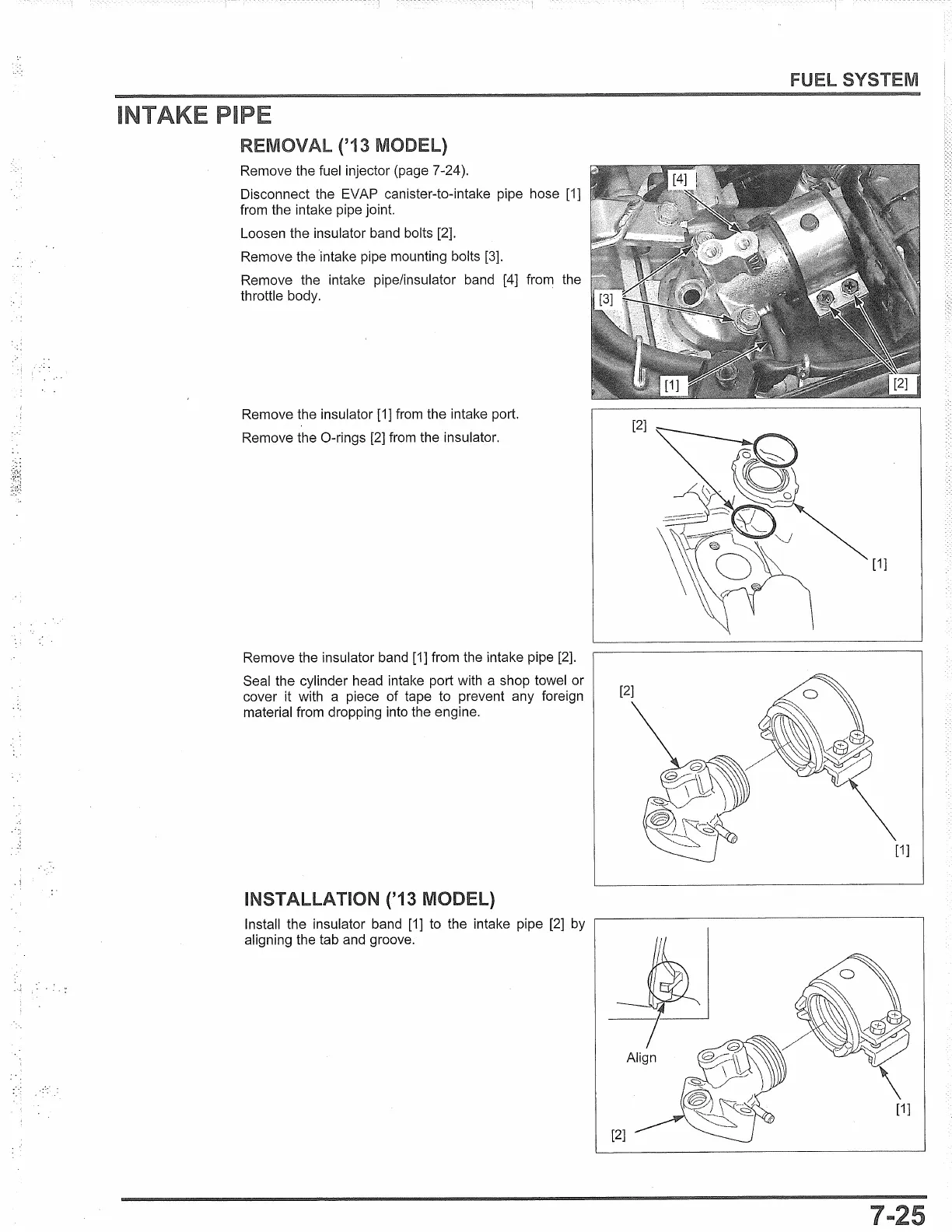

Remove the fuel injector (page 7-24
).
Disconnect the EVAP canister-to-intake pipe hose
[1]
from the intake pipe joint.
Loosen the insulator band bolts [2].
Remove the intake pipe mounting bolts
[3].
Remove the intake pipe/insulator band
[4]
from the
throttle body.
Remove the insulator
[1]
from the intake port.
Remove the 0-rings
[2]
from the insulator.
Remove the insulator
band
[1]
from the intake pipe
[2].
Seal the cylinder head intake port with a shop towel or
cover it with a piece of tape to prevent any foreign
material from dropping into the engine.
INSTALLATION ('13 MODEL)
Install the insulator band
[1]
to the intake pipe
[2]
by
aligning the tab and groove.
FUEL SYSTEM
[2]
[1]
[1]
[2]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
