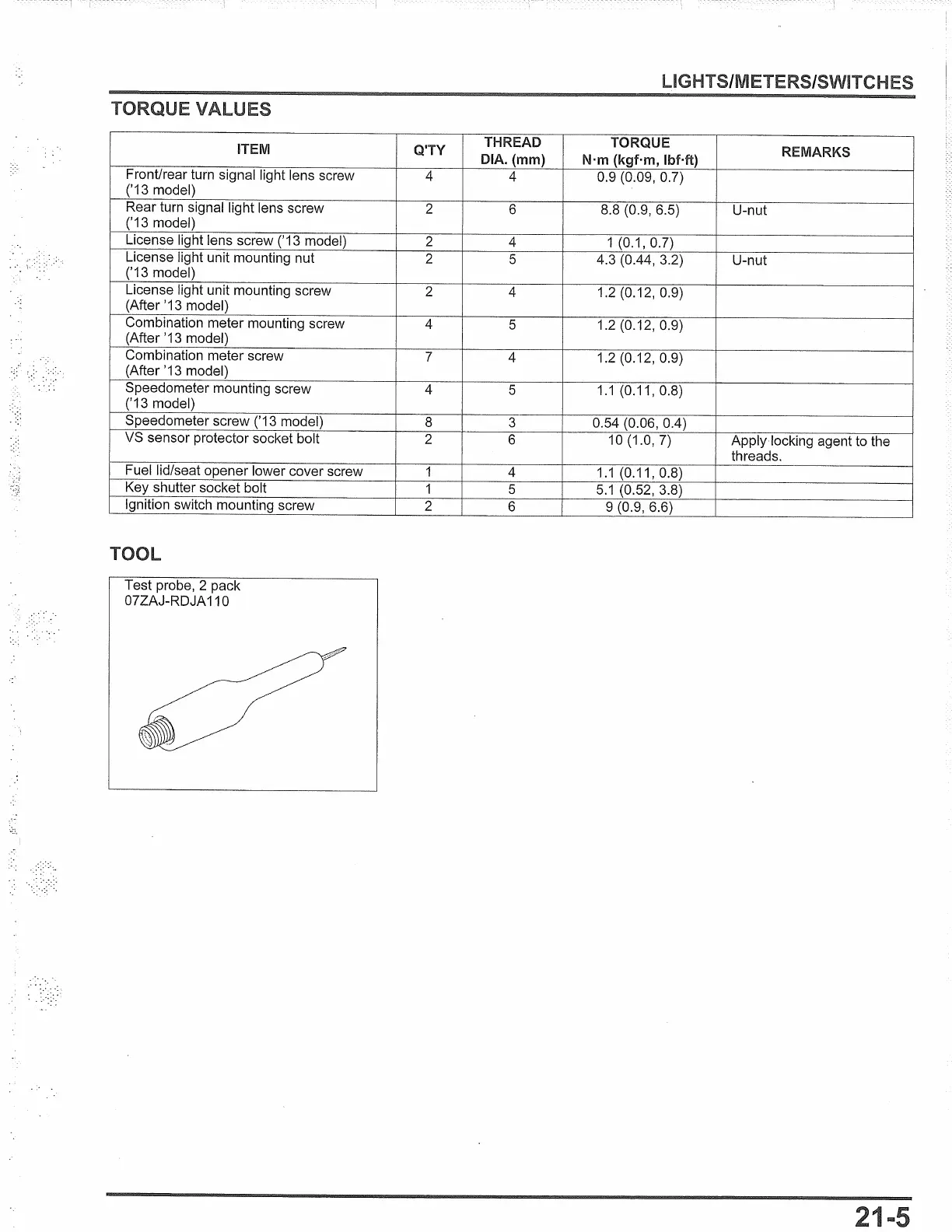

ITEM
Front/rear turn signal light lens screw
('13 model)
Rear turn signal light lens screw
('13 model)
License light lens screw
('
13
model)
License light unit mounting nut
('13 model)
License light unit mounting screw
(After '13 model)
Combination meter mounting screw
(After '13 model)
Combination meter screw
(After '13 model)
Speedometer mounting screw
('13 model)
Speedometer screw ('13 model)
VS sensor protector socket bolt
Fuel lid/seat opener lower cover screw
Key shutter socket bolt
Ignition switch mounting screw
TOOL
Test probe, 2 pack
07ZAJ-RDJA 110
Q'TY
4
2
2
2
2
4
7
4
8
2
1
1
2
LIGHTS/METERS/SWITCHES
THREAD
TORQUE
REMARKS
DIA. (mm}
N·m (kgf·m,
lbMt}
4
0.9 (0.09, 0.7)
6
8.8 (0.9, 6.5)
U-nut
4
1(0.1,0.7)
5
4.3 (0.44, 3.2)
U-nut
4
1.2 (0.12, 0.9)
5
1.2 (0.12, 0.9)
4
1.2 (0.12, 0.9)
5
1.1
(0.11, 0.8)
3
0.54 (0.06, 0.4)
6
10(1.0,7)
Apply locking agent to the
threads.
4
1.1
(0.11, 0.8)
5
5.1
(0.52, 3.8)
6
9 (0.9, 6.6)

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
