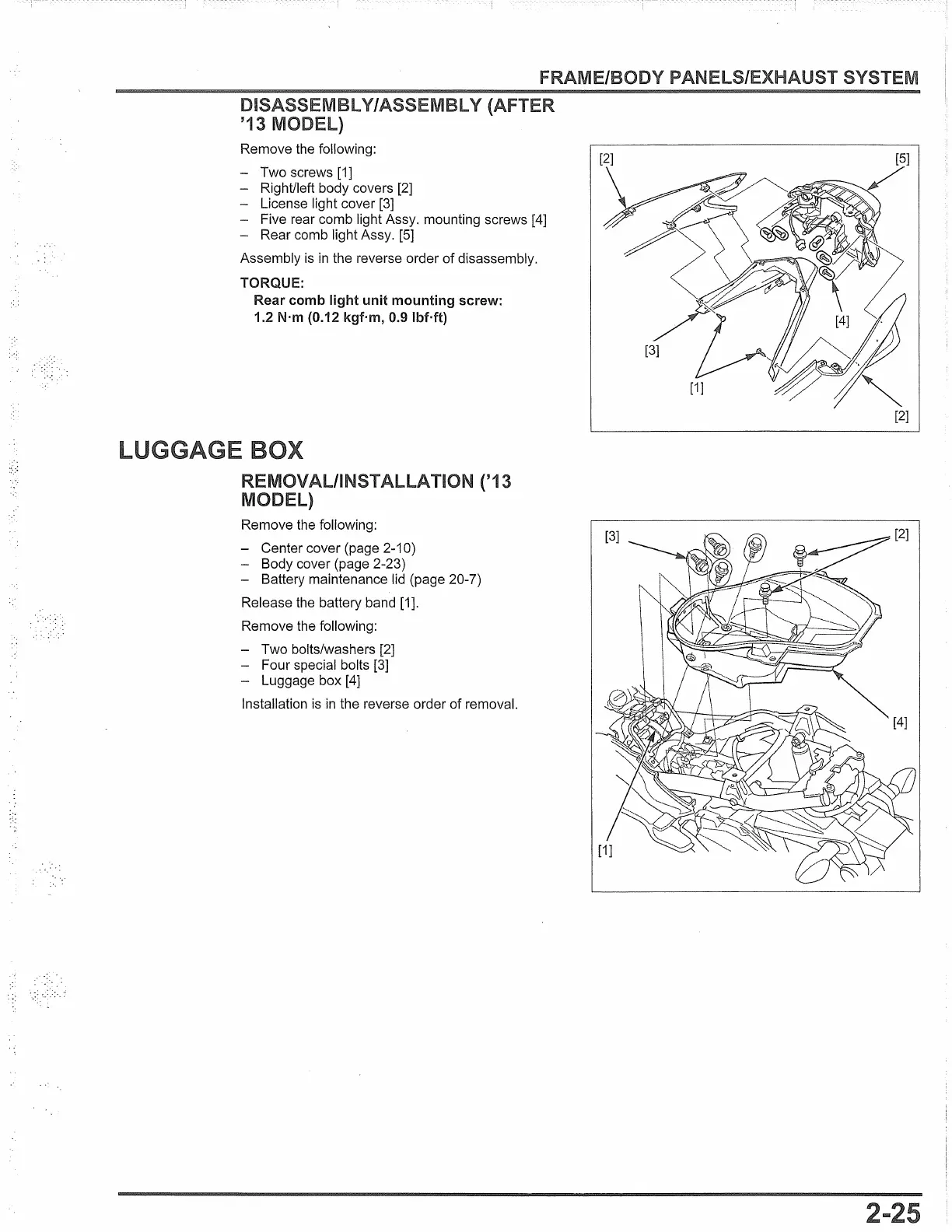

DISASSEMBLY/ASSEMBLY
'13 MODEL)
Remove the following:
- Two screws [1]
- Right/left body covers [2]
- License light cover
[3]
FRAME/BODY PANELS/EXHAUST SYSTEM
- Five rear comb light Assy. mounting screws [4]
- Rear comb light Assy. [5]
Assembly
is in the reverse order of disassembly.
TORQUE:
Rear comb light unit mounting screw:
1.2 N·m (0.12 kgf·m, 0.9
lbMt)
REMOVAL/INSTALLATION ('13
MODEL)
Remove the following:
Center cover (page 2-10)
- Body cover (page 2-23)
- Battery maintenance lid (page 20-7)
Release the battery band [1].
Remove the following:
- Two bolts/washers [2]
- Four special bolts [3]
- Luggage box [4]
Installation
is in the reverse order of removal.
[2]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
