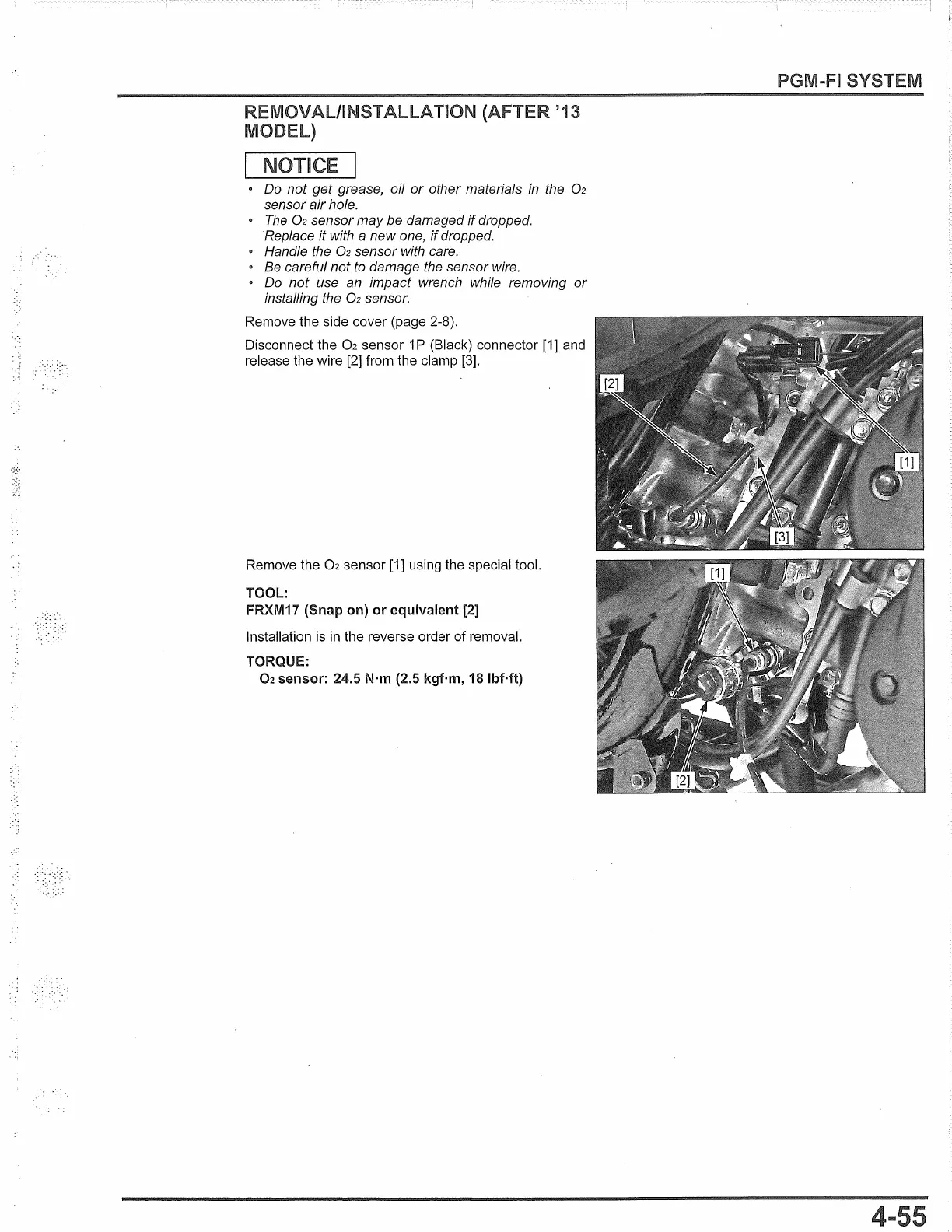

REMOVAL/INSTALLATION
MODEL)
I
NOTICE
I
'13
•
Do
not
get grease, oil
or
other materials
in
the
02
sensor
air
hole.
•
The
02
sensor may be damaged
if
dropped.
Replace it with a new one,
if
dropped.
• Handle the
02
sensor with care.
Be
careful not
to
damage the sensor wire.
•
Do
not
use an impact wrench while removing
or
installing the
02
sensor.
Remove the side
cover
(page 2-8).
Disconnect the
02
sensor
1 P (Black) connector [1] and
release the wire [2] from the clamp [3].
Remove the
02
sensor
[1] using the special tool.
TOOL:
FRXM17 (Snap on)
or
equivalent [2]
Installation is in the reverse order
of
removal.
TORQUE:
02
sensor: 24.5
N·m
(2.5 kgf·m, 18
lbMt)
PGM-FI

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
