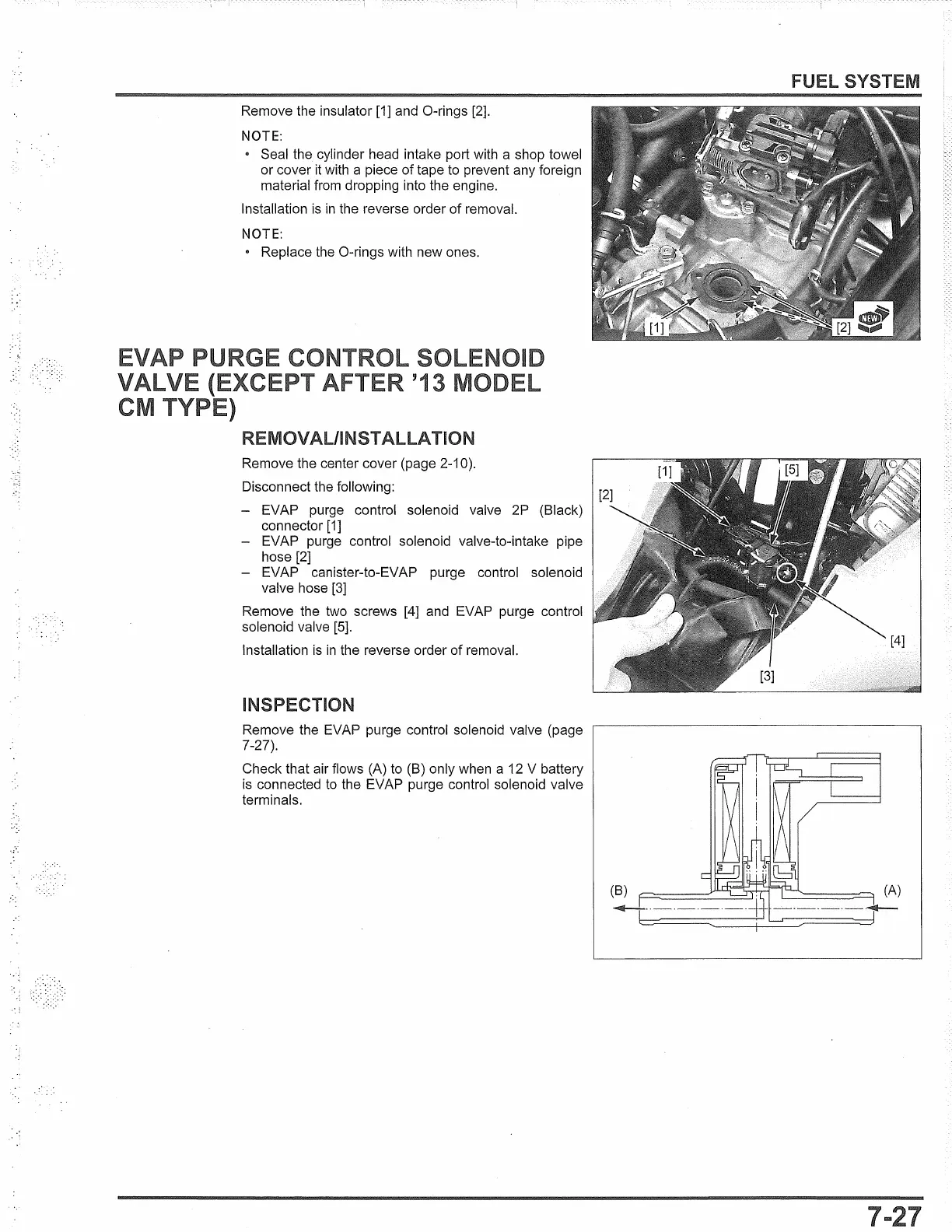

Remove the insulator [1] and 0-rings [2].
NOTE:
• Seal the cylinder head intake port with a shop towel
or cover it with a piece
of tape to prevent any foreign
material from dropping into the engine.
Installation
is in the reverse order of removal.
NOTE:
• Replace the 0-rings with new ones.
REMOVAL/INSTALLATION
Remove the center cover (page 2-10).
Disconnect the following:
- EVAP purge control solenoid valve 2P (Black)
connector
[1]
- EVAP purge control solenoid valve-to-intake pipe
hose [2]
- EVAP canister-to-EVAP purge control solenoid
valve hose [3]
Remove the two screws [4] and EVAP purge control
solenoid valve [5].
Installation
is in the reverse order of removal.
INSPECTION
Remove the EVAP purge control solenoid valve (page
7-27).
Check that air flows (A) to (B) only when a 12 V battery
is connected to the EVAP purge control solenoid valve
terminals.
(B) .
~-----------1
(A)

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
