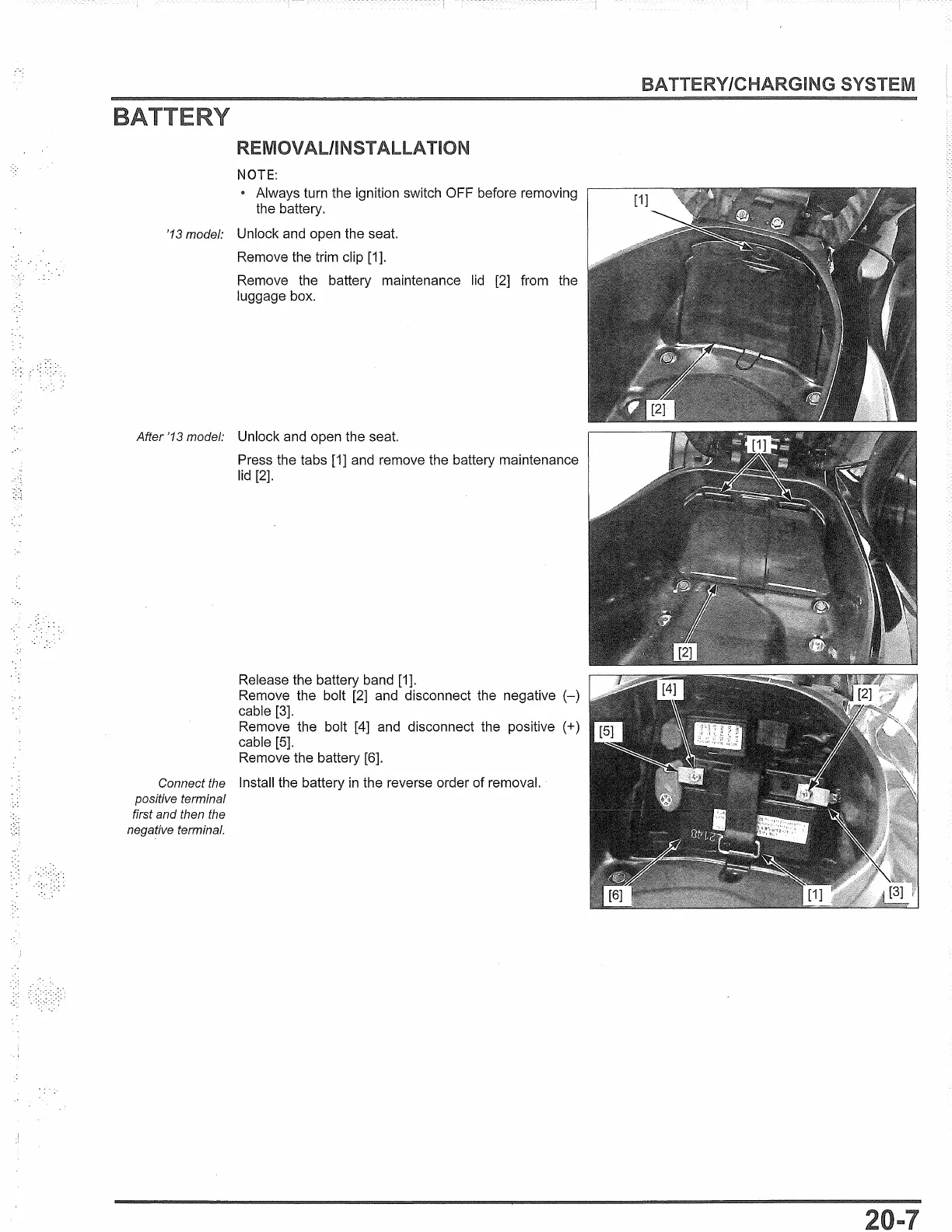

REMOVAL/INSTALLATION
NOTE:
• Always turn the ignition switch OFF before removing
the battery.
'13 model: Unlock and open the seat.
Remove the trim clip
[1].
Remove the battery maintenance lid [2] from the
luggage box.
After '13 model: Unlock and open the seat.
Press the tabs [1] and remove the battery maintenance
lid
[2].
Release the battery band [1].
Remove the bolt
[2] and disconnect the negative (-)
cable [3].
Remove the bolt [4] and disconnect the positive (+)
cable [5].
Remove the battery [6].
Connect the Install the battery in the reverse order of removal.
positive terminal
first and then the
negative terminal.

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
