Honda PCX150 2014 User Manual

INFORMATION

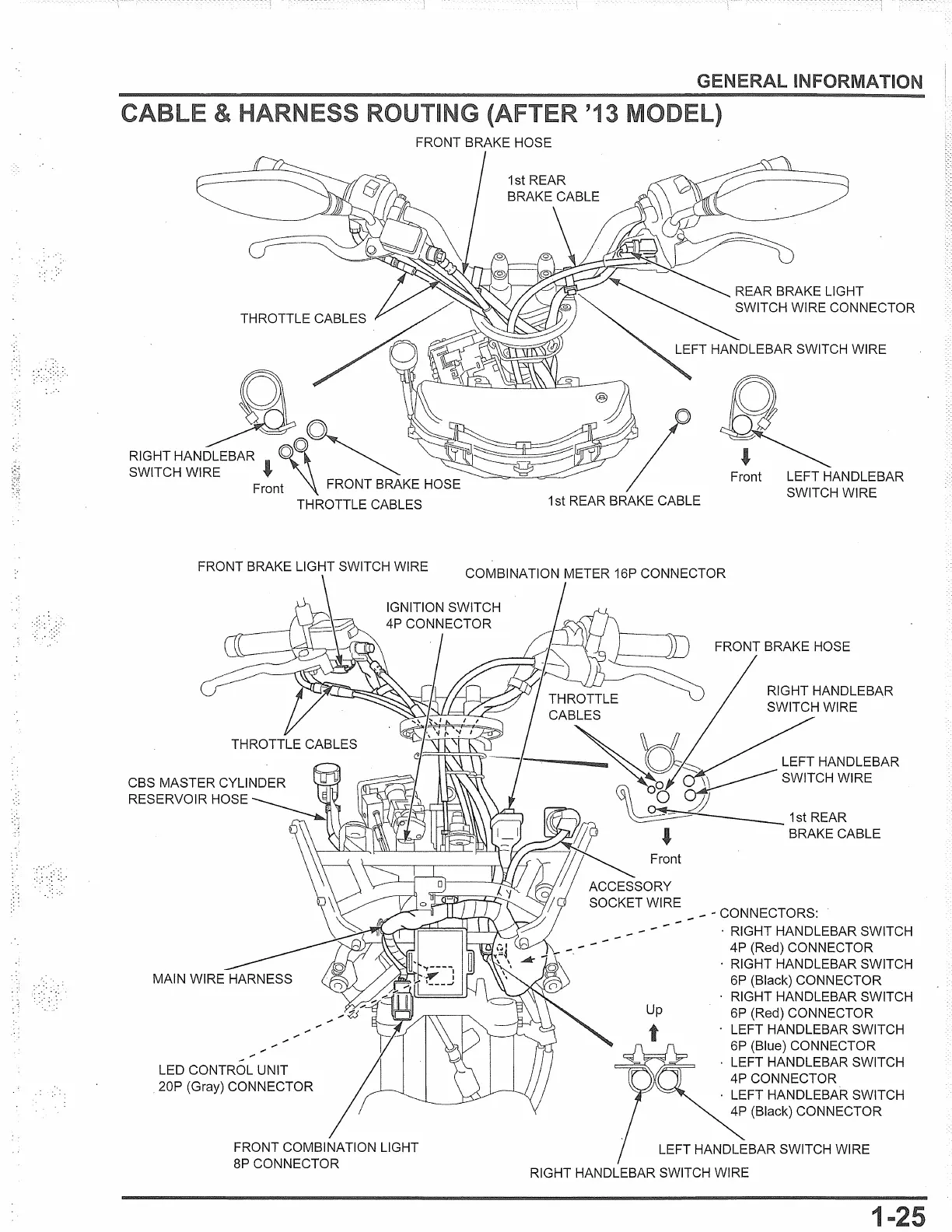

FRONT BRAKE HOSE
THROTTLE CABLES
SWITCH WIRE
.J ~
Front LEFT HANDLEBAR
SWITCH WIRE
Front FRONT BRAKE HOSE
THROTTLE CABLES
FRONT BRAKE LIGHT SWITCH WIRE
~
LED CONTROL UNIT
20P (Gray) CONNECTOR
FRONT COMBINATION LIGHT
SP CONNECTOR
1st REAR BRAKE CABLE
COMBINATION METER 16P CONNECTOR
-~~J)
~
THROTTLE
CABLES
FRONT BRAKE HOSE
1--,..._-~ ~~ LEFTHANDLEBAR
- ~ ~SWITCH WIRE
~1stREAR
fl .J BRAKE CABLE
7/ Front
I I ACCESSORY
SOCKET WIRE - - - CONNECTORS:
· RIGHT HANDLEBAR SWITCH
4P (Red) CONNECTOR
· RIGHT HANDLEBAR SWITCH
6P (Black) CONNECTOR
· RIGHT HANDLEBAR SWITCH
Up 6P (Red) CONNECTOR
t · LEFT HANDLEBAR SWITCH
6P (Blue) CONNECTOR
· LEFT HANDLEBAR SWITCH
4P CONNECTOR
· LEFT HANDLEBAR SWITCH
4P (Black) CONNECTOR
RIGHT HANDLEBAR SWITCH WIRE
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
