NOTICE
• Do not
get
grease, oil
or
other materials
in
the
02
sensor
air
hole.
•
The
02
sensor may be damaged
if
dropped. Replace
it with a
new
one,
if
dropped.

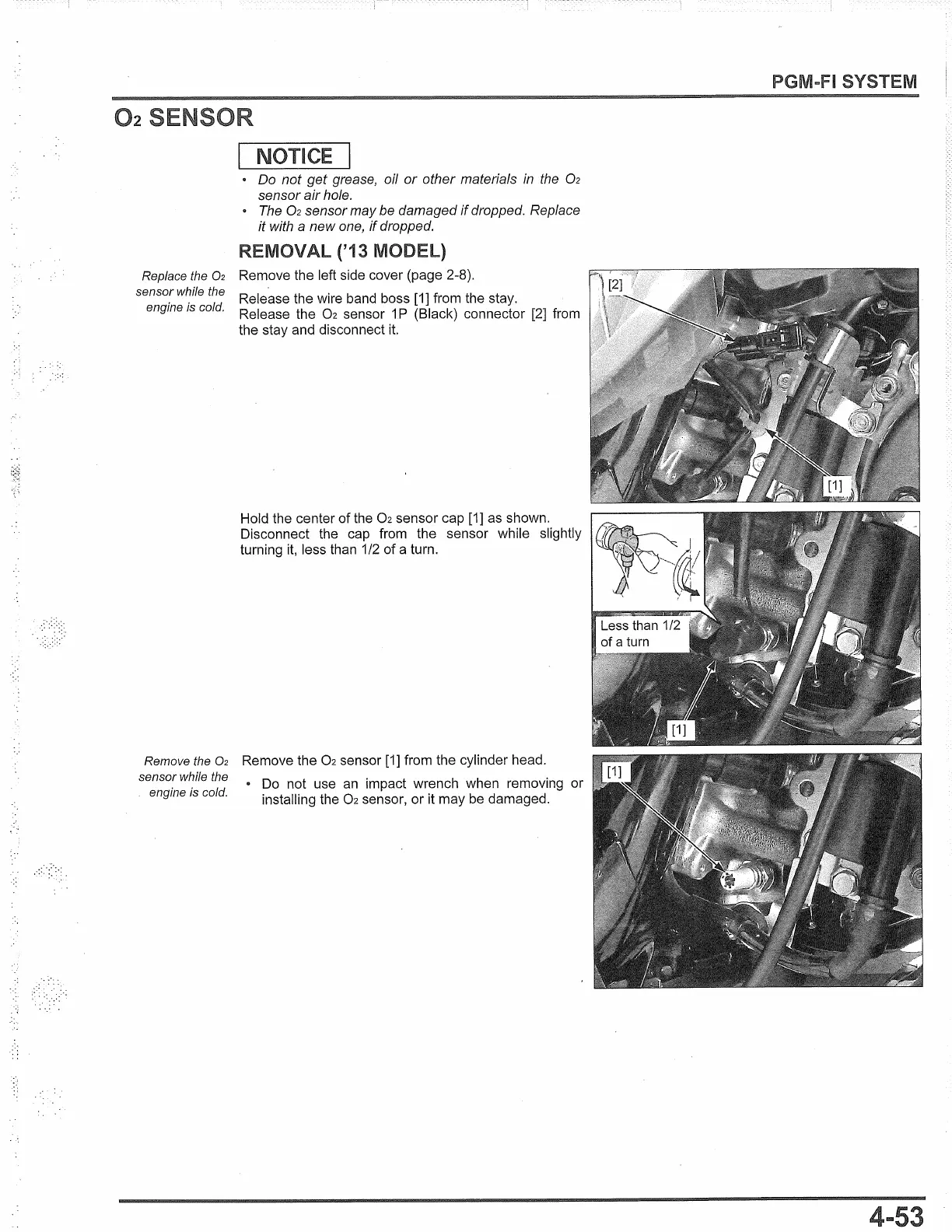

REMOVAL ('13
Replace the
02
Remove the left side cover (page 2-8).
sensor while the
Release the wire band boss
[1]
from the stay.
engine is cold.
Release the
02
sensor 1 P (Black) connector [2] from
the stay and disconnect
it.
Hold the center of the
02
sensor cap [1]
as
shown.
Disconnect the cap from the sensor while slightly
turning
it,
less than
1/2
of a turn.
Remove the
02
Remove the
02
sensor
[1]
from the cylinder head.
sensor while the
engine is cold.
•
Do
not use
an
impact wrench when removing or
installing the
02
sensor, or it may
be
damaged.
PGM-FI SYSTEM

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
