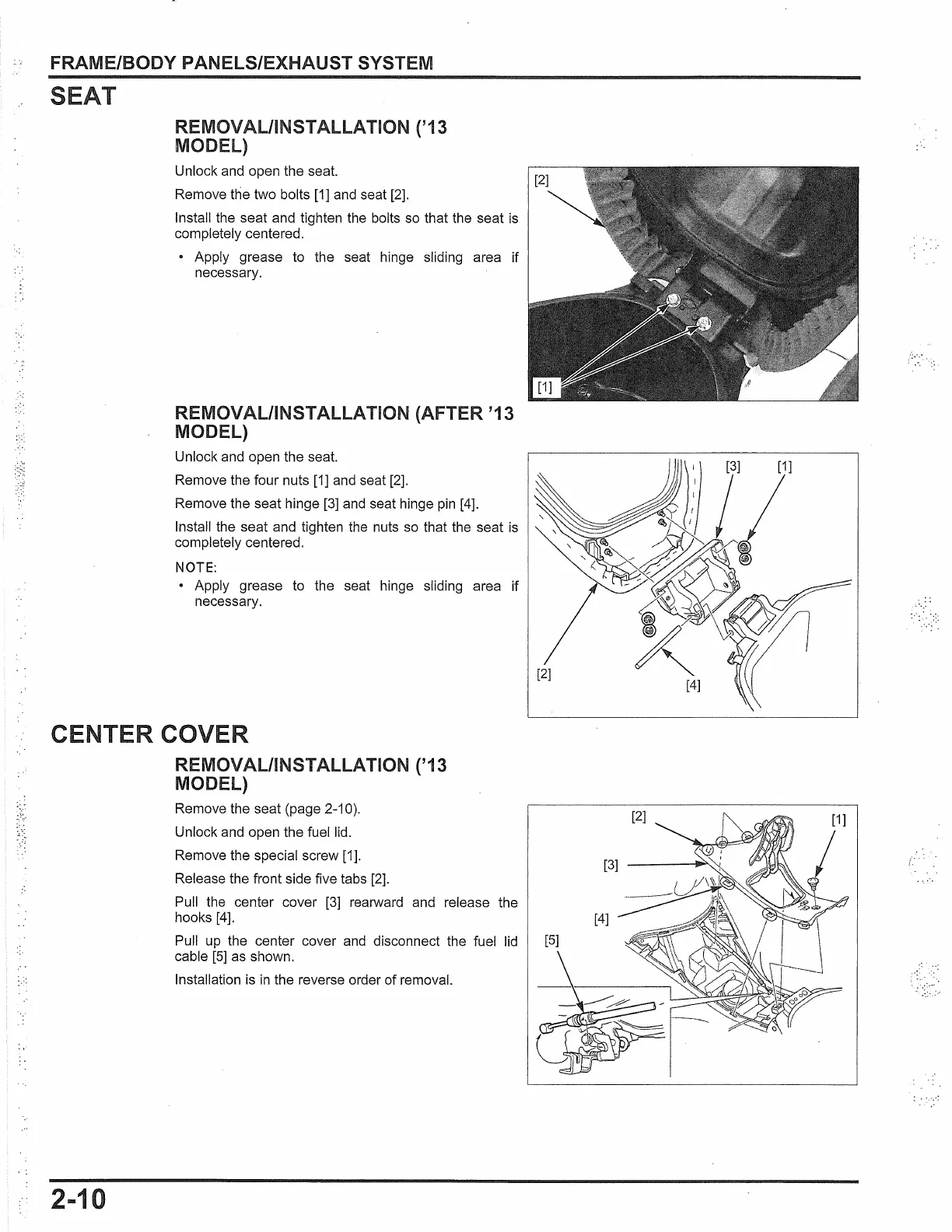

FRAME/BODY PANELS/EXHAUST SYSTEM
s
REMOVAL/INSTALLATION ('13
MODEL)
Unlock and open the seat.
Remove the two bolts
[1]
and
seat
[2].
Install the seat and tighten the bolts
so
that the seat
is
completely centered.
Apply grease to the seat hinge sliding area if
necessary.
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Unlock and open the seat.
Remove the four nuts
[1]
and
seat
[2].
Remove the seat hinge [3]
and
seat hinge
pin
[4].
Install the seat and tighten the nuts
so
that the seat
is
completely centered.
NOTE:
• Apply grease
to
the seat hinge sliding area if
necessary.
CENTER COVER
REMOVAL/INSTALLATION ('13
MODEL)
2-10
Remove the seat (page 2-10).
Unlock
and
open the fuel lid.
Remove the special screw
[1
].
Release the front side five tabs
[2].
Pull the center cover
[3]
rearward and release the
hooks
[4].
Pull
up
the center cover
and
disconnect the fuel lid
cable
[5]
as
shown.
Installation is
in
the reverse order of removal.
