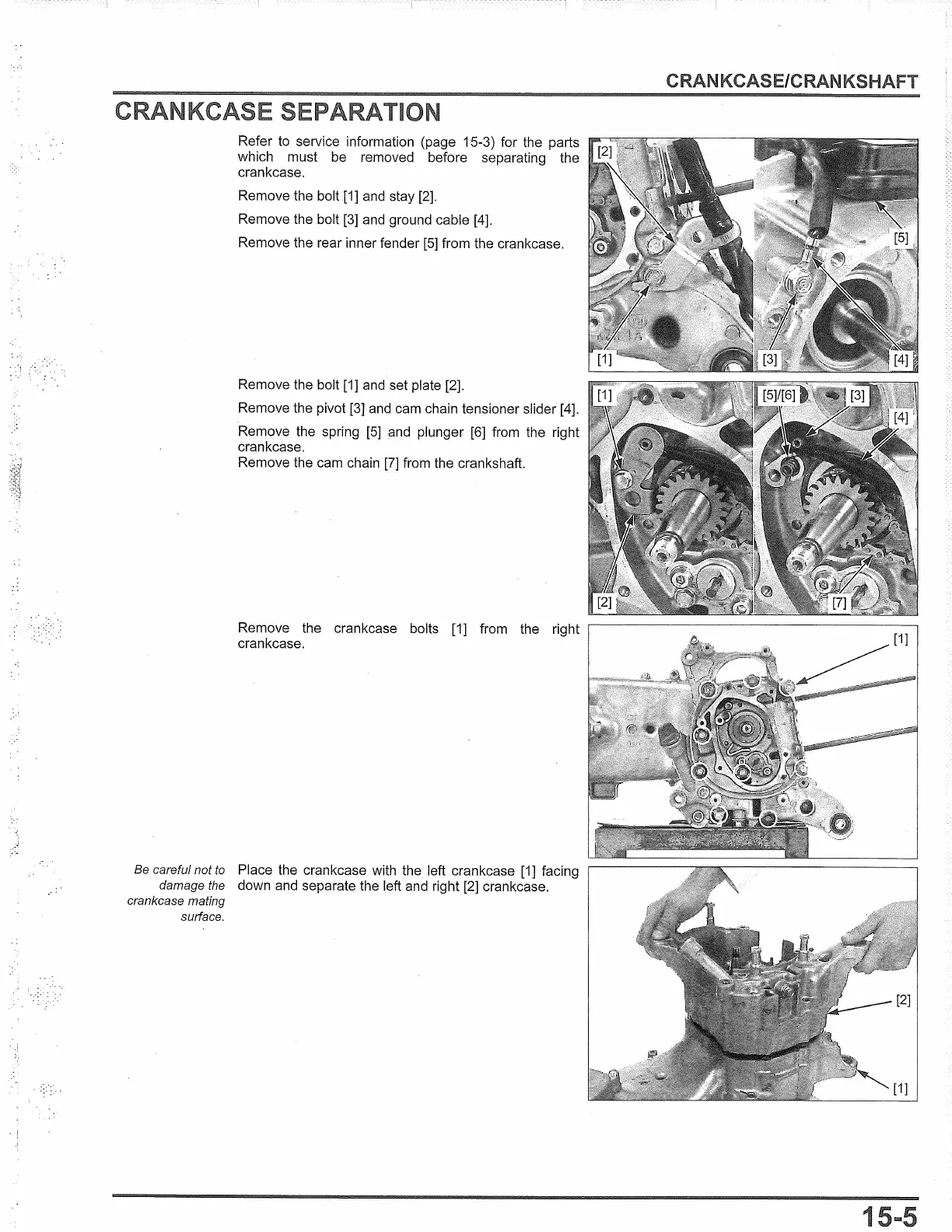

Refer
to
service information (page 15-3) for the parts
which must be removed before separating the
crankcase.
Remove the bolt
[1]
and
stay
[2].
Remove the bolt
[3]
and
ground cable [4].
Remove the rear inner fender
[5]
from the crankcase.
Remove the bolt
[1]
and
set plate [2].
Remove the pivot
[3]
and
cam chain tensioner slider [4].
Remove the spring
[5]
and
plunger
[6]
from the right
crankcase.
Remove the cam chain
[7]
from the crankshaft.
Remove the crankcase bolts [1] from the right
crankcase.
Be careful
not
to
Place the crankcase with the left crankcase
[1]
facing
damage the
down and separate the left
and
right
[2]
crankcase.
crankcase mating
surface.
CRANKCASE/CRANKSHAFT
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
