Honda PCX150 2014 User Manual

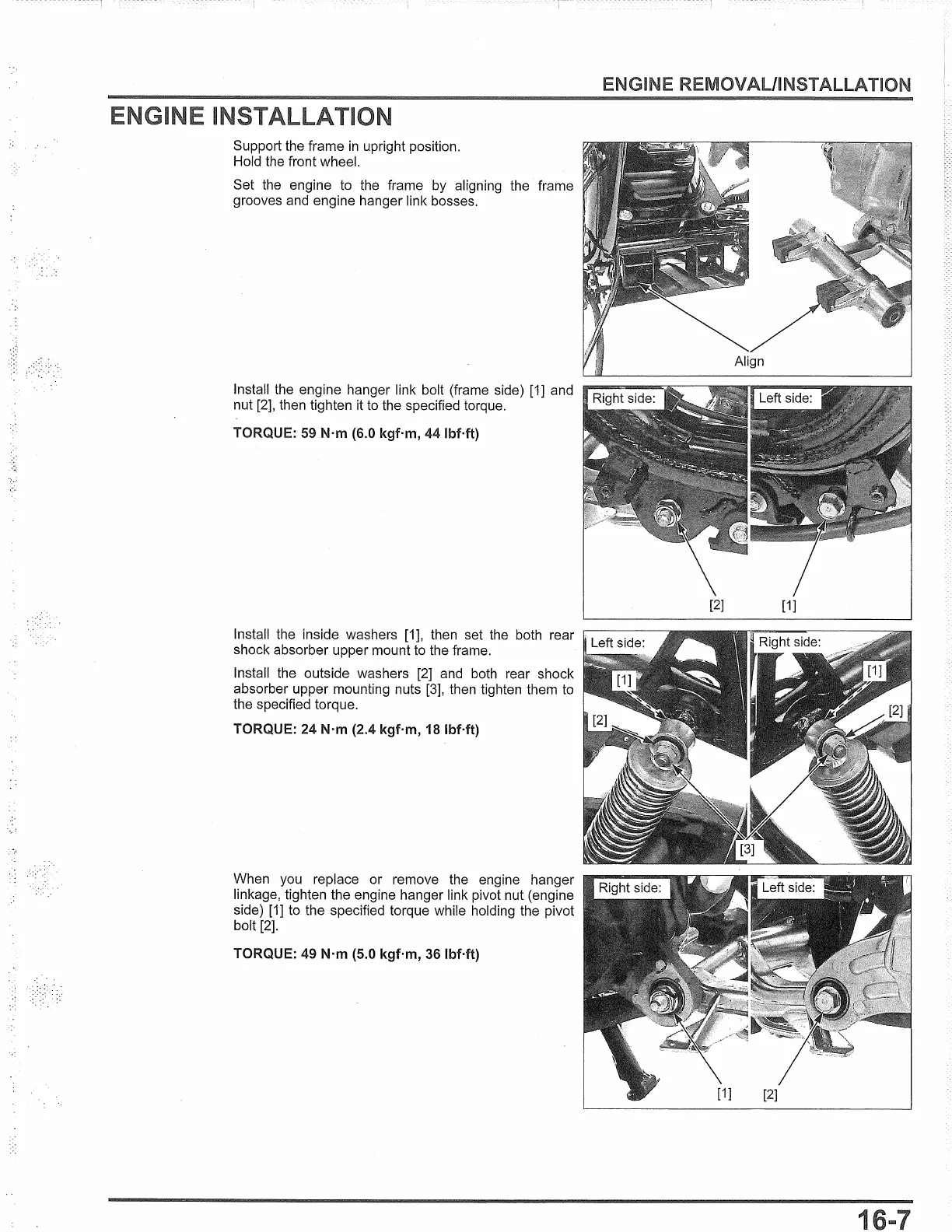

Support the frame
in
upright position.
Hold the front wheel.
Set the engine
to
the frame by aligning the frame
grooves and engine hanger link bosses.
Install the engine hanger link bolt (frame side)
[1]
and
nut
[2],
then tighten it
to
the specified torque.
TORQUE: 59 N·m (6.0 kgf·m, 44
lbHt)
Install the inside washers [1], then set the both rear
shock absorber upper mount to the frame.
Install the outside washers [2] and
both
rear shock
absorber upper mounting nuts
[3],
then tighten them
to
the specified torque.
TORQUE: 24 N·m (2.4 kgf·m, 18
lbHt)
When you replace or remove the engine hanger
linkage, tighten the engine hanger link pivot nut (engine
side)
[1]
to the specified torque while holding the pivot
bolt
[2].
TORQUE: 49 N·m (5.0 kgf·m, 36
lbHt)
ENGINE REMOVAL/INSTALLATION
[2]
[1]
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
