Honda PCX150 2014 User Manual

.~"!,

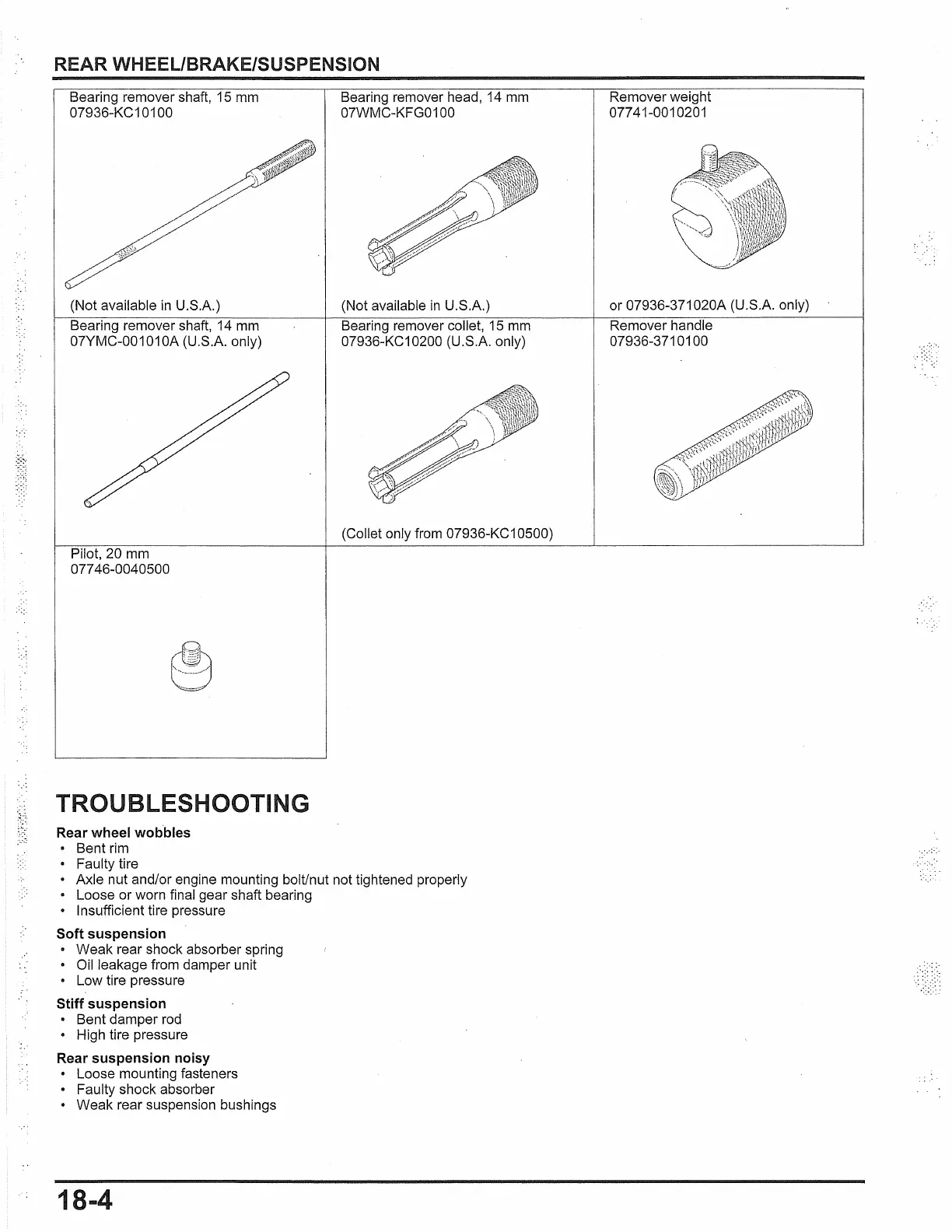

REAR WHEEL/BRAKE/SUSPENSION
Bearing remover shaft, 15 mm
07936-KC10100
(Not available
in U.S.A.)
Bearing remover shaft, 14 mm
07YMC-00101
OA (U.S.A. only)
Pilot, 20 mm
077 46-0040500
,,~']W
//
,'
TROUBLESHOOTING
Rear wheel wobbles
Bent rim
Faulty tire
Bearing remover head, 14 mm
07WMC-KFG0100
~
/~
~
C
(Not available in U.S.A.)
Bearing remover collet, 15
mm
07936-KC10200 (U.S.A. only)
(Collet only from 07936-KC10500)
• Axle nut and/or engine mounting bolt/nut not tightened properly
• Loose or worn final gear shaft bearing
• Insufficient tire pressure
Soft suspension
• Weak rear shock absorber spring
• Oil leakage from damper unit
• Low tire pressure
Stiff suspension
• Bent damper rod
• High tire pressure
Rear suspension noisy
Loose mounting fasteners
• Faulty shock absorber
• Weak rear suspension bushings
18-4
Remover weight
07741-0010201
or 07936-371020A (U.S.A. only)
Remover handle
07936-3710100

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
