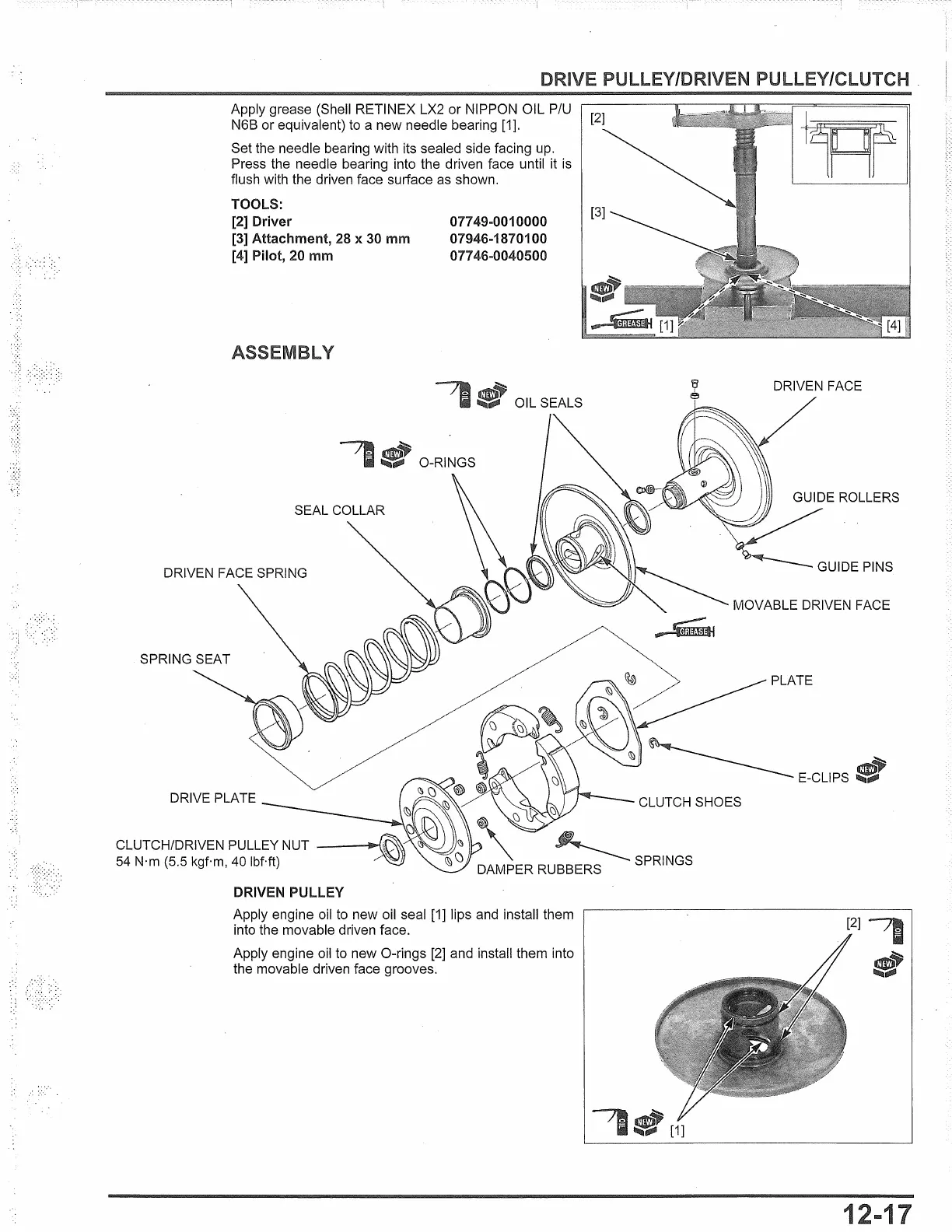

Apply grease (Shell RETINEX LX2 or NIPPON OIL P/U
N6B or equivalent) to a new needle bearing [1].
Set the needle bearing with its sealed side facing up.
Press the needle bearing into the driven face until it
is
flush with the driven face surface as shown.
TOOLS:
[2] Driver
[3] Attachment, 28 x 30
mm
[4] Pilot, 20 mm
ASSEMBLY
SEAL COLLAR
DRIVEN PULLEY
077 49-0010000
07946-1870100
077 46-0040500
Apply engine oil to new oil seal [1] lips and install them
into the movable driven face.
Apply engine oil
to new 0-rings [2] and install them into
the movable driven face grooves.
DRIVEN FACE
MOVABLE DRIVEN FACE
CLUTCH SHOES
~
S [1]
PLATE
[2]
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
