Honda PCX150 2014 User Manual

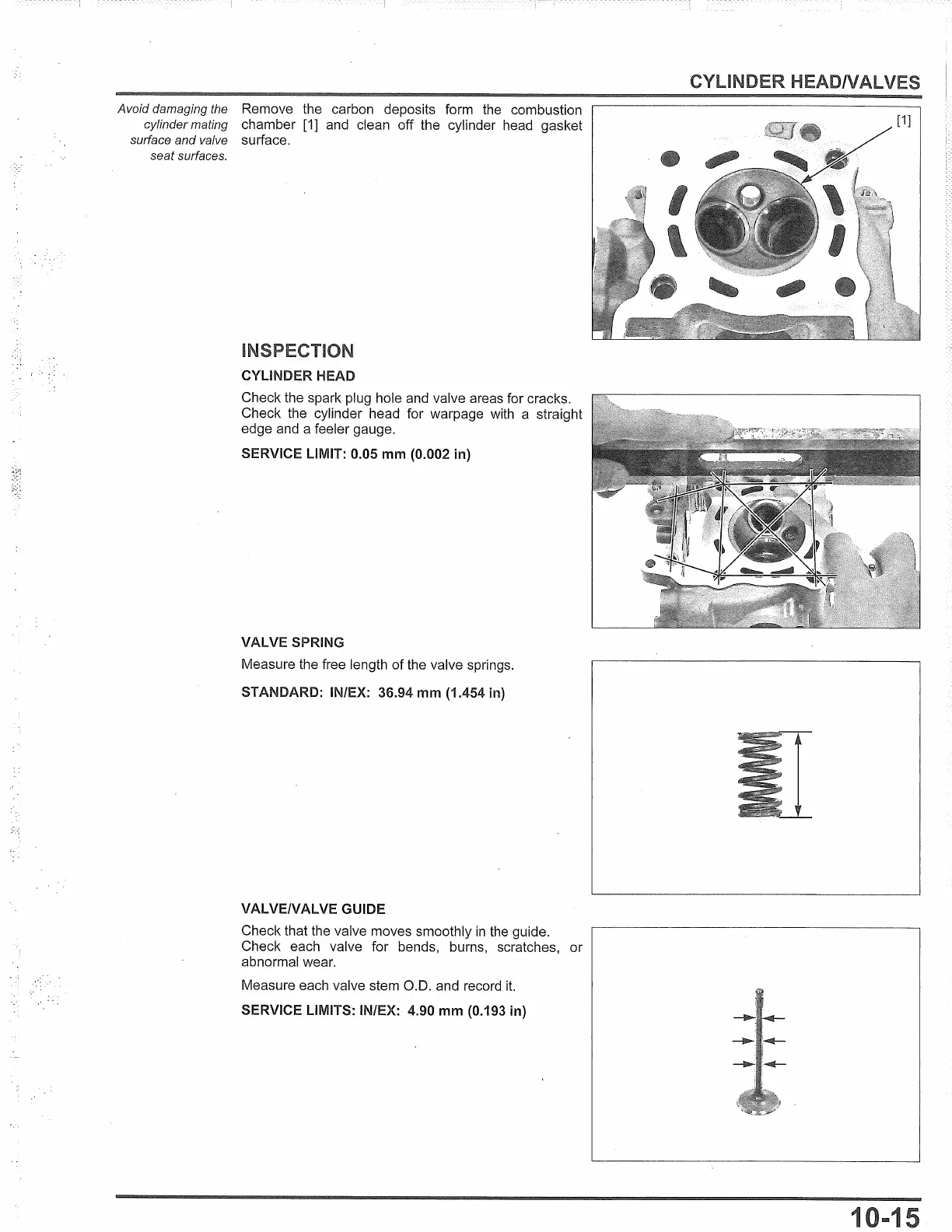

Avoid damaging the
Remove the carbon deposits form
the
combustion
cylinder mating
chamber
[1]
and clean off the cylinder head gasket
surface and valve
surface.
seat surfaces.
INSPECTION
CYLINDER HEAD
Check the spark plug hole and valve areas for cracks.
Check the cylinder head for warpage
with
a straight
edge
and
a feeler gauge.
SERVICE LIMIT: 0.05 mm (0.002 in)
VALVE SPRING
Measure the free length of the valve springs.
STANDARD: IN/EX: 36.94 mm (1.454 in)
VALVE/VALVE GUIDE
Check that the valve moves smoothly
in
the
guide.
Check each valve for bends, burns, scratches, or
abnormal wear.
Measure each valve stem O.D. and record
it.
SERVICE LIMITS: IN/EX: 4.90 mm (0.193 in)
CYLINDER HEADNALVES
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
