Honda PCX150 2014 User Manual

GEN
INFORMATION
ENGINE
MATERIAL
LOCATION
REMARKS

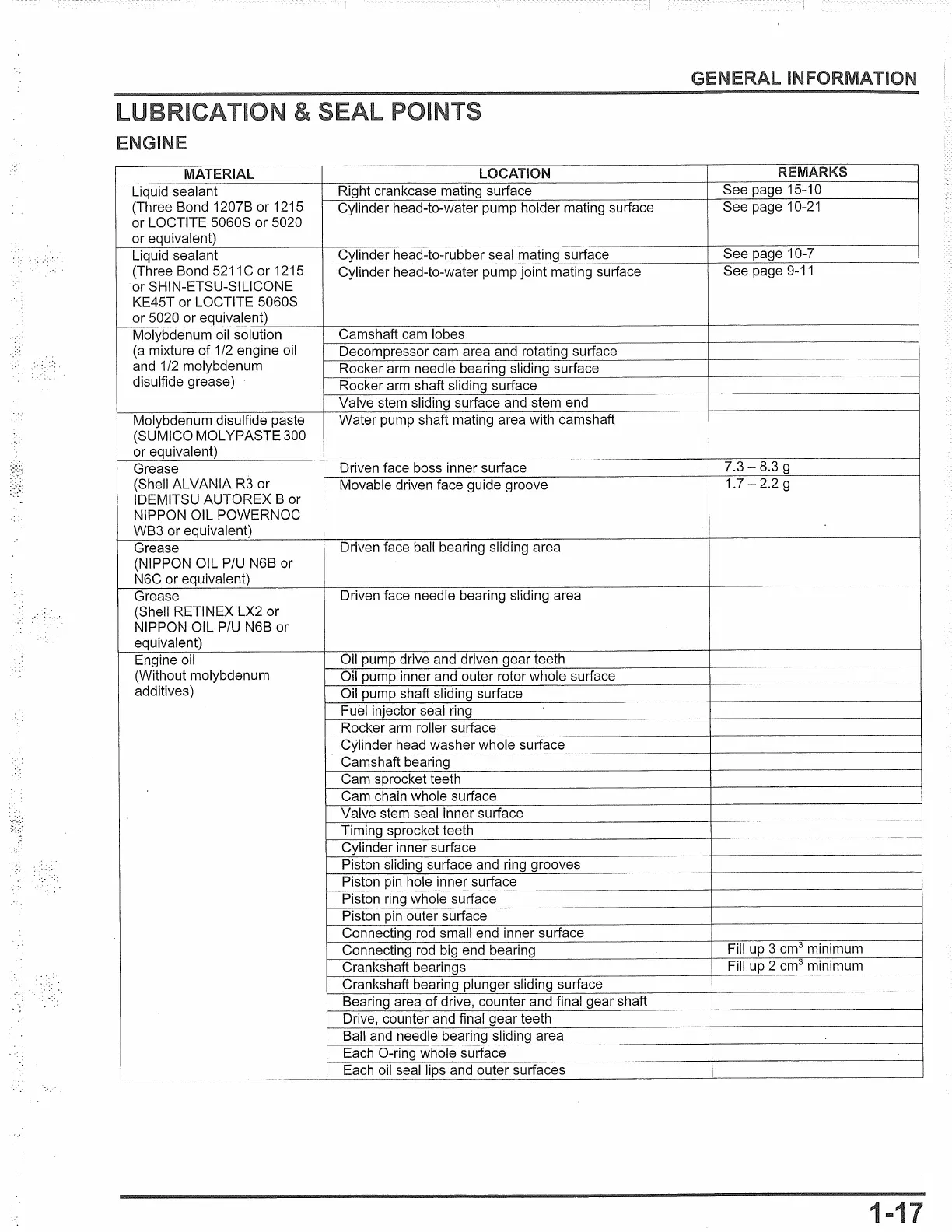

Liquid sealant
Right crankcase mating surface See page 15-10
(Three Bond 1207B or 1215
or
LOCTITE 5060S or 5020
Cylinder head-to-water pump holder mating surface
See page 10-21
or equivalent)
Liquid sealant
Cylinder head-to-rubber seal mating surface
See page 1 0-7
(Three Bond 5211C or 1215
or SHIN-ETSU-SILICONE
Cylinder head-to-water pump joint mating surface See page
9-11
KE45T or LOCTITE 5060S
or 5020 or equivalent)
Molybdenum oil solution Camshaft cam lobes
(a
mixture of 1/2 engine
oil
Decompressor cam area and rotating surface
and 1/2 molybdenum
Rocker arm needle bearing sliding surface
disulfide grease)
Rocker arm shaft sliding surface
Valve stem sliding surface and stem end
Molybdenum disulfide paste
Water pump shaft mating area with camshaft
(SUMICO MOL YPASTE 300
or equivalent)
Grease
Driven face boss inner surface
7.3-8.3
g
(Shell ALVANIA
R3
or
Movable driven face guide groove
1.7-2.2g
IDEMITSU AUTOREX B or
NIPPON OIL POWERNOC
WB3 or equivalent)
Grease
Driven face ball bearing sliding area
(NIPPON OIL P/U N6B or
N6C or equivalent)
Grease
Driven face needle bearing sliding area
(Shell RETINEX LX2
or
NIPPON OIL P/U N6B or
equivalent)
Engine oil
Oil pump drive and driven gear teeth
(Without molybdenum
Oil pump inner and outer rotor whole surface
additives)
Oil pump shaft sliding surface
Fuel injector seal ring
Rocker arm roller surface
Cylinder head washer whole surface
Camshaft bearing
Cam sprocket teeth
Cam chain whole surface
Valve stem seal inner surface
Timing sprocket teeth
Cylinder inner surface
Piston sliding surface and ring grooves
Piston pin hole inner surface
Piston ring whole surface
Piston pin outer surface
Connecting rod small end inner surface
Connecting rod big end bearing
Fill up 3
cm
3
minimum
Crankshaft bearings
Fill up 2
cm
3
minimum
Crankshaft bearing plunger sliding surface
Bearing area of drive, counter and final gear shaft
Drive, counter and final gear teeth
Ball and needle bearing sliding area
Each 0-ring whole surface
Each oil seal lips and outer surfaces
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
