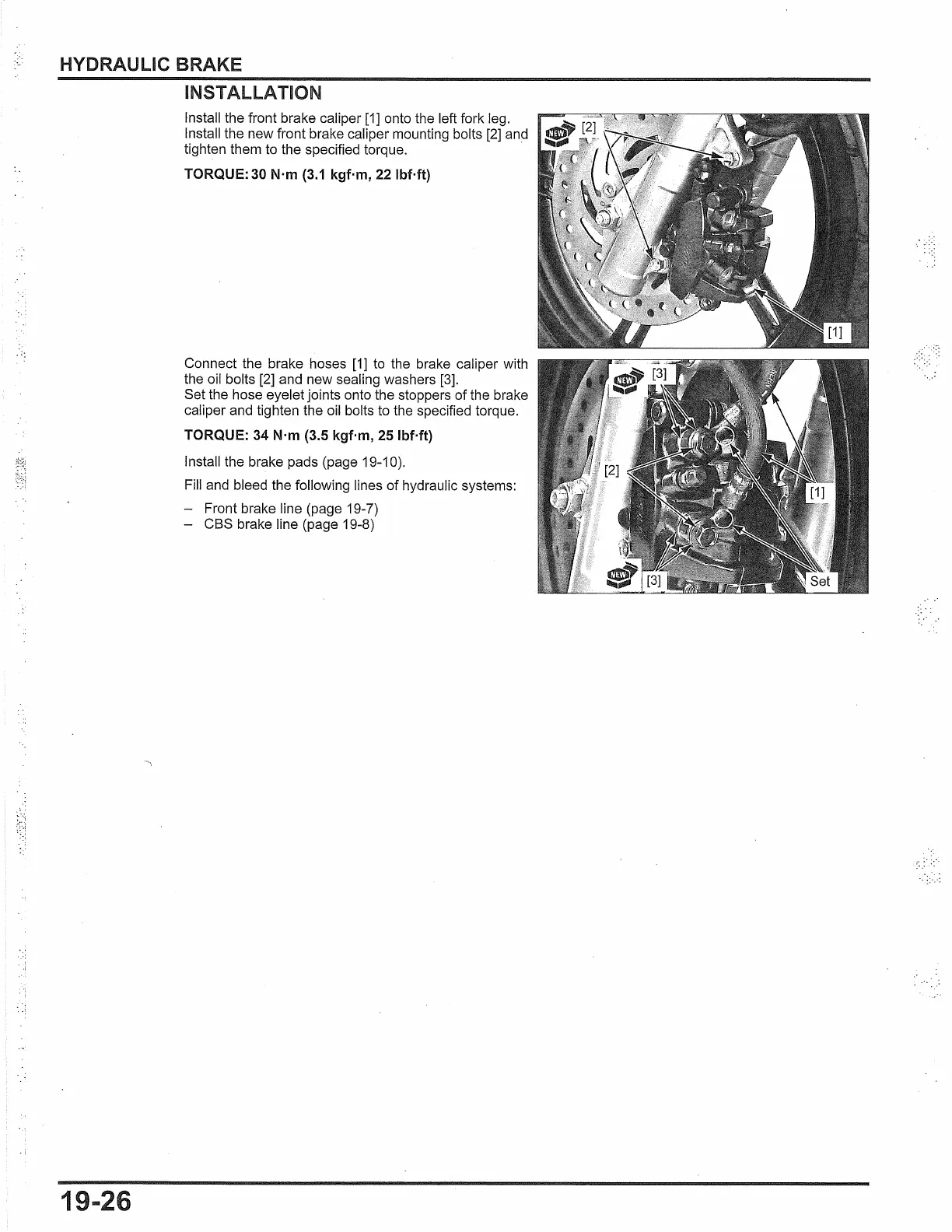

HYDRAULIC BRAKE
19-26
INSTALLATION
Install the front brake caliper
[1]
onto the left fork leg.
Install the new front brake caliper mounting bolts
[2]
and
tighten them to the specified torque. ·
TORQUE:30 N·m
(3.1
kgf·m, 22 lbMt)
Connect the brake hoses [1] to the brake caliper with
the oil bolts [2] and new sealing washers [3].
Set the hose eyelet joints onto the stoppers of the brake
caliper and tighten the oil bolts to the specified torque.
TORQUE: 34 N·m (3.5 kgf·m, 25 lbMt)
Install the brake pads (page 19-10).
Fill and bleed the following lines
of
hydraulic systems:
- Front brake line (page 19-7)
- CBS brake line (page 19-8)

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
